HKS 80330-AM001 Hipermax S Coilover Kit Mitsubishi Lancer Evolution X CZ4A

Vehicle Fitment

• 2007-2015 Mitsubishi Lancer Evolution X (CZ4A; 4B11 2.0L Turbo I4; AWD) - Full Kit (Front & Rear)

Fitment Notes

• Production date range: October 2007 (07/10) through September 2015 (15/09) - covers the full CZ4A production run
• Fits turbocharged (4B11 Turbo) CZ4A models only
• This is the standard rubber front upper mount version - for the front pillow ball camber-adjustable upper mount variant, see part 80330-AM001P
• Front upper mount: Rubber Bush; Rear upper mount: Rubber Bush; rear damping adjustment is accessible via wire
• Front damper layout: Inverted; Rear damper layout: Normal
• This item ships via UPS or FedEx only - standard ground freight is not available
• Sold as a complete front and rear coilover kit (4 corners)

Features

• Inverted front damper layout reduces unsprung weight and increases lateral rigidity for improved steering feel and cornering stability
• Single-tube (monotube) damper construction separates gas and oil for consistent, heat-stable damping across sustained hard use
• HKS Flat Ride Concept (FRC) tuning suppresses low-speed harshness while maintaining planted, controlled body behavior during spirited driving
• 30-step damping adjustment via Wide Range (WR) Needle - front and rear tunable without disassembly; rear accessible via wire
• Dual Preload Valve System (Dual PVS) reduces unnecessary high-speed damping force for improved ride comfort without compromising sport response
• Rear helper spring (19.8 N/mm) prevents spring float at full droop and improves low-speed packing behavior
• Strengthened rubber upper mounts absorb small chassis vibrations while tightening mount response over stock
• Length-adjustable shock body allows lowering without spring preload, preserving full suspension travel
• DURA BOOTS and PNE corrosion-coated threads for long-term durability
• Manufactured in Japan to HKS specifications; 3-year / 60,000 km warranty coverage

Specifications

• HKS Part Number: 80330-AM001 (supersedes 80300-AM001)
• Compatible Vehicle: Mitsubishi Lancer Evolution X (CZ4A)
• Compatible Engine: 4B11 (2.0L Turbocharged Inline-4)
• Spring Rate - Front: 98 N/mm (10.0 kgf/mm)
• Spring Rate - Rear: 69 N/mm (7.0 kgf/mm)
• Free Length - Front: 220 mm (Barrel Type)
• Free Length - Rear: 220 mm (Barrel Type)
• Recommended Spring Rate Change Range - Front/Rear: -20 N/mm (-2 kgf/mm)
• Damping Force (Front) at 0.1 m/sec - Extension/Compression: 898 N / 481 N
• Damping Force (Rear) at 0.1 m/sec - Extension/Compression: 677 N / 348 N
• Damping Force Adjustment: 30 steps (Front & Rear); Rear wire-adjustable
• Default Dial Position: Front 15 / Rear 15
• Helper Spring (Rear): 19.8 N/mm
• Upper Mount - Front: Rubber Bush
• Upper Mount - Rear: Rubber Bush
• Front Damper Layout: Inverted
• Rear Damper Layout: Normal
• Ride Height at Shipment - Front: -36 mm (range: -19 mm to -60 mm)
• Ride Height at Shipment - Rear: -19 mm (range: 0 mm to -57 mm)
• Country of Origin: Japan
• Warranty: 3 Years / 60,000 km

Included Components

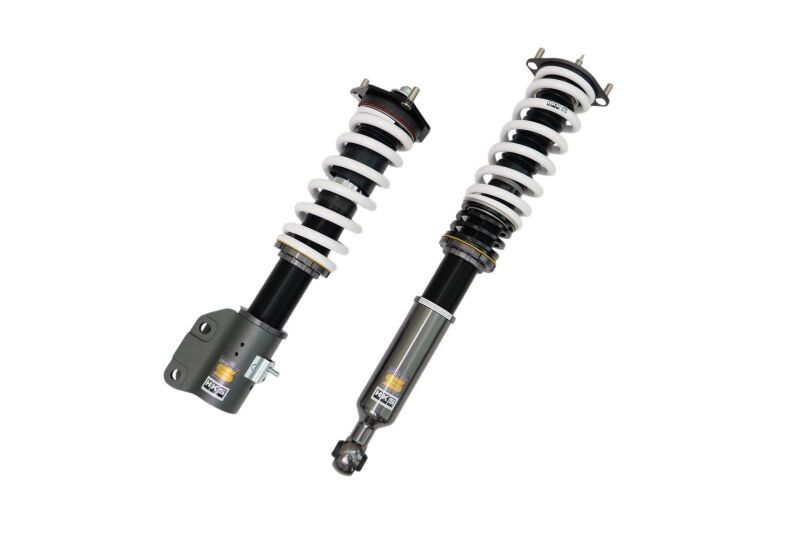

• 2x Front HKS Hipermax S Inverted Coilover Assemblies with Rubber Bush Upper Mounts (Left & Right)
• 2x Rear HKS Hipermax S Coilover Assemblies with Rubber Bush Upper Mounts (Left & Right)
• Rear helper spring (19.8 N/mm)
• Rear damping adjustment wire
• Hardware and adjustment tools as supplied by HKS

Product Description

The HKS 80330-AM001 Hipermax S is a complete front and rear coilover kit for the 2007-2015 Mitsubishi Lancer Evolution X (CZ4A) featuring reinforced rubber front upper mounts for a balance of performance and street compliance. Using the same inverted front damper design, monotube construction, Flat Ride Concept (FRC) tuning, and Dual Preload Valve System (Dual PVS) as the pillow ball variant, this kit delivers genuine performance handling from the CZ4A's AWD platform while allowing the strengthened rubber upper mounts to filter small chassis vibrations for improved daily comfort. Front spring rates of 98 N/mm and rear rates of 69 N/mm are calibrated for the Evo X's performance character, with a 19.8 N/mm rear helper spring maintaining damper contact through the full suspension travel range.

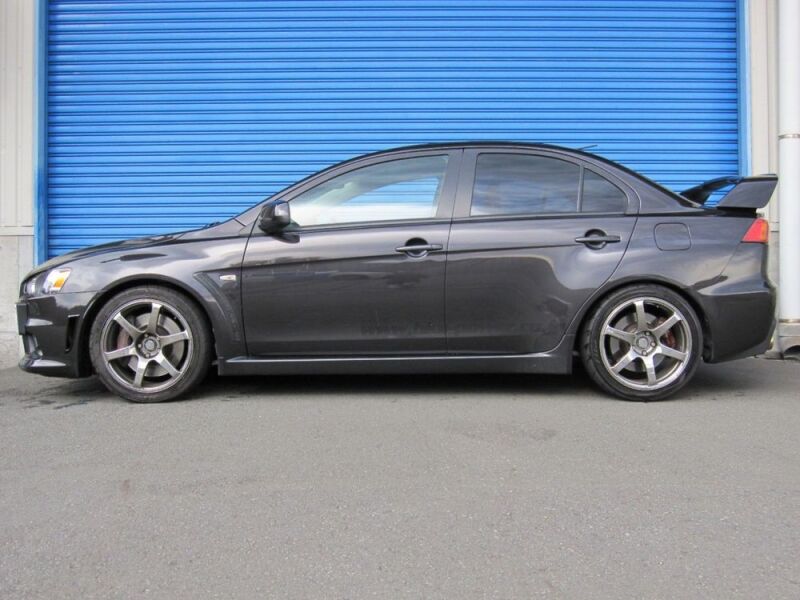

Ride height at shipment is -36 mm front and -19 mm rear, with front adjustability down to -60 mm and rear down to -57 mm from stock ride height. The 30-step WR Needle damping adjustment is accessible at both ends without disassembly, with rear fine-tuning available via the included wire adjuster. Drivers prioritizing camber tuning capability or the most direct steering feedback should consider the pillow ball upper mount variant, 80330-AM001P. This kit supersedes part number 80300-AM001, ships via UPS or FedEx only, and is backed by HKS's 3-year / 60,000 km manufacturer warranty.
