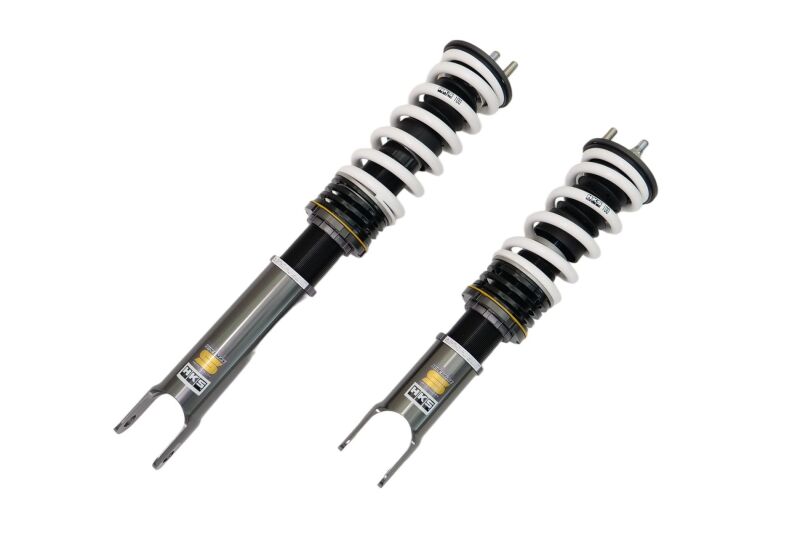

HKS 80330-AH001 Hipermax S Lowering Coilovers for 1999-2009 Honda S2000 AP1 AP2

Vehicle Fitment

• 1999-2005 Honda S2000 (AP1 Platform, F20C 2.0L I4, RWD)
• 2005-2009 Honda S2000 (AP2 Platform, F22C 2.2L I4, RWD)

Fitment Notes

• AP1 fitment covers production from April 1999 through October 2005
• AP2 fitment covers production from November 2005 through September 2009
• Both AP1 and AP2 use the same part number - no separate SKU required per chassis
• Upper mounts are rubber bush (front and rear) - this is not the pillow ball variant

Features

• Single-tube monotube damper with separated gas and oil chambers for stable, consistent damping force
• 30-step damping force adjustment on front and rear for street-to-track tuning flexibility
• Dual Preload Valve System (Dual PVS) suppresses unnecessary high-speed damping force for improved ride comfort
• Inverted front strut layout reduces unsprung weight and increases lateral rigidity under cornering loads
• Wide-range needle jet expands the effective damping adjustment range across all 30 steps
• Advanced bump stop rubber reduces body roll while maintaining compliance over road impacts
• PNE coating delivers 5x corrosion resistance compared to standard galvanizing
• 3-year manufacturer warranty with factory spring rate change and overhaul service available

Specifications

• Spring Rate - Front: 98 N/mm (10 kgf/mm) | Rear: 98 N/mm (10 kgf/mm)
• Free Length - Front: 200 mm | Rear: 200 mm
• Damping Force at 0.1m/sec - Front: Rebound 1535 N / Compression 407 N
• Damping Force at 0.1m/sec - Rear: Rebound 898 N / Compression 329 N
• Damping Adjustment - Front: 30 Steps | Rear: 30 Steps
• Upper Mount - Front: Rubber Bush | Rear: Rubber Bush
• Damper Layout - Front: Inverted | Rear: Normal
• Ride Height Range - Front: 0 to -77 mm | Rear: 0 to -53 mm
• Default Ride Height at Shipment - Front: -29 mm | Rear: -28 mm
• Factory Spring Rate Change Available: ±20 N/mm (±2 kgf/mm) Front & Rear

Included Components

• 2x Front Inverted Coilover Assemblies (with rubber upper mount)
• 2x Rear Coilover Assemblies (with rubber upper mount)
• 1x Spanner Wrench Set
• 1x Damper Adjustment Tool

Product Description

The HKS Hipermax S Coilovers (80330-AH001) are purpose-built for the Honda S2000 AP1 and AP2, replacing HKS's long-running Max IV GT series with updated damping technology and improved durability. The kit ships pre-assembled with a mild factory drop and 30-step adjustment dials, making it easy to install and immediately drive without requiring corner balancing out of the box. The front and rear spring rate is set at a firm 98 N/mm (10 kgf/mm) - well matched to the S2000's lightweight chassis and rear-wheel-drive dynamics - providing strong body control without sacrificing street usability.

The Dual Preload Valve System keeps high-speed damping smooth and predictable, while the inverted front monotube design reduces unsprung weight for sharper turn-in response. The ride height range is generous, with up to 77mm of front drop and 53mm rear, giving drivers the flexibility to achieve a lowered street stance or a more aggressive track setup. Rubber upper mounts on both ends balance noise isolation with adequate feedback for spirited driving on both road and circuit.
