HKS 80310-AT007 HIPERMAX R Coilovers for 2022-2026 Toyota GR Corolla G16E-GTS

Vehicle Fitment

• 2022-2026 Toyota GR Corolla (GZEA14H Platform, 1.6L I3 Turbo G16E-GTS, AWD)

Features

• HKS HIPERMAX R high-performance adjustable coilover suspension
• Single-tube inverted design for enhanced handling and stability
• 30-level adjustable damping front and rear for precision tuning
• Shock-body length adjustable for ride height customization

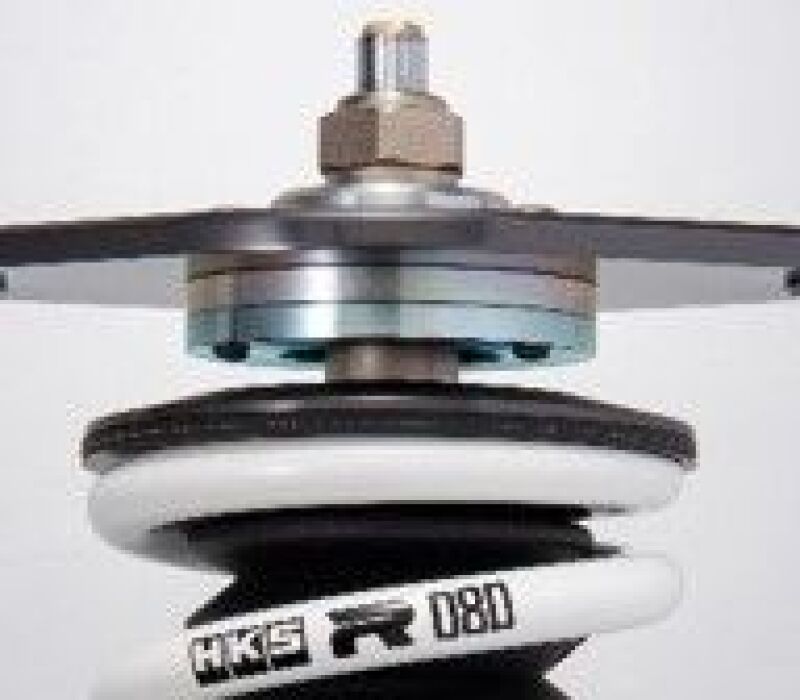

• Pillowball upper mounts improve steering feedback and control
• Front camber adjustment mechanism accessible from wheel arch

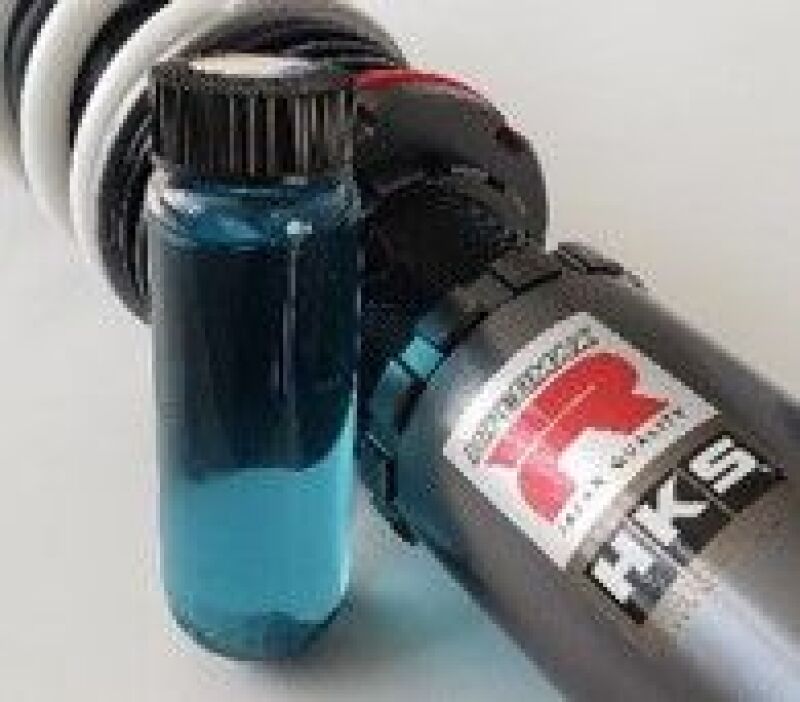

• Super Response Fluid (SRF) for consistent damper performance
• Low Vibration Springs and PNE coating for durability and reduced NVH

Specifications

• Part Number: 80310-AT007
• Product Type: HIPERMAX R Adjustable Coilover Kit
• Fitment Years: 2022-2026 Toyota GR Corolla AWD
• Applicable Engine: 1.6L I3 Turbo (G16E-GTS)
• Drive: All-Wheel Drive (AWD)
• Damping Adjustment: 30 manual levels
• Front Spring Rate: ~137 N/mm (~14 kg/mm)
• Rear Spring Rate: ~196 N/mm (~20 kg/mm)
• Height Adjustment Range: Front approx. -19 mm to -37 mm; Rear approx. 0 mm to -79 mm
• Upper Mount Type: Pillowball on front & rear

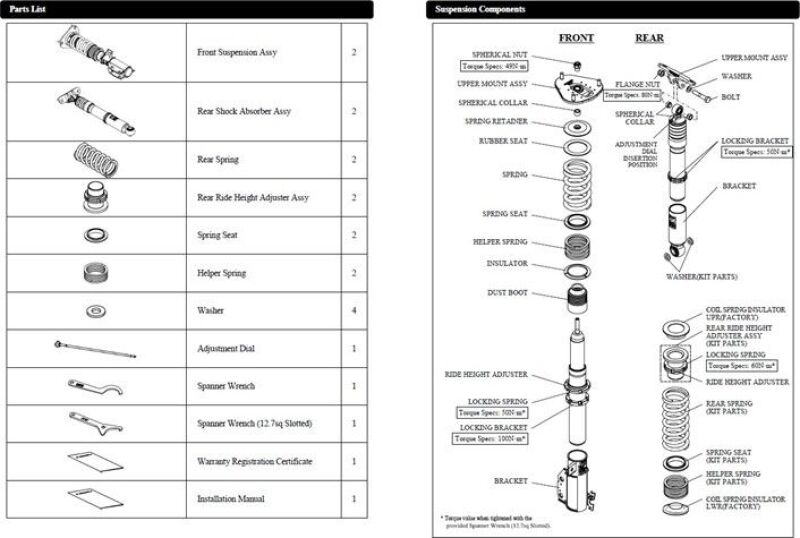

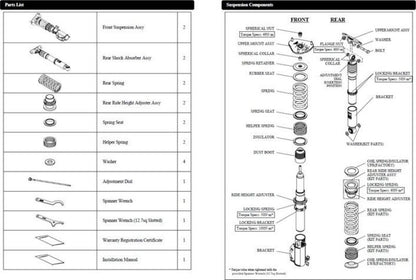

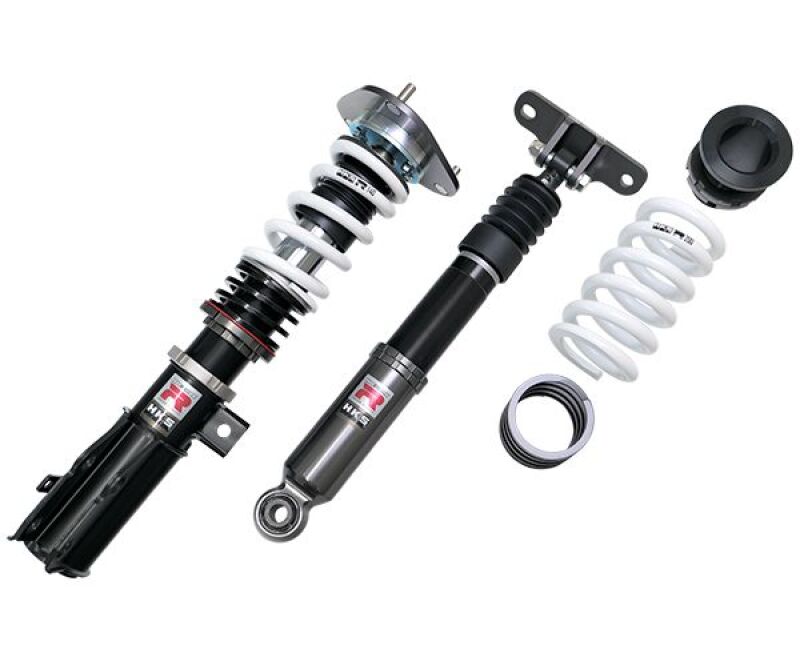

Included Components

• 2x Front coilover assemblies
• 2x Rear coilover assemblies
• Height adjusters and lower mounting brackets
• Helper springs and bump rubbers
• Installation hardware and adjustment tools

Product Description

The HKS 80310-AT007 HIPERMAX R Coilovers are engineered specifically for the Toyota GR Corolla equipped with the turbocharged 1.6 L G16E-GTS engine and all-wheel drive (AWD), covering model years 2022 through 2026. As part of HKS's premium R-series suspension lineup, this coilover kit delivers a track-oriented performance upgrade that enhances handling precision, overall ride control, and driver engagement while retaining usable comfort for spirited street driving. The single-tube inverted damper design and pillowball upper mounts provide exceptional responsiveness, allowing for confident cornering and chassis control.

Featuring 30 levels of adjustable damping and shock-body length adjustment, the 80310-AT007 lets you fine-tune both ride quality and vehicle stance according to driving style and conditions. Higher spring rates and robust construction reduce body roll and improve high-speed stability, while the camber adjustment mechanism and reinforced components make setup more flexible for performance driving. Ideal for enthusiastic drivers who want both street-friendly refinement and enhanced track capability, these coilovers elevate the GR Corolla's chassis performance to match the car's sporty potential.
