HKS 51999-AT005 D-Shape Replacement Steering Wheel Toyota GR Corolla GR Yaris

Vehicle Fitment

• 2020+ Toyota GR Yaris (GXPA16, G16E-GTS) - All variants
• 2022+ Toyota GR Corolla (GZEA14H, G16E-GTS) - All variants (Core, Circuit Edition, Morizo Edition)

Fitment Notes

• Genuine OEM airbag module, horn button, and steering wheel controls are NOT included. OEM parts can be relocated from the factory steering wheel to this unit - relocation is required for airbag function and horn operation.
• Tie rod adjustment may be required after installation due to the reduced steering wheel diameter compared to the OEM unit.
• Professional installation is strongly recommended. Installation requires disabling the SRS airbag system and careful relocation of airbag and electrical components - improper installation can result in airbag deployment or system faults.
• This is a made-to-order, limited availability product. Lead times and purchase windows vary - confirm current availability before ordering.
• Made in Taiwan.

Features

• D-shaped steering wheel profile - flat bottom section improves driver clearance and entry/exit in a performance seating position, and provides a motorsport-inspired aesthetic suited to the GR Corolla and GR Yaris performance character.
• HKS logo embroidered in oil color on the center mark with a three-dimensional texture for immediate orientation reference and brand identity.
• High-quality cowhide leather outer wrap - soft to the touch, comfortable in hand, and slip-resistant under spirited and performance driving conditions.
• Perforated leather on the thumb grip (gun grip) sections - enhanced tactile grip and sweat absorption for improved control during aggressive driving.
• Oil color cross-stitch throughout for a consistent, motorsport-inspired visual finish.
• Lightweight, high-rigidity frame - reduces rotational mass for improved steering response and quicker lock-to-lock input.
• OEM-compatible mounting - retains factory hub interface and allows full relocation of OEM airbag module, horn, and steering wheel controls from the original wheel.
• Smaller diameter (348mm H x 355mm W) than the OEM steering wheel - improves steering precision and reduces effort for performance driving.

Specifications

• Part Number: 51999-AT005
• Type: D-Shape Replacement Steering Wheel
• Shape: D-Shape (flat bottom)
• Height (A): 348mm
• Width (B): 355mm
• Dish Depth (C): 30mm
• Material: Smooth cowhide leather + perforated cowhide leather (gun grip)
• Color: Black
• Center Mark: Oil color HKS logo (embroidery)
• Stitch: Oil color (cross)
• Frame: Lightweight high-rigidity
• Airbag Compatible: Yes - OEM airbag can be relocated
• Manufacture: Made in Taiwan
• OEM Parts Included: No
• Availability: Made to Order - limited purchase windows

Included Components

• 1x HKS D-Shape Replacement Steering Wheel (51999-AT005)

Product Description

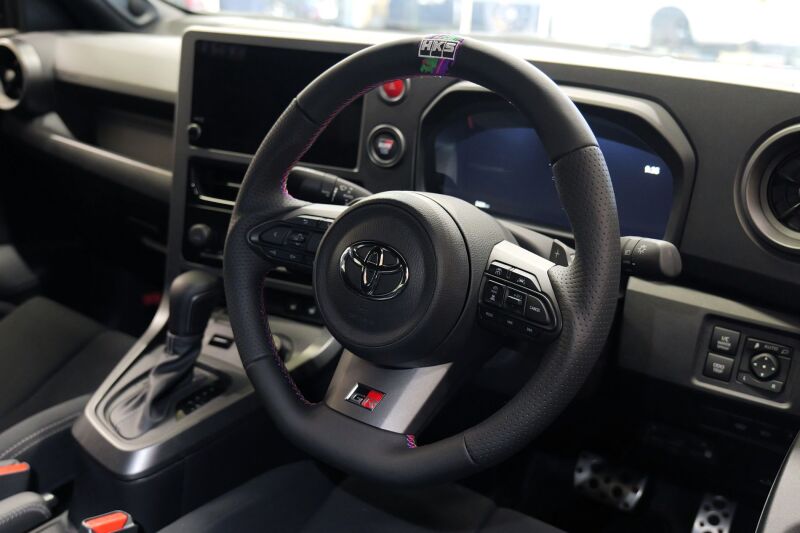

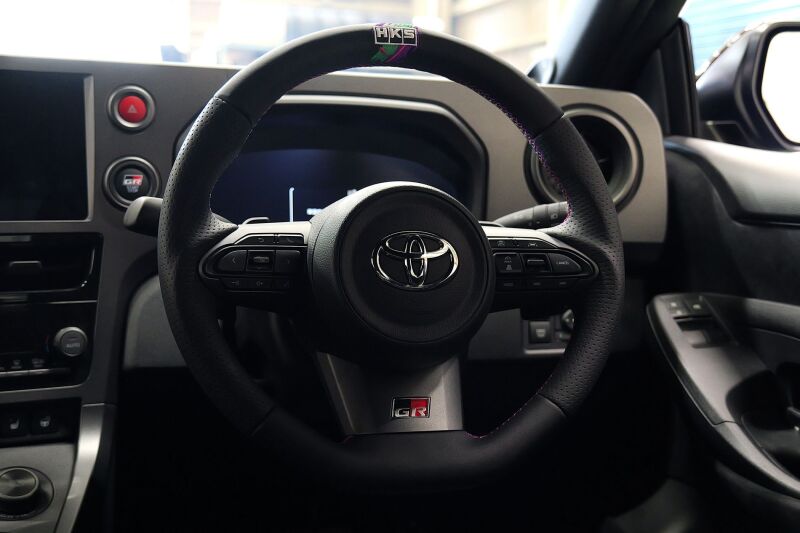

The HKS 51999-AT005 is a D-shaped replacement steering wheel designed for the Toyota GR Corolla (GZEA14H) and Toyota GR Yaris (GXPA16) - two of the most driver-focused hot hatch platforms on the market. The D-shape profile with flat bottom section improves driver clearance in a performance seating position and provides a motorsport-inspired aesthetic that suits the aggressive character of both vehicles. The reduced diameter (348mm x 355mm) over the OEM unit delivers quicker, more precise steering inputs and a more connected driving feel.

Construction follows the same specification as other wheels in HKS's replacement steering range: high-quality cowhide leather outer wrap with perforated leather at the thumb grip positions, oil color cross-stitching, and a three-dimensional embroidered HKS logo at the center mark. The lightweight, high-rigidity internal frame enables the smaller size while maintaining structural integrity. OEM airbag, horn, and steering column controls can be relocated from the factory wheel to this unit - genuine parts are not included and professional installation is required. Tie rod adjustment may be necessary following installation. This is a made-to-order product with limited availability windows - confirm stock and lead time before ordering.
