HKS 27002-AN104 DCT Fluid Cooler Kit Black for 2012-2016 Nissan GT-R R35 GR6

Vehicle Fitment

• 2012-2016 Nissan GT-R (DBA-R35, AWD, VR38DETT 3.8L Twin-Turbo V6, GR6 Dual Clutch Transmission)

Fitment Notes

• This kit (27002-AN104) is designed exclusively for the DBA-R35 chassis (2012-2016 model years) - it is not confirmed for 2017 and later GT-R production years
• For 2007-2011 CBA-R35 GT-R (earlier production), refer to HKS 27002-AN102 or 27002-AN103 - those kits are designed for the CBA chassis year range and differ in piping and attachment configuration
• Installation requires modification of the front bumper inner air ducts
• Washer pump harness extension (0.5SQ x 250mm, x2 wires) is required but not included
• An additional 2 liters of Nissan GT-R GR6 transmission (MT) oil is required for installation and is not included in the kit
• After installation, washer fluid reservoir capacity is reduced to approximately 1 liter (from the factory 1.5 liters); the washer fluid level sensor must be removed and the low-washer warning light will not function

Features

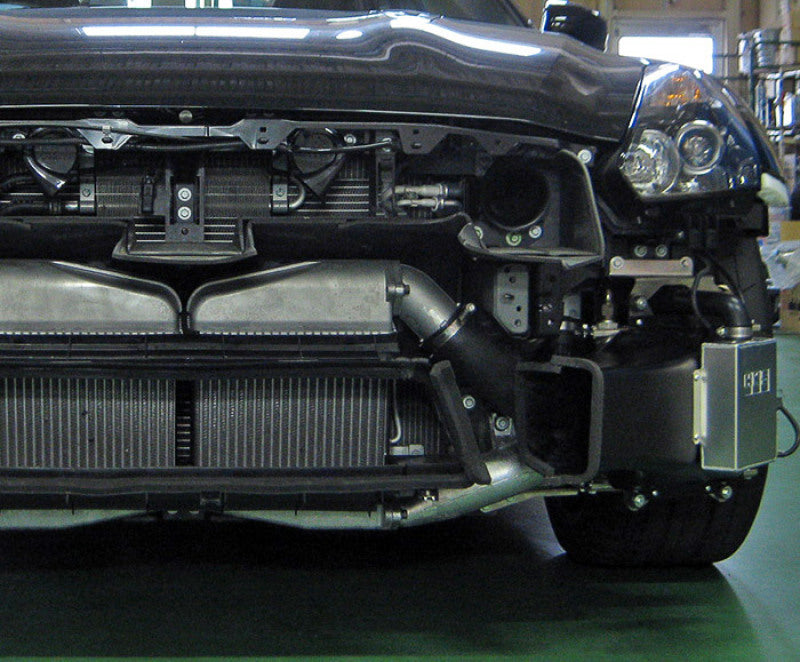

• Air-to-oil cooler core mounted in the front left fender - maximizes airflow exposure and cooling performance compared to the factory water-cooled heat exchanger alone
• FRP (Fiber Reinforced Polymer) air duct designed specifically for the R35 GT-R is included to direct airflow to the cooler core
• -10 AN oil lines used throughout - larger internal diameter than stock reduces flow restriction and ensures consistent transmission oil supply
• Integrates with the factory GR6 water-cooled heat exchanger and incorporates an HKS thermostat - stabilizes oil temperature more quickly from a cold start, improving shift quality sooner after launch
• Dedicated oil outlet attachment included for proper integration with the factory GR6 oil circuit
• R35-specific aluminum washer fluid reservoir included - retains factory fill-point access for ease of maintenance
• Aluminum pipes specifically designed for the R35 engine bay and lower area are included
• Fuji Speedway circuit testing demonstrated an average water temperature reduction of 5°C (9°F) and sustained continuous laps at a stable transmission oil temperature of 127°C (260°F)

Specifications

• Core Size: 200 x 220 x 48.5mm
• Core Rows: 15
• Core Color: Black
• Core Position: Front left fender
• Oil Line Size: -10 AN
• Air Duct Material: FRP (Fiber Reinforced Polymer)
• Thermostat: HKS integrated thermostat
• Washer Tank: R35-specific aluminum replacement
• Sustained Track Oil Temperature (Fuji Speedway test): 127°C (260°F)
• Water Temperature Reduction (Fuji Speedway test): 5°C (9°F) average
• Compatible Transmission: GR6 Dual Clutch Transmission (DCT)
• Compatible Engine: VR38DETT 3.8L Twin-Turbo V6
• Drive: AWD
• Chassis: DBA-R35

Included Components

• 1x Air-to-oil cooler core (200 x 220 x 48.5mm, 15-row, black)
• 1x FRP air duct (R35-specific)
• -10 AN oil lines and fittings
• 1x HKS thermostat
• 1x R35-specific aluminum washer fluid reservoir
• R35-specific aluminum piping (engine and lower area)
• Oil outlet attachment fitting
• Mounting hardware and brackets

Product Description

The HKS 27002-AN104 DCT Fluid Cooler Kit is an air-to-oil transmission cooling system developed for the 2012-2016 Nissan GT-R (DBA-R35) and its GR6 dual clutch transmission. The factory GR6 cooling system relies solely on a water-cooled heat exchanger that shares cooling load with the engine coolant circuit. Under sustained hard driving or track use, this arrangement allows transmission oil temperatures to climb rapidly - triggering the GT-R's fail-safe at 140-145°C, cutting power, and in extreme cases forcing a switch from AWD to 2WD mode as the 4WD clutch temperatures rise independently.

The HKS kit adds a 15-row, 200 x 220 x 48.5mm air-to-oil cooler core mounted in the front left fender, fed by a dedicated FRP duct. Rather than replacing the factory heat exchanger, the system integrates alongside it via an HKS thermostat, allowing the transmission oil to be pre-stabilized quickly at moderate temperatures before routing through the air-to-oil core under sustained load. The result - validated at Fuji Speedway - is continuous circuit operation at a stable 127°C (260°F) transmission oil temperature and an average 5°C (9°F) reduction in overall water temperature. -10 AN lines minimize flow restriction throughout the oil circuit, and a purpose-built R35 aluminum washer reservoir replaces the factory unit to accommodate the fender-mounted core packaging.
