HKS 13001-AH008 R Type Intercooler Core for 2022-2026 Honda Civic Type R 2.0L

Vehicle Fitment

• 2022-2026 Honda Civic Type R (FL5, K20C 2.0L Turbo I4, FWD)

Fitment Notes

• Core-only intercooler; HKS piping kit is not included.
• Designed to work with the OEM intercooler piping.
• Installation requires modification of the air guide inside the front bumper and relocation of the outside air temperature sensor.
• No modification to the front reinforcement is required.
• The HKS piping kit requires additional vehicle-bracket modification, but that modification does not apply when retaining the OEM piping.
• HKS identifies this application for the FL5 Civic Type R with K20C engine from September 2022 onward.

Features

• HKS R Type performance intercooler core
• Front-mounted factory-replacement configuration
• 22.4% larger core area than the OEM intercooler
• Increased intercooler core capacity for improved charge-air cooling
• Designed for applications ranging from increased boost to turbocharger upgrades
• Compatible with OEM intercooler piping

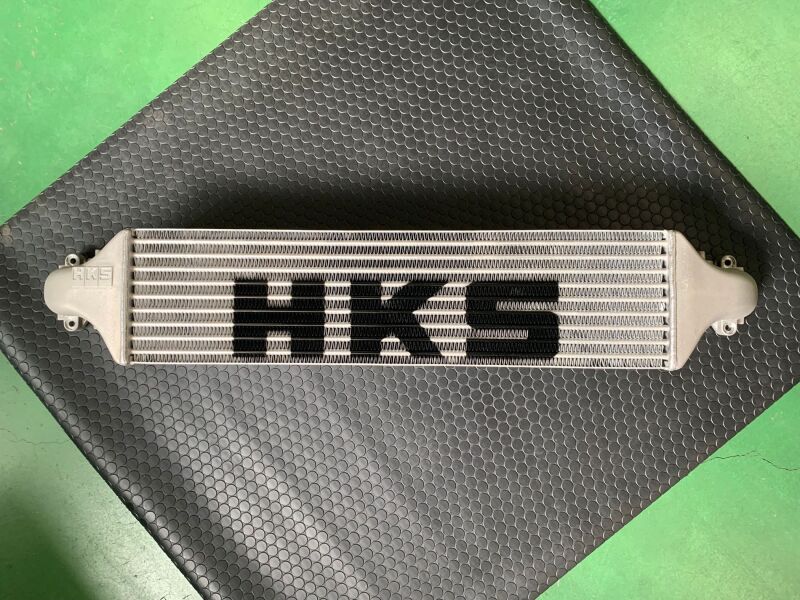

• 695 x 178 x 100mm core dimensions
• 10-fin, 9-tube core construction

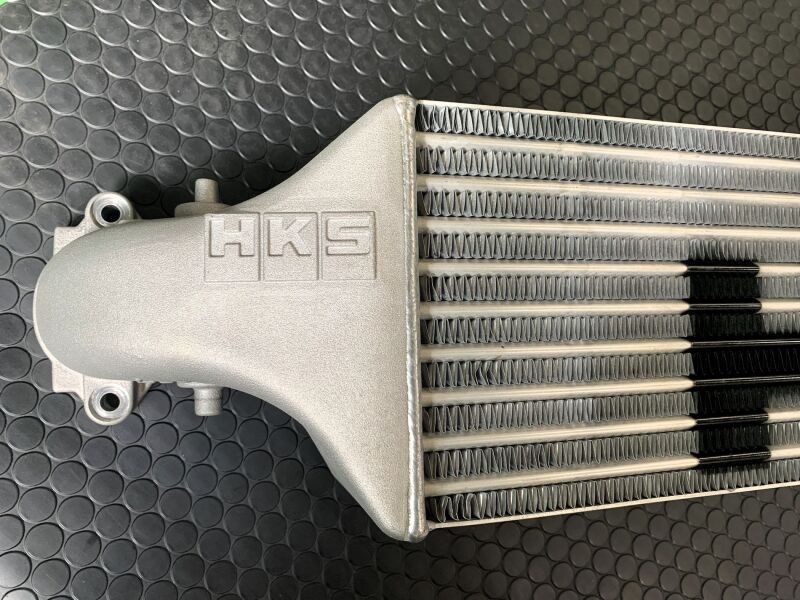

• Cast-aluminum end tanks
• Improved cooling efficiency compared with the OEM intercooler in HKS testing
• Designed for street and performance applications

Specifications

• Brand: HKS
• Part Number: 13001-AH008
• Product Type: R Type Intercooler Core
• Vehicle Platform: Honda Civic Type R FL5
• Engine: K20C 2.0L Turbo I4
• Drivetrain: FWD
• Model Year: September 2022 and newer
• Core Size: 695 x 178 x 100mm
• Installation Position: Front mount, factory replacement
• Core Construction: 10 fins / 9 tubes
• Tank Material: Cast aluminum
• OEM Piping Compatible: Yes
• Core Area Increase: 22.4% versus OEM
• Reference Installation Time: Approximately 1.5 hours

Included Components

• 1x HKS R Type Intercooler Core
• 1x HKS Logo Spray Masking Sheet

Product Description

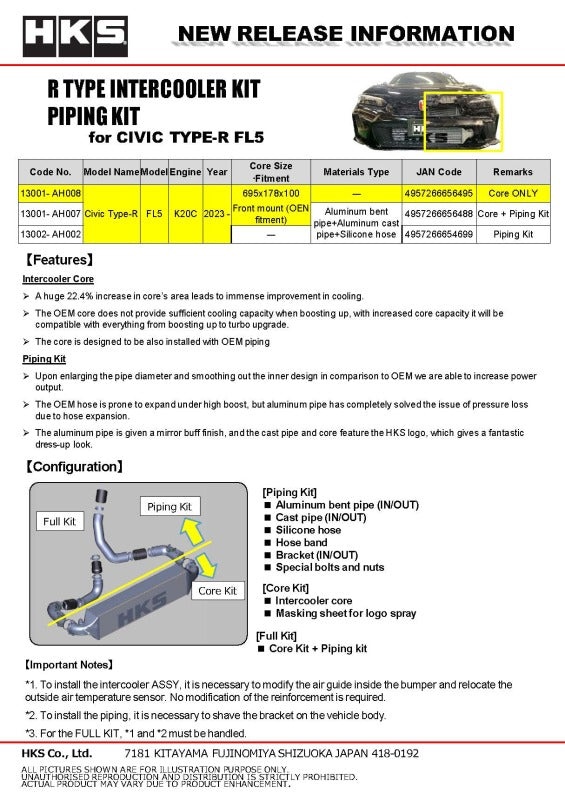

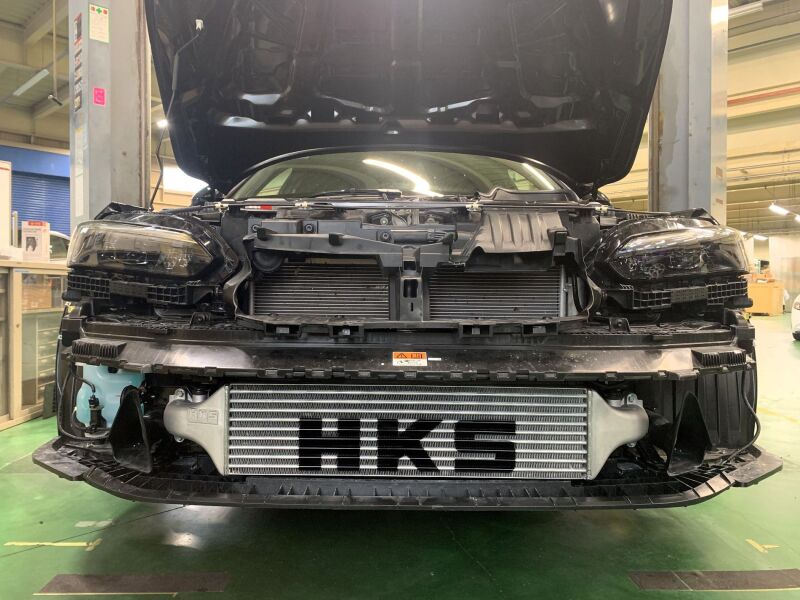

HKS 13001-AH008 is an R Type intercooler core designed specifically for the FL5 Honda Civic Type R with the K20C turbocharged engine. The factory-replacement front-mount design increases the intercooler's core area by 22.4% compared with the OEM unit, providing greater charge-air cooling capacity for performance-oriented applications.

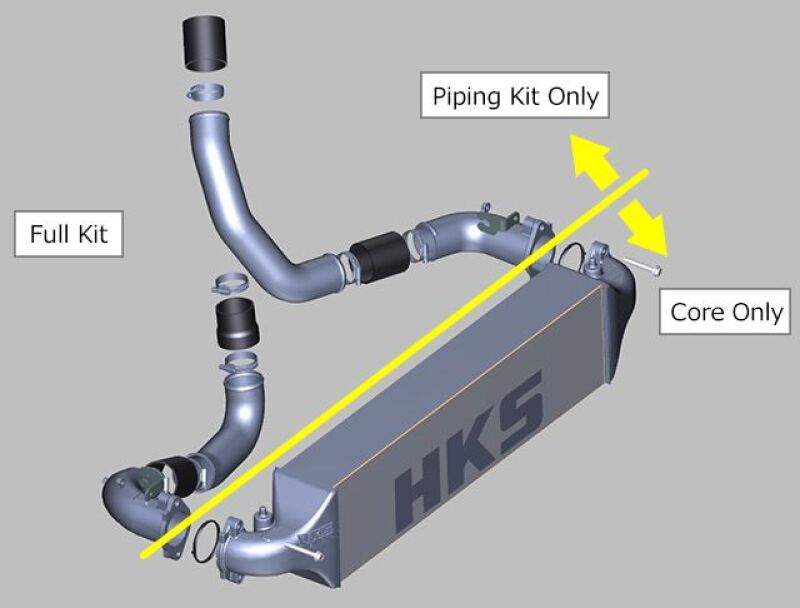

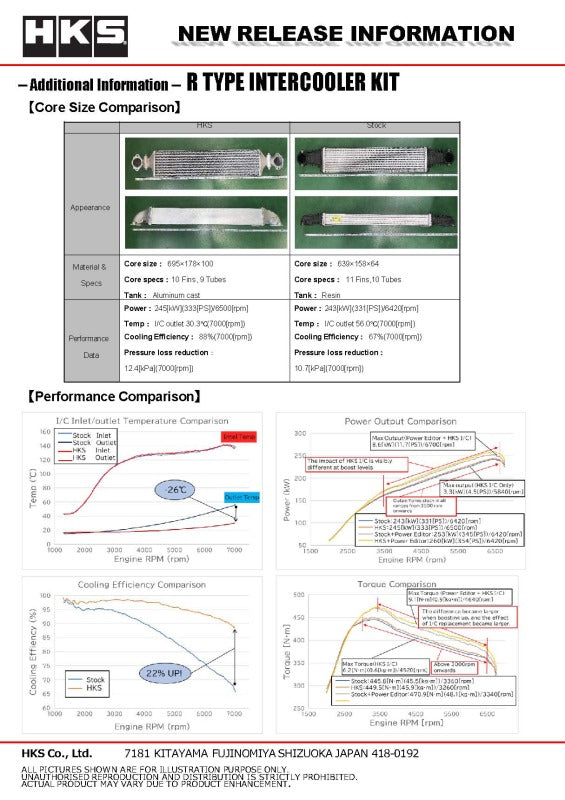

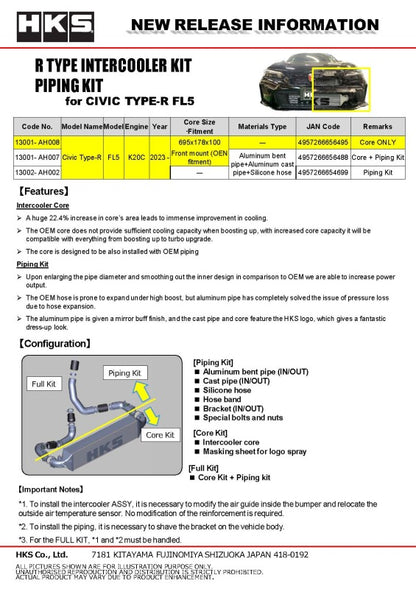

The 695 x 178 x 100mm core uses a 10-fin, 9-tube configuration with cast-aluminum tanks. HKS designed the layout to work with the factory intercooler piping, making this part the core-only alternative to the complete HKS 13001-AH007 intercooler and piping kit. HKS testing reports an intercooler outlet temperature of 30.3°C at 7,000 rpm and 88% cooling efficiency under its specified test conditions.

This part is supplied as the intercooler core with an HKS logo spray masking sheet. Installation requires modification of the air guide inside the bumper and relocation of the outside air temperature sensor, while no reinforcement modification is required. Verify the vehicle is an FL5 Civic Type R before installation.
