HKS 15004-AH105 Oil Cooler Kit Black for 2023-2025 Honda Civic Type R FL5 K20C

Vehicle Fitment

• 2023-2025 Honda Civic Type R (FL5, FWD, K20C 2.0L Turbocharged I4)

Fitment Notes

• Designed exclusively for the FL5 Civic Type R chassis - does not fit FK8 or earlier generations
• Bumper and splash shield modification is required for duct installation
• Estimated installation time: approximately 6 hours
• Optional dry carbon air duct (P/N: 15999-AH001) sold separately

Features

• Developed specifically for FL5 platform through extensive road testing and durability evaluation

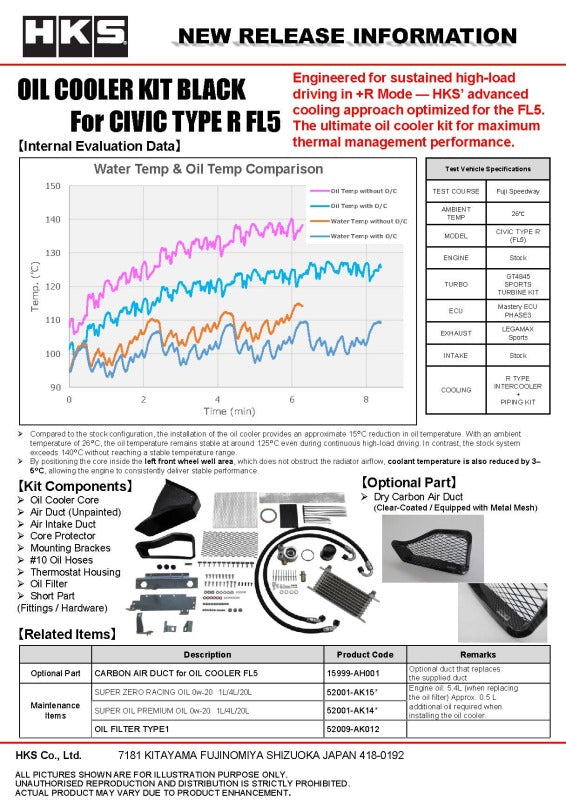

• Significantly suppresses oil temperature rise during sustained high-load and circuit driving

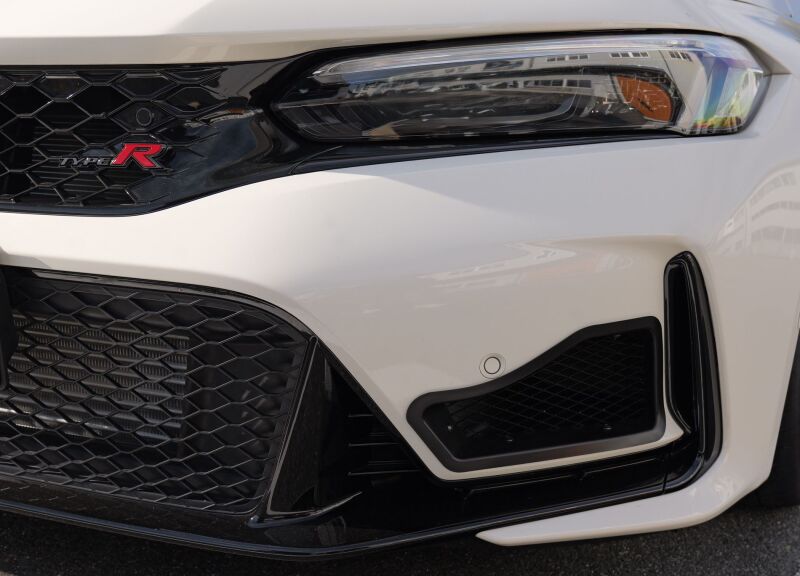

• OEM-style air duct design preserves original front-end styling without visual disruption
• Dedicated large-capacity air duct channels fresh air directly to the oil cooler core
• Aerodynamically optimized heated air evacuation path for balanced system airflow
• Core positioned inside the left front fender for maximum thermal efficiency

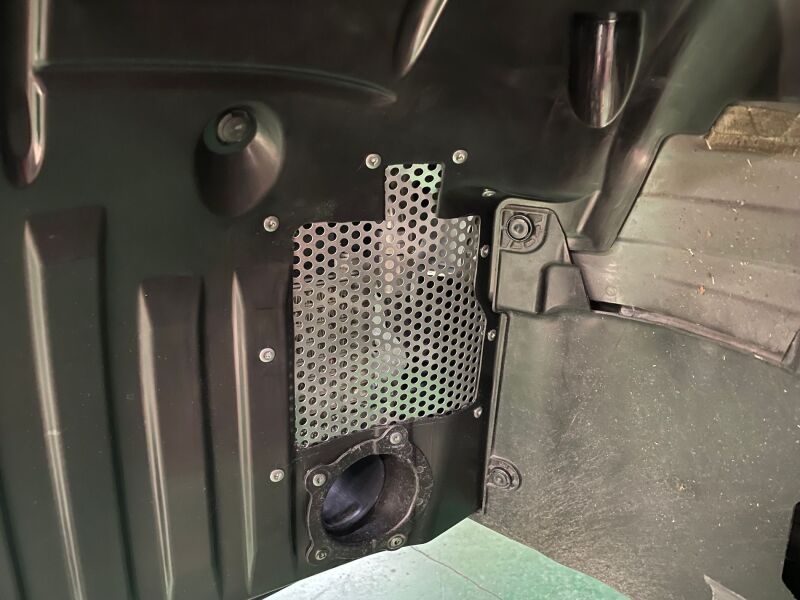

• Outlet plate included to protect the core from stone strikes and road debris
• Compatible with A/C performance and coolant temperature balance

Specifications

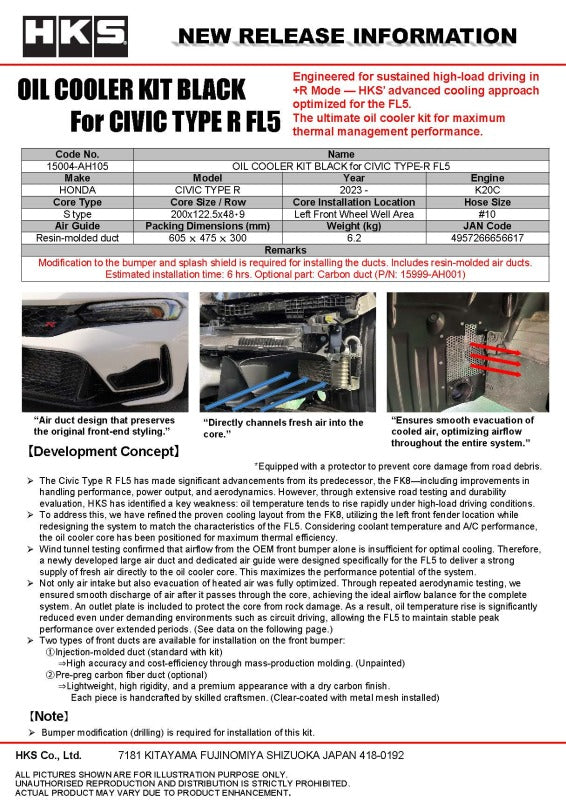

• Core Size (W x H x D): 200mm x 122.5mm x 48mm
• Core Stages: 9-stage
• Core Mounting Position: Inside left front fender
• Hose Size: #10
• Air Guide Material: Resin (unpainted)
• Compatible Engine: K20C 2.0L Turbocharged I4
• Drive: FWD

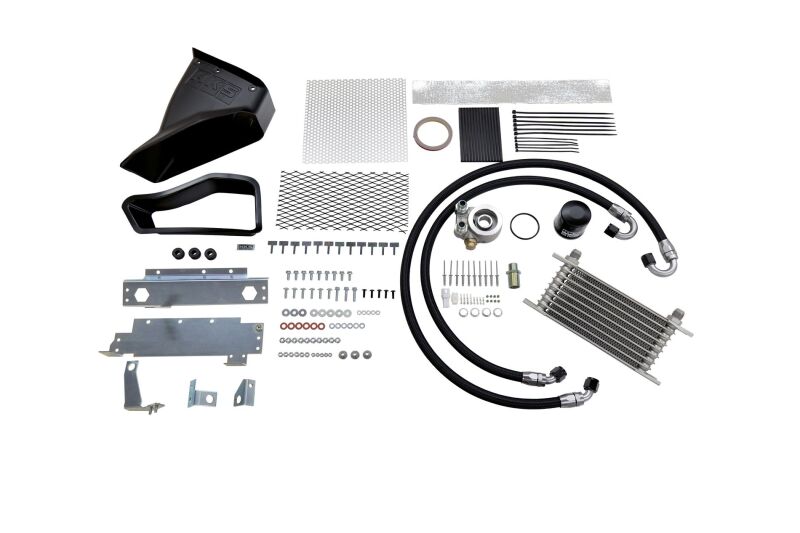

Included Components

• 1x Oil Cooler Core
• 1x Air Duct (Unpainted Resin)
• 1x Air Intake Duct
• 1x Outlet Plate (Core Protector)
• 1x Mounting Bracket
• 1x #10 Oil Hose
• 1x Thermostat Housing
• 1x Oil Filter
• 1x Hardware/Short Parts Kit

Product Description

The HKS 15004-AH105 Oil Cooler Kit Black is engineered to solve a critical thermal weakness in the FL5 Civic Type R - rapid oil temperature rise during high-load driving. Despite the FL5's improvements in power, handling, and aerodynamics over its FK8 predecessor, HKS found through track testing that the OEM front bumper airflow alone is insufficient to manage oil temperatures under sustained +R Mode use. This kit directly addresses that gap with a purpose-built cooling system designed around the FL5's chassis geometry and aerodynamic profile.

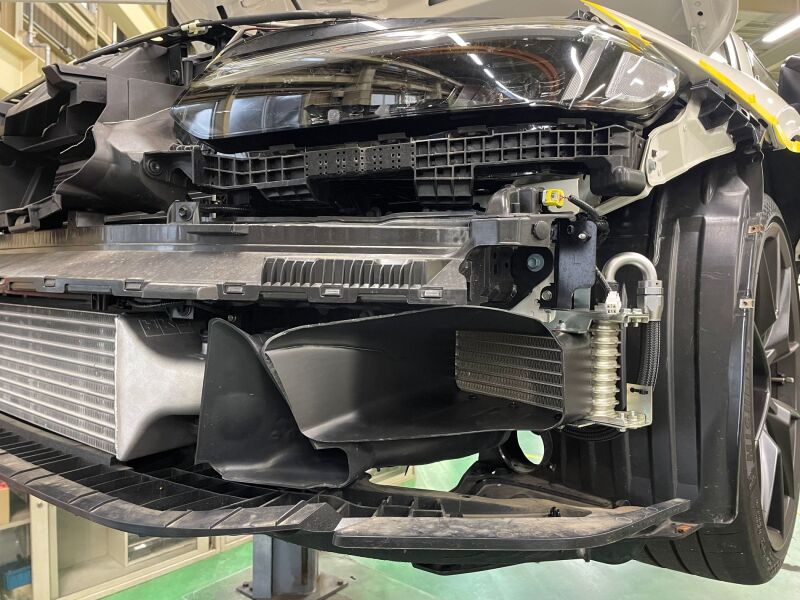

The system mounts the 9-stage oil cooler core inside the left front fender, feeding it through a dedicated large-capacity air duct that introduces fresh, unheated air straight to the core. Heated air is then efficiently evacuated through an aerodynamically tested exit path, keeping the entire system balanced without negatively impacting coolant temperature or A/C performance. An outlet plate shields the core from road debris, making this kit suitable for both street and circuit environments.
