HKS 80330-AT027P Hipermax S Lowering Coilovers for 2022-2026 Toyota GR86 ZN8 FA2

Vehicle Fitment

• 2022-2026 Toyota GR86 (ZN8 Platform, FA24 2.4L Naturally Aspirated H4, RWD)

Fitment Notes

• Fits ZN8 GR86 produced from October 2021 onward
• Ride height data is measured on MT (manual transmission) models - for AT (automatic), HKS recommends raising front ride height by 3mm from the factory setting to account for added vehicle weight
• Does not fit Subaru BRZ ZD8 - the GR86 and BRZ use different OEM suspension settings and arm geometry; BRZ ZD8 requires separate part number 80330-AF020P
• Front upper mount is pillow ball (spherical bearing) - rear upper mount is rubber bush
• Front spring rate change available at factory (±10 N/mm / ±1 kgf/mm); rear change available (±15 N/mm / ±1.5 kgf/mm)

Features

• Front pillow ball (spherical bearing) upper mount enables camber adjustment and delivers sharper, more direct steering response vs. rubber mount
• Single-tube monotube damper with separated gas and oil chambers for stable, consistent damping force
• 30-step damping force adjustment on both front and rear for street-to-track tuning flexibility
• Dual Preload Valve System (Dual PVS) suppresses unnecessary high-speed damping force for improved ride comfort
• Inverted front strut design reduces unsprung weight and increases lateral rigidity under cornering loads
• Rear helper spring included for improved spring control at lower ride heights
• PNE coating delivers 5x corrosion resistance compared to standard galvanizing
• 3-year manufacturer warranty with factory spring rate change and overhaul service available

Specifications

• Spring Rate - Front: 49 N/mm (5.0 kgf/mm) | Rear: 64 N/mm (6.5 kgf/mm)
• Free Length - Front: 170 mm (Straight Barrel) | Rear: 170 mm (Straight Barrel)
• Damping Force at 0.1m/sec - Front: Rebound 397 N / Compression 402 N
• Damping Force at 0.1m/sec - Rear: Rebound 407 N / Compression 387 N
• Damping Adjustment - Front: 30 Steps | Rear: 30 Steps
• Default Damper Position - Front: Step 15 | Rear: Step 15
• Upper Mount - Front: Pillow Ball (Spherical Bearing) | Rear: Rubber Bush
• Damper Layout - Front: Inverted | Rear: Normal
• Remaining Damper Stroke - Front: Rebound 42 mm / Compression 57 mm | Rear: Rebound 48 mm / Compression 58 mm
• Ride Height Range (vs. stock, MT) - Front: 0 to -46 mm | Rear: +1 to -59 mm
• Default Ride Height at Shipment (vs. stock, MT) - Front: -24 mm | Rear: -22 mm
• Rear Helper Spring Rate: 19.8 N/mm
• Factory Spring Rate Change - Front: ±10 N/mm (±1 kgf/mm) | Rear: ±15 N/mm (±1.5 kgf/mm)
• Rear Lever Ratio: 1.26

Included Components

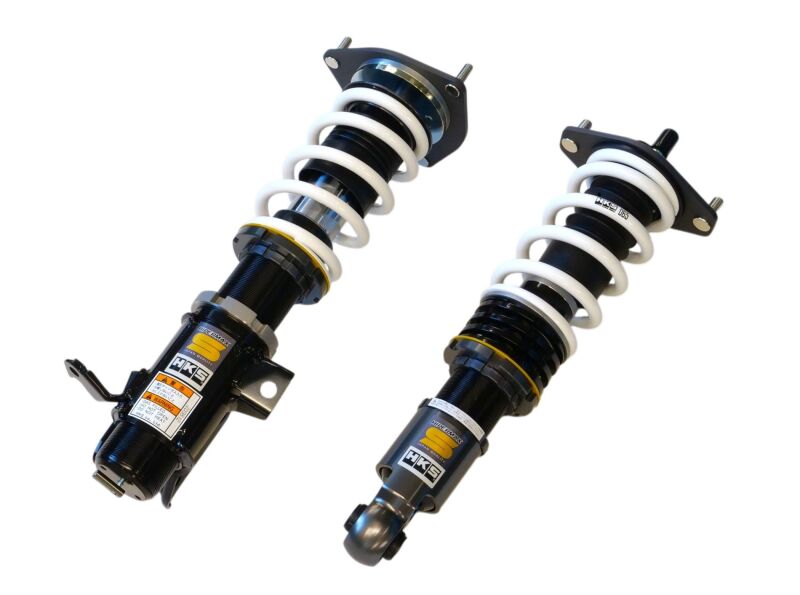

• 2x Front Inverted Coilover Assemblies (with pillow ball upper mount)
• 2x Rear Coilover Assemblies (with rubber upper mount)
• 2x Rear Helper Springs (19.8 N/mm)
• 1x Spanner Wrench Set
• 1x Damper Adjustment Tool

Product Description

The HKS Hipermax S Coilovers (80330-AT027P) are purpose-built and specifically retuned for the Toyota GR86 ZN8, engineered to enhance - not change - the GR86's sharper handling characteristics compared to the second-generation BRZ. HKS developed a completely separate kit for the GR86 after extensive testing confirmed the two cars require different suspension settings despite sharing the same FA24 platform. The "P" designation means the front upper mount uses a pillow ball spherical bearing, enabling camber angle adjustment and delivering more direct steering feel for drivers who want the most connected feedback possible.

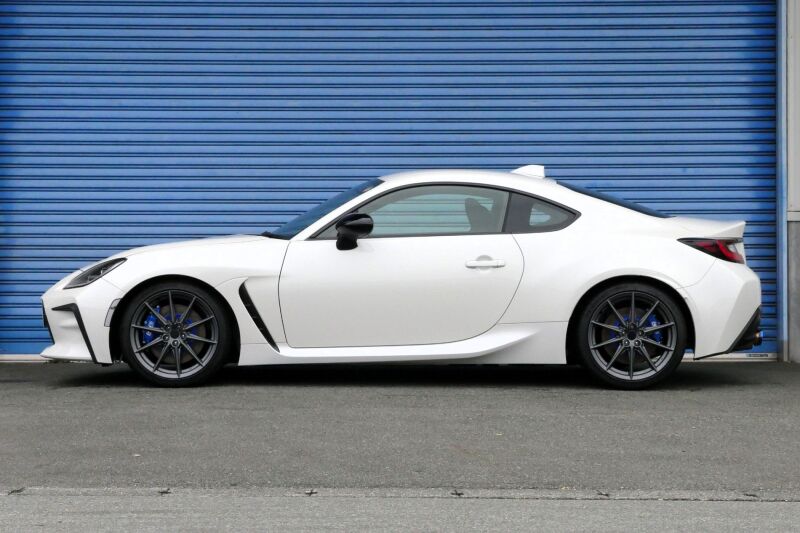

The kit ships pre-assembled at a factory-default drop of 24mm front and 22mm rear for MT models - a mild, immediately drivable stance. The 30-step damping dials allow fine-tuning from a street-comfortable setting to a firmer, track-focused setup, and the rear helper spring ensures proper spring behavior across the full range of ride height adjustment. Factory spring rate changes are available through HKS for both front and rear, giving owners room to customize the spring spec for their specific use case.
