Hellwig 7744 Rear Sway Bar for 2016-2023 Toyota Tacoma 2WD/4WD 0-2in Lift

Vehicle Fitment

• 2016-2023 Toyota Tacoma (All Trims, 2WD/4WD, Stock Height to 2" Lift, All Engines)

Fitment Notes

• Fits both 2WD and 4WD configurations across all 2016-2023 third-generation Tacoma trims including SR, SR5, TRD Sport, TRD Off-Road, TRD Pro, and Limited.
• Compatible with stock ride height through 2" of rear lift.
• The 2016-2023 Toyota Tacoma does NOT come equipped with a factory rear sway bar - this is a complete add-on kit. All required brackets, axle clamps, end links, bushings, and hardware are included.
• Installation requires drilling two 1/2" holes into the rear frame rails - one on each side. Plan for a moderate-difficulty installation.
• Does NOT fit the 2024+ fourth-generation Toyota Tacoma, which uses a redesigned rear suspension platform.
• Hellwig recommends pairing with the Hellwig 7719 front sway bar for a complete front-to-rear handling upgrade on this platform.

Features

• Purpose-built rear sway bar add-on kit engineered for the 2016-2023 third-generation Toyota Tacoma - fills the factory gap on a platform that ships without any rear anti-roll bar.
• 3/4" (0.750 in.) diameter solid, heat-treated 4140 chromoly spring steel - custom-engineered for the Tacoma's rear axle geometry and designed to fit both rear axle variants used across the production run.
• Adjustable rate design with three-hole end link attachment points - tunable from maximum anti-roll stiffness (inner hole) to a balanced daily/trail setting (center) to maximum suspension compliance for off-road (outer hole).
• Dramatically reduces the rear body sway and side-to-side lean that third-gen Tacoma owners commonly experience during cornering, towing, and loaded highway driving.
• Keeps weight more evenly distributed across all four tires during cornering for improved traction, confidence, and safety.
• Complete kit includes all frame brackets, axle clamps, adjustable end links, polyurethane bushings, and mounting hardware - no factory components required.
• High-durometer polyurethane bushings for superior roll resistance, reduced noise and vibration, and long-term durability.
• Gray/silver hammertone powdercoated finish for corrosion resistance in all weather and trail conditions.
• Heat-formed as a single piece from 4140 chromoly steel - more structurally consistent at the bends versus cold-bent alternatives.
• ISO 9001:2015 certified manufacturing at Hellwig's Visalia, California facility. Made in the USA. Backed by a Limited Lifetime Warranty.

Specifications

• Part Number: 7744
• Bar Diameter: 3/4" (0.750 in.)
• Bar Material: Solid, heat-treated 4140 chromoly spring steel
• Finish: Gray/Silver Hammertone Powdercoated
• Position: Rear
• Rate Type: Adjustable (3-hole end link positions)
• Drivetrain: 2WD and 4WD
• Lift Compatibility: Stock height to 2" lift
• Installation: Requires drilling two 1/2" holes in rear frame rails
• Shipping Weight: 20 lbs.
• Shipping Dimensions: 42 in. L x 19 in. W x 2 in. H
• UPC: 745662077440
• Warranty: Limited Lifetime

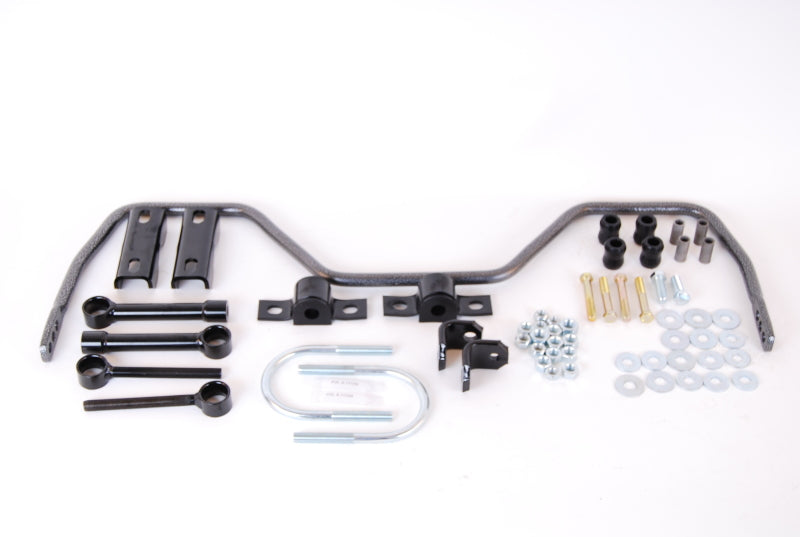

Included Components

• 1x Hellwig 7744 Rear Sway Bar (3/4" diameter, chromoly, gray/silver hammertone powdercoated)
• 1x Pair of adjustable end links
• 1x Set of rear axle clamps
• 1x Set of frame mounting brackets
• 1x Set of high-durometer polyurethane bushings
• 1x Complete mounting hardware kit
• 1x Installation instruction sheet

Product Description

The Hellwig 7744 Rear Sway Bar is a complete bolt-on add-on kit engineered for the 2016-2023 third-generation Toyota Tacoma. Like the F-150, the third-gen Tacoma arrives from the factory with no rear sway bar at all - a significant omission on a truck that is frequently driven in spirited on-road conditions, used for towing, or driven over trails where rear stability becomes critical during recovery and high-speed off-road runs. The Hellwig 7744 fills this gap with a solid 3/4" heat-treated 4140 chromoly bar custom-designed for the Tacoma's rear axle, which comes in two different configurations across the production run - Hellwig engineered the 7744 to fit both variants without modification.

The adjustable rate design with three-hole end link positions gives owners meaningful control over the bar's effective stiffness. The inner hole provides the firmest setting for maximum anti-roll resistance during towing or performance driving. The center hole balances on-road handling with light trail use. The outer hole maximizes rear suspension compliance, preserving axle articulation for technical off-road driving. Installation requires drilling two 1/2" holes into the rear frame rails - one on each side - which is a one-time modification that requires intermediate mechanical skill and a 1/2" drill bit. The complete kit includes all frame brackets, axle clamps, end links, polyurethane bushings, and hardware, with nothing borrowed from the factory.

Fitment covers all 2016-2023 third-generation Tacoma models across all trim levels - SR, SR5, TRD Sport, TRD Off-Road, TRD Pro, and Limited - in both 2WD and 4WD and with both available engine options, at stock ride height through 2" of rear lift. This bar does not fit the 2024+ fourth-generation Tacoma. Paired with the Hellwig 7719 front sway bar, the 7744 delivers a complete front-to-rear anti-roll upgrade for the Tacoma. Built at Hellwig's ISO 9001:2015 certified Visalia, California facility and backed by a Limited Lifetime Warranty, the 7744 is one of the most transformative single-part handling upgrades available for the third-gen Tacoma platform.
