Hellwig 7748 1in Solid Rear Sway Bar for 2016-2024 Nissan Titan/NV Van

Vehicle Fitment

• 2017-2024 Nissan Titan (2WD/4WD)
• 2016-2024 Nissan Titan XD (2WD/4WD)
• 2016-2021 Nissan NV1500 (Stock Ride Height)
• 2016-2021 Nissan NV2500 (Stock Ride Height)
• 2016-2021 Nissan NV3500 (Stock Ride Height)

Fitment Notes

• Rear axle application only; designed for stock ride height vehicles
• Does not fit 2005 Nissan Titan (use Hellwig 7669 for that model)
• Not available for 2014 or 2015 NV3500 models

Features

• Hot-formed, heat-treated 4140 chromoly steel construction
• One-piece design for maximum strength and shape retention
• High-durometer polyurethane bushings for improved handling response
• Reuses factory end links; no drilling required
• Reduces body roll and improves cornering stability
• Maintains even tire contact pressure for extended tire life
• Improves handling in both unloaded and tow/haul conditions
• Made in the USA

Specifications

• Position: Rear
• Bar Diameter: 1 inch
• Bar Type: Solid
• Material: 4140 Chromoly Spring Steel
• Ride Height: Stock height only

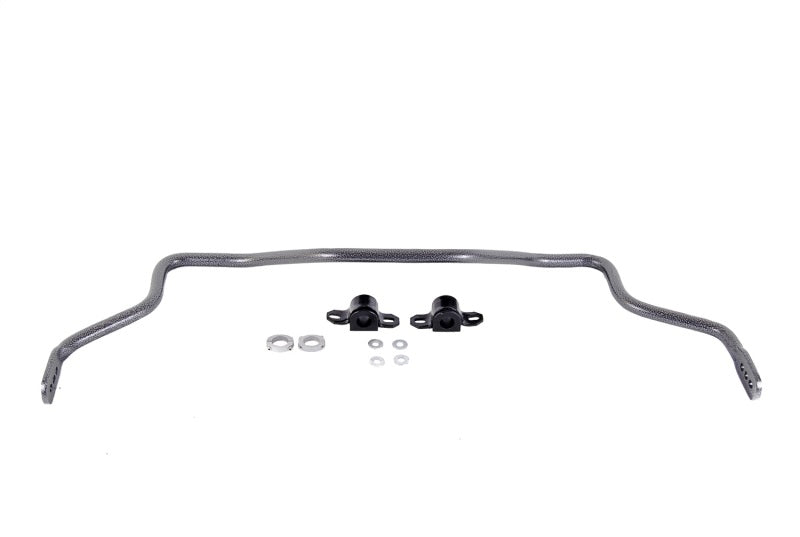

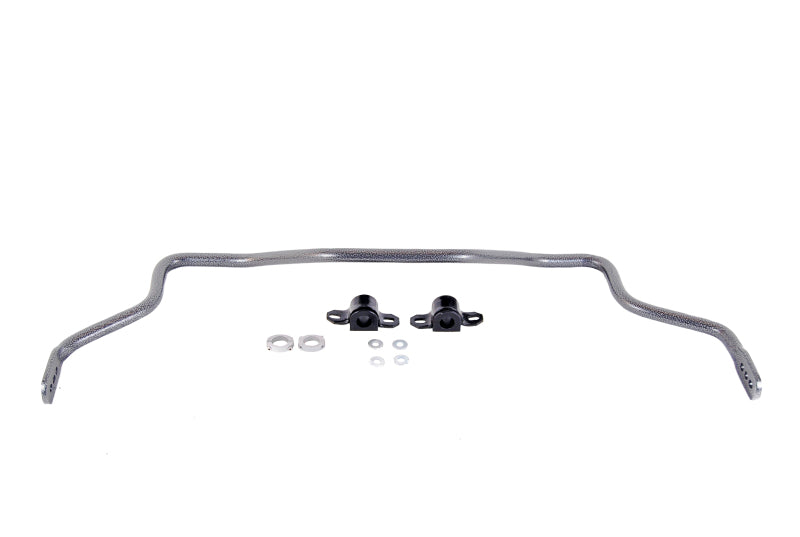

Included Components

• 1x Rear Sway Bar
• 1x Set of Polyurethane Bushings
• 1x Mounting Hardware Kit

Product Description

The Hellwig 7748 is a 1-inch diameter solid rear sway bar built for the 2016-2024 Nissan Titan and Titan XD, along with the 2016-2021 NV1500, NV2500, and NV3500 vans. Made from hot-formed 4140 chromoly steel, it's engineered to tighten up body roll and improve handling stability whether the truck is running empty or loaded down for towing.

The kit reuses your factory end links and installs with basic hand tools, no drilling required. High-durometer polyurethane bushings help sharpen steering response and reduce sway, while the larger-than-stock diameter delivers a noticeable handling improvement over the factory bar. It's a straightforward upgrade for Titan and NV van owners who want more confident cornering without giving up ride comfort.
