Hellwig 7739 Rear Sway Bar for 2014-2023 Ram 3500 6.7L Diesel 2WD/4WD SRW/DRW

Vehicle Fitment

• 2014-2023 Ram 3500 (All Trims, 2WD/4WD, SRW & Dually, 6.7L Cummins Turbo Diesel I6)

Fitment Notes

• Fits the 6.7L Cummins Turbo Diesel engine only - does not fit Ram 3500 models equipped with gasoline engines.
• Fits both Single Rear Wheel (SRW) Pickup and Dually (DRW) configurations.
• Fits both 2WD and 4WD configurations across all supported model years.
• Compatible with vehicles equipped with or without factory rear air suspension.
• Particularly effective for fifth wheel towing, gooseneck trailer, and truck camper applications where rear body sway is most pronounced.
• Hellwig recommends pairing with a Hellwig front sway bar for a complete front-to-rear handling upgrade on this platform.

Features

• Purpose-built rear sway bar engineered specifically for the 2014-2023 Ram 3500 6.7L Cummins Diesel - designed for the higher-demand handling needs of this heavy-duty platform.
• 1-1/8" diameter solid, heat-treated 4140 chromoly spring steel - larger than the factory bar for a meaningful improvement in rear lateral stiffness and body roll resistance.
• Reduces rear body sway and lean during cornering, loaded towing, and lane changes - keeping weight more evenly distributed across all four tires for improved traction and stability.
• Effective in both everyday driving and maximum-load heavy hauling, fifth wheel towing, and truck camper applications.
• Compatible with factory rear air suspension - no modification required for air-equipped models.
• High-durometer polyurethane bushings included for superior roll resistance, reduced noise and vibration, and longer service life than rubber.
• Heat-formed as a single piece from 4140 chromoly steel - more dimensionally consistent at the bends versus cold-bent aftermarket alternatives.
• Gray/silver powdercoated finish for long-term corrosion resistance.
• Quick bolt-on installation using factory mounting locations - all hardware included.
• ISO 9001:2015 certified manufacturing at Hellwig's Visalia, California facility. Made in the USA. Backed by a Limited Lifetime Warranty.

Specifications

• Part Number: 7739
• Bar Diameter: 1-1/8" (1.125 in.)
• Bar Material: Solid, heat-treated 4140 chromoly spring steel
• Position: Rear
• Drivetrain: 2WD and 4WD
• Configuration: SRW (Pickup) and DRW (Dually)
• Engine Requirement: 6.7L Cummins Turbo Diesel I6 only
• Air Suspension: Compatible with or without factory rear air suspension
• UPC: 745662077396
• Warranty: Limited Lifetime

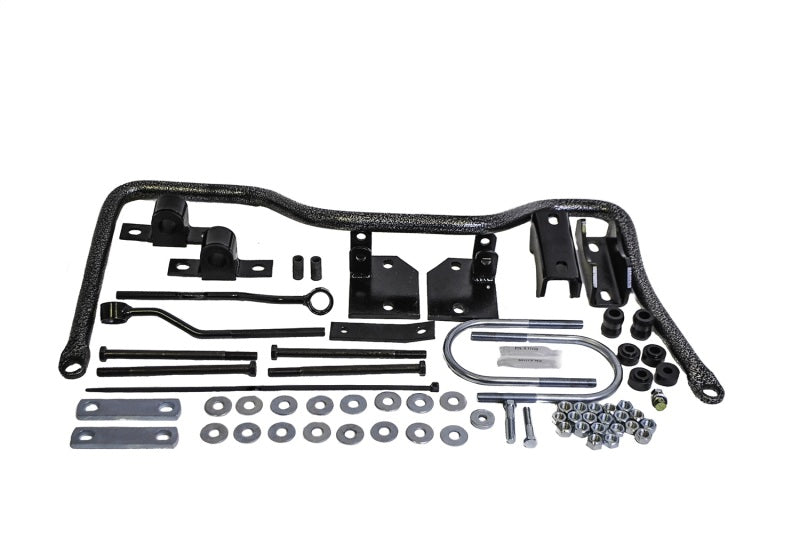

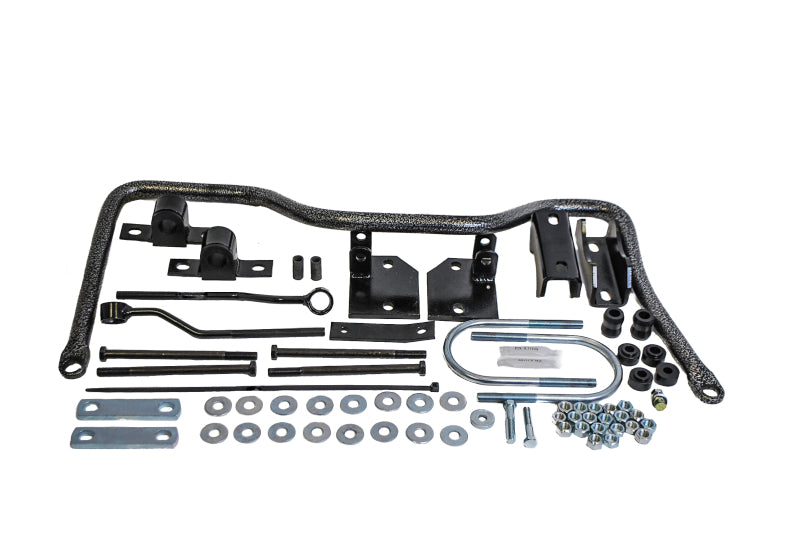

Included Components

• 1x Hellwig 7739 Rear Sway Bar (1-1/8" diameter, chromoly, powdercoated)
• 1x Set of high-durometer polyurethane bushings
• 1x Complete mounting hardware kit
• 1x Installation instruction sheet

Product Description

The Hellwig 7739 Rear Sway Bar is a direct-fit suspension upgrade engineered specifically for the 2014-2023 Ram 3500 equipped with the 6.7L Cummins Turbo Diesel engine in both 2WD and 4WD configurations. The Ram 3500 is one of the most demanding towing and hauling platforms in the one-ton truck segment, and while it does come with a factory rear sway bar, the stock unit is not sized to provide meaningful resistance against the pronounced body sway that occurs during fifth wheel towing, gooseneck trailer operation, or truck camper use. The Hellwig 7739 replaces the factory bar with a solid 1-1/8" heat-treated 4140 chromoly unit, delivering improved rear lateral stiffness, reduced body lean during cornering, and a substantially more controlled and confidence-inspiring feel both empty and at maximum load.

This bar is designed specifically for the 6.7L Cummins diesel-equipped Ram 3500 - it does not fit gasoline-powered 3500 variants, which use a different rear axle and suspension mounting geometry. Both Single Rear Wheel (Pickup) and Dually configurations are supported, as are vehicles with or without factory rear air suspension. The installation is fully bolt-on using factory rear axle mounting points, with all required hardware and polyurethane bushings included in the kit. The bar is hot-formed as a single piece from 4140 chromoly spring steel, ensuring dimensional consistency at the bends and greater long-term resistance to shape deformation compared to cold-bent alternatives.

Covering all 2014-2023 Ram 3500 6.7L Cummins models across all trim levels and both 2WD and 4WD drivetrains, including SRW and Dually body configurations, the 7739 is a comprehensive rear handling upgrade for this platform. Built at Hellwig's ISO 9001:2015 certified Visalia, California facility and backed by a Limited Lifetime Warranty, it is an American-made investment for Ram 3500 operators who demand better rear stability from the heaviest-duty production truck platform offered in this class.
