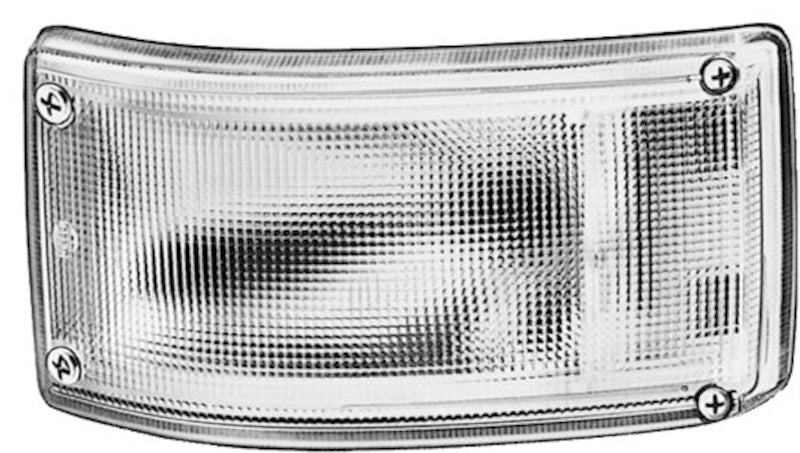

Hella 5603067 5603 Series White Rectangular Wraparound Reverse Lamp P21W SAE RV

Vehicle Fitment

• Universal - Not vehicle-specific. Designed as a direct-fit replacement or new installation for motorhomes, Class A/B/C RVs, coaches, transit buses, trailers, and other large commercial or recreational vehicles originally equipped with Hella 5603 Series wraparound lamps.

Fitment Notes

• Sold individually - one lamp per package; order in pairs if replacing both sides
• Bulb not included - requires S8 / P21W (BA15S base) 12V 21W bulb, sold separately
• Wraparound-style housing with a new bulb socket and double-walled weather boot included
• SAE approved - confirms compliance with U.S. federal motor vehicle safety standards for reverse lamps
• This is a white-lens reverse/backup lamp - for amber turn signal variant see 005603047/005603141; for red stop/tail variant see 005603137

Features

• Wraparound lens design provides wide-angle light distribution, maximizing visibility of the reverse signal from broad side and rear angles
• SAE-approved construction confirms compliance with U.S. motor vehicle lighting safety regulations for use as a legal reverse lamp
• Rectangular form factor is a direct dimensional match for vehicles originally fitted with Hella 5603 Series lamps - no cutting or modification required
• White lens delivers the high-contrast, bright reverse illumination required for safe backing of large vehicles such as motorhomes and coaches
• New replacement bulb socket included - eliminates the need to reuse corroded or degraded OEM sockets during installation
• Double-walled weather boot included - seals the socket and wiring connection against moisture, dust, and road debris ingress
• Hella OE-quality construction - engineered to the same standards Hella supplies to vehicle manufacturers worldwide
• Robust housing withstands the vibration, temperature cycling, and road exposure typical of RV and coach applications

Specifications

• Part Number: 005603067 (5603067)
• Series: 5603
• Catalog Number: 81958
• Function: Reverse / Backup Lamp
• Lens Color: White
• Lens Shape: Rectangular, Wraparound
• Housing Color: Black
• Bulb Type: S8 / P21W / BA15S
• Voltage: 12V
• Wattage: 21W

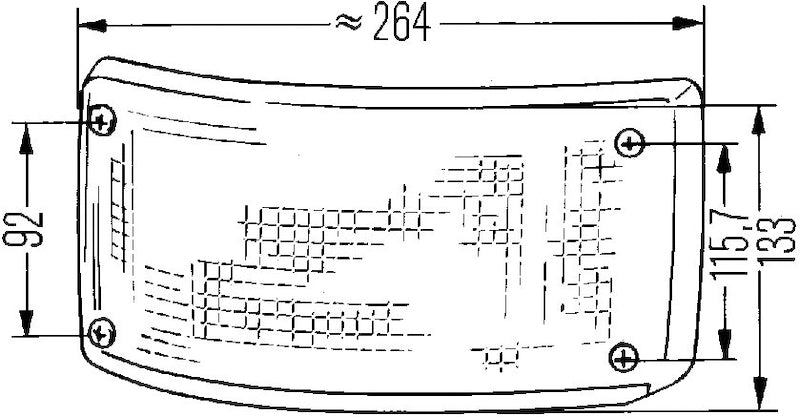

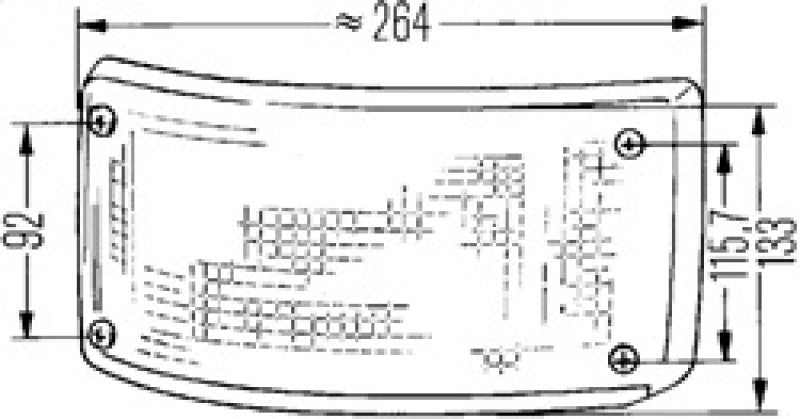

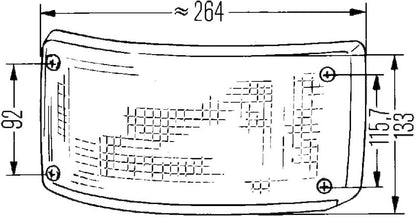

• Length: 10.40 in.
• Width: 5.24 in.
• Quantity: Sold individually (1 lamp per package)
• Certification: SAE Approved
• Bulb Included: No

Included Components

• 1x Hella 5603 Series White Wraparound Reverse Lamp Housing (005603067)
• 1x Replacement bulb socket
• 1x Double-walled weather boot

Product Description

The Hella 005603067 is a white-lens wraparound reverse lamp from the long-running 5603 Series - one of Hella's most widely recognized rectangular signal lamp families for motorhomes, coaches, and large recreational vehicles. Measuring 10.40 inches in length and 5.24 inches in width, this lamp is a direct dimensional replacement for vehicles already equipped with Hella 5603 Series housings, making it the go-to choice for restoring factory lighting function on aging Class A, B, and C motorhomes, transit coaches, and travel trailers. The wraparound lens geometry provides a wide viewing angle for the reverse signal, ensuring the lamp is visible to other road users across a broad arc - a critical safety requirement for large vehicles with limited rear visibility.

This lamp is SAE approved, confirming it meets U.S. federal motor vehicle safety lighting requirements for reverse lamps. Each unit ships with a new replacement bulb socket and a double-walled weather boot, so installation can be completed with fresh hardware without needing to reuse degraded original components. The socket accepts a standard S8 / P21W / BA15S 12V 21W bulb (sold separately), which is widely available at automotive and RV parts retailers. The lamp is sold individually - customers replacing both sides should order two units.

Built to Hella's OE quality standards - the same level of engineering the company provides to vehicle manufacturers globally - the 005603067 is designed to handle the long-term vibration, temperature cycling, and weathering demands of full-time RV use. For buyers needing other colors in the 5603 Series family, the amber turn signal lamp is available as 005603047 or 005603141, and the red stop/tail lamp is 005603137.
