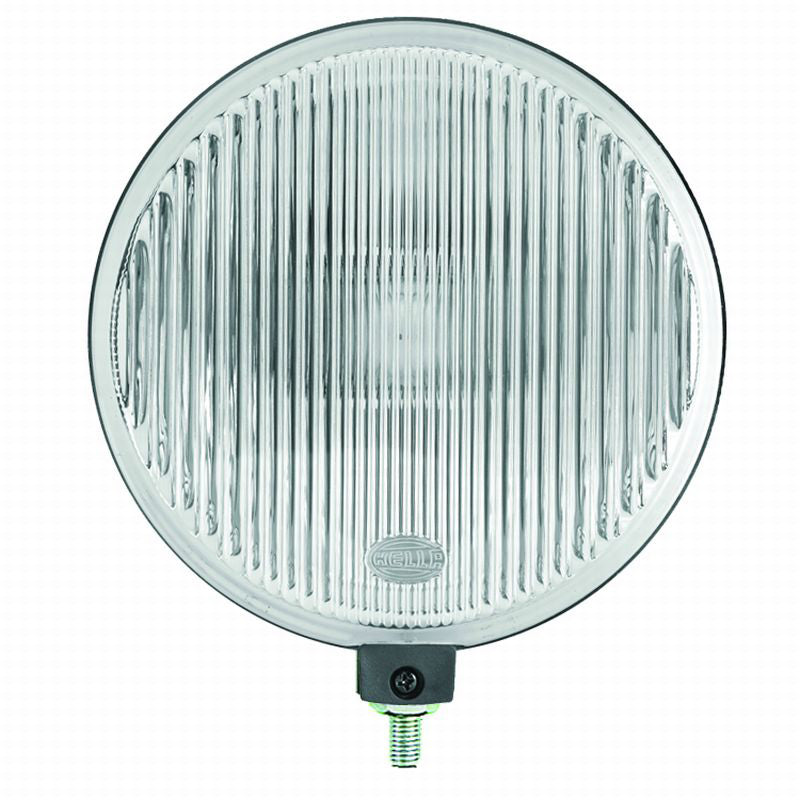

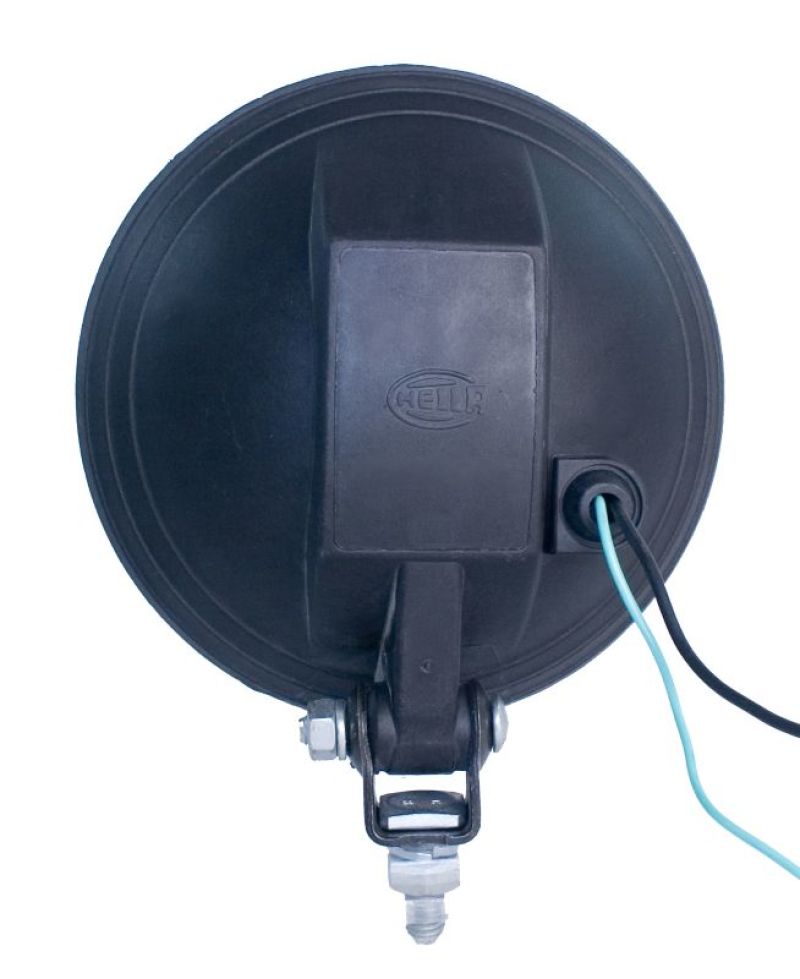

Hella 005750971 500 Series Fog Lamp Kit for Universal 12 V Off-Road Vehicles

Vehicle Fitment

• Universal / Off-Road Vehicles (12 V systems, auxiliary install)

Fitment Notes

• This is a universal fog/auxiliary lamp kit, not OEM vehicle-specific.
• Requires 12 V electrical supply, relay, wiring to mount and switch.
• Check local laws/regulations on auxiliary fog lights and beam pattern.

Features

• Rugged ABS housing with shock-proof design
• Aluminum vapor-coated reflector for efficient light output
• Uses H3 halogen 55 W bulbs (12 V)
• Includes wiring harness, relay, switch for installation
• Stone shield covers to protect lens
• Upright or pendant mounting orientation
• Clear glass lens with optional color shield overlays (yellow/smoke/blue)
• SAE / ECE approval for fog/auxiliary application

Specifications

• Voltage: 12 V
• Wattage: 55 W per lamp
• Bulb type: H3 halogen (included)

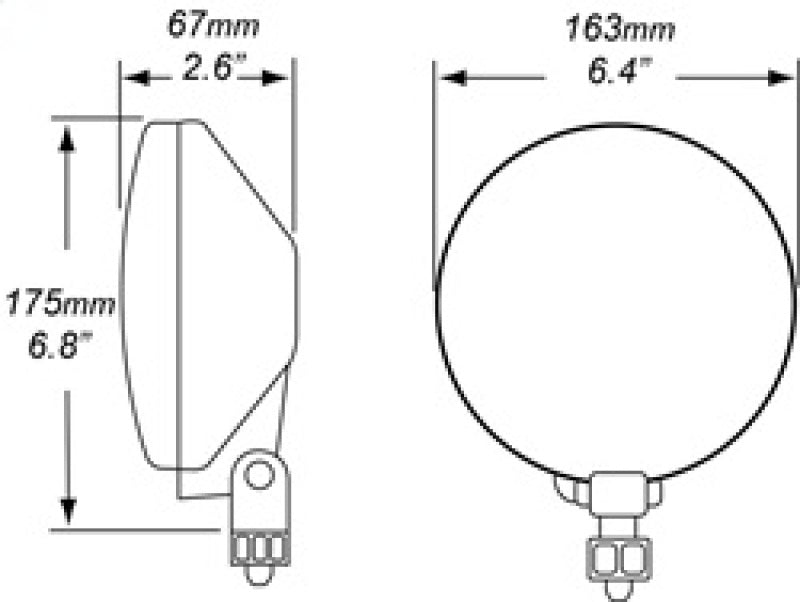

• Diameter: approx. 6-3/8 in (≈ 162 mm) outer housing
• Lens material: glass
• Housing material: ABS plastic

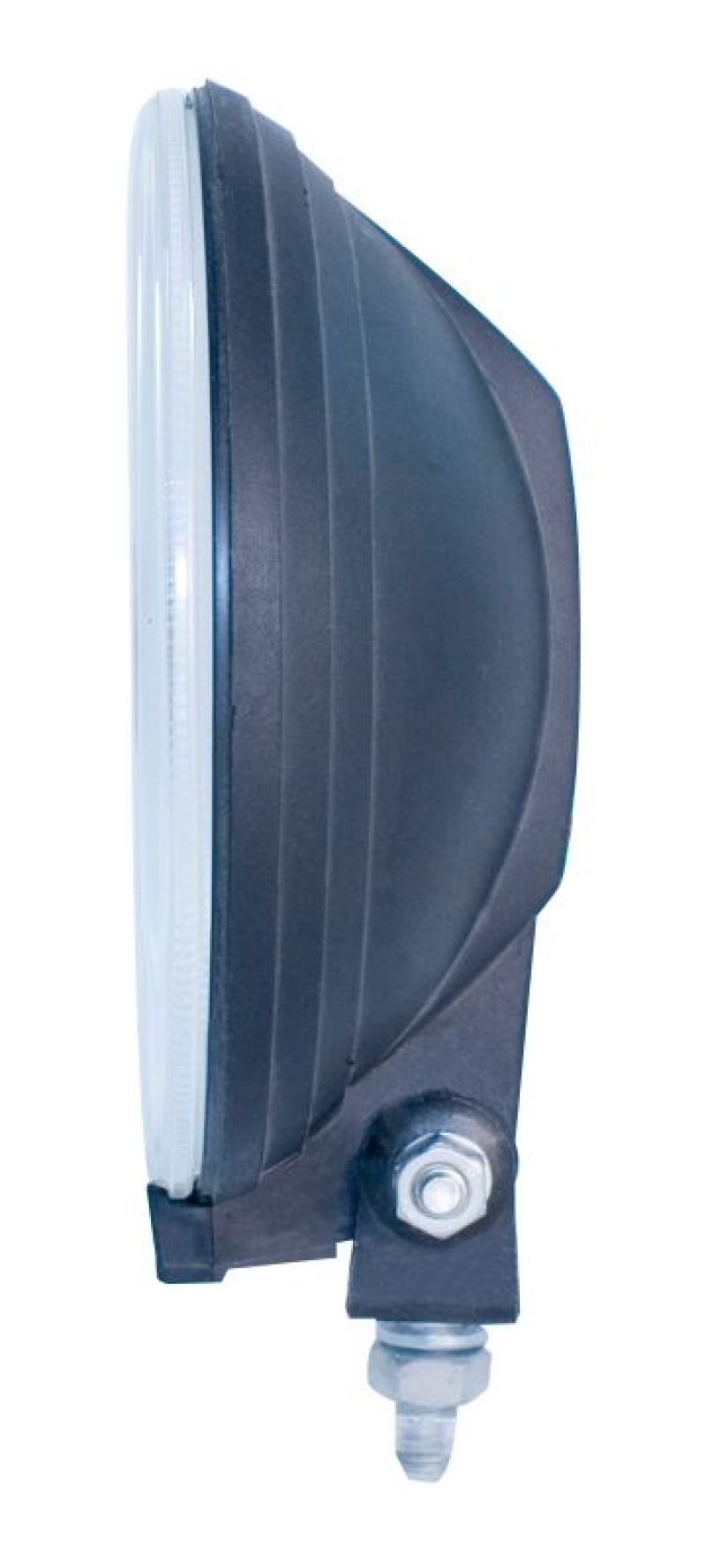

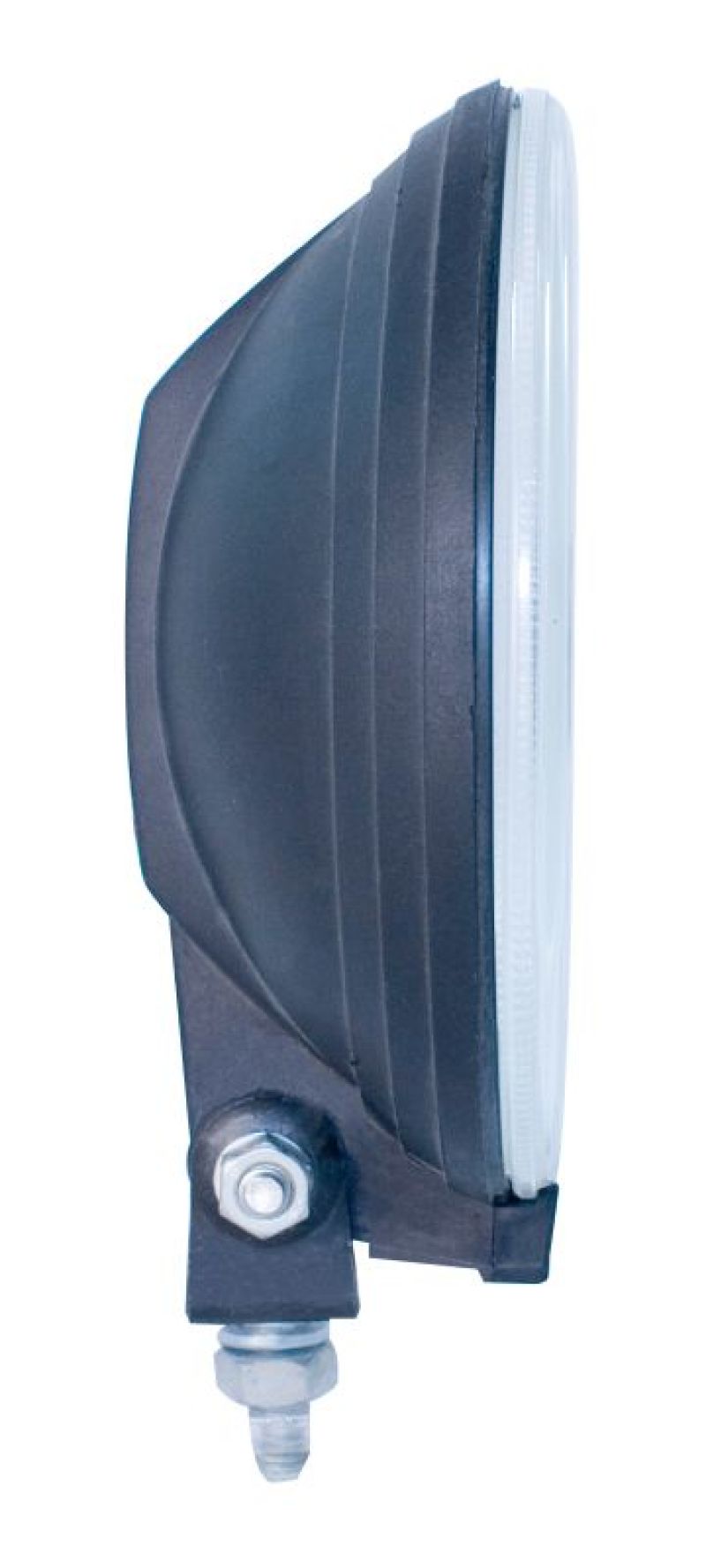

• Mounting style: stud with pivot bracket (upright or pendant)
• Included switch current rating: matched to 55 W x 2 load via relay

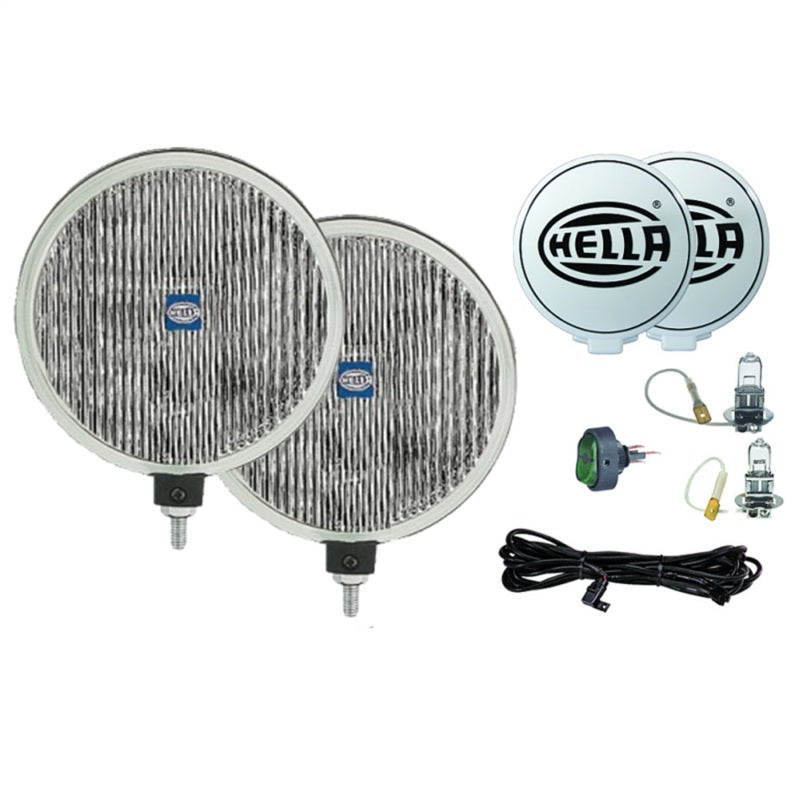

Included Components

• 2x fog lamp housings (6-3/8" diameter)
• 2x H3 55 W halogen bulbs
• 1x wiring harness with relay
• 1x illuminated rocker switch
• 2x stone shield covers
• Mounting brackets, hardware
• Optional color shield overlays (e.g. yellow, smoke, blue)

Product Description

The Hella 005750971 500 Series Fog Lamp Kit is a high-quality auxiliary lighting system designed for universal installation on 12 V vehicles, especially for off-road, foggy or low-visibility driving conditions. With rugged ABS housings, precision aluminum reflectors and included accessories, this kit delivers reliable performance in demanding environments.

The kit is engineered to be flexible: it includes wiring harness with relay and switch, allowing straightforward integration to most vehicle electrical systems. The upright or pendant mounting options, stone shield protectors, and optional color overlays give installers adaptability for different vehicle types and styles. Because it is not tied to a specific OEM vehicle, this is ideal for custom installs such as trucks, off-road rigs, SUVs, and work vehicles.
