Haltech HT-159978 WB1 NTK Single Channel CAN Wideband Controller Kit Methanol

Vehicle Fitment

• Universal - compatible with Haltech Nexus and Elite Series ECUs via NSP (Nexus Software Platform) only
• Recommended for methanol-powered vehicles - the NTK sensor is Haltech's preferred wideband sensor for methanol, E85, and other ethanol-based fuel applications
• Also suited for street applications running petrol (gasoline) and ethanol-blended fuels

Fitment Notes

• Compatible with Haltech Nexus and Elite Series ECUs on NSP (Nexus Software Platform) only. Not compatible with Haltech Platinum Series ECUs or ESP software.
• Uses the NTK LZA08-H5 wideband O2 sensor - not interchangeable with the Bosch LSU4.9 variant (HT-159976). Select based on your ECU compatibility and fuel type requirements.
• The WB1 controller is waterproof and designed for engine bay mounting - no enclosure or remote mounting required.
• The included 1200mm (4ft) CAN cable connects the WB1 controller to the ECU. For installations requiring greater reach, additional CAN cable length may be needed.
• The NTK sensor suits methanol and ethanol-blended fuel applications. For gasoline-only builds or installations where the LSU4.9 is preferred, see HT-159976 (WB1 LSU4.9 kit).

Features

• Single channel CAN wideband O2 controller - measures exhaust air-fuel ratio in real time and delivers data to the ECU via CAN bus.
• NTK LZA08-H5 wideband sensor included - Haltech's recommended sensor for methanol-powered vehicles and ethanol/petrol-blended fuel applications.
• Waterproof controller design - small and lightweight for direct engine bay mounting without additional weather protection.
• CAN bus output for precise, low-latency AFR data delivery to compatible Haltech ECUs without consuming analog voltage input channels.
• Plug-and-play CAN connection to Nexus and Elite ECUs via NSP - configurable directly within ECU software.
• Weld-on bung included - provides the correct M18 x 1.5 thread for exhaust installation without sourcing additional hardware.
• Complete kit - everything required for installation is included in a single purchase.

Specifications

• Part Number: HT-159978
• Type: WB1 - Single Channel CAN Wideband Controller Kit
• Sensor Type: NTK LZA08-H5 Wideband O2 Sensor
• CAN Cable Length: 1200mm (4ft / 1.2M)
• Controller: Waterproof, engine bay-mount rated
• Interface: CAN bus
• Software Compatibility: Haltech NSP (Nexus and Elite Series ECUs only)
• Recommended Application: Methanol, E85, ethanol-blended, and petrol fuel applications

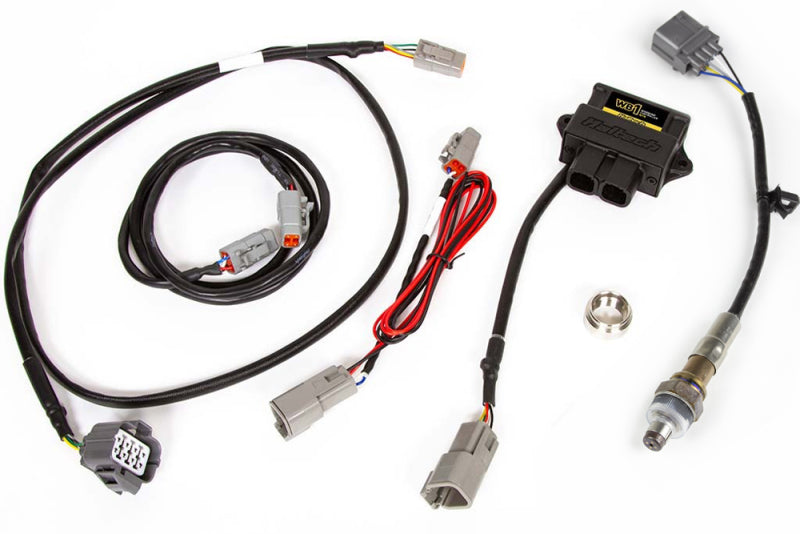

Included Components

• 1x WB1 Single Channel CAN Wideband Controller
• 1x NTK Wideband O2 Sensor
• 1x CAN Cable - 1200mm (4ft)
• 1x Power Supply Cable
• 1x Weld-on Exhaust Bung
• 1x Quick Start Guide

Product Description

The Haltech HT-159978 WB1 NTK is a single channel CAN wideband O2 controller kit designed for use with Haltech Nexus and Elite Series ECUs on NSP software. It uses the NTK LZA08-H5 wideband sensor - Haltech's recommended sensor for methanol-powered vehicles, which is also well suited to E85, ethanol-blended fuels, and petrol. The compact, waterproof WB1 controller delivers real-time AFR data to the ECU via CAN bus, freeing up analog input channels while providing accurate, low-latency wideband readings throughout the RPM and load range.

Unlike the LSU4.9-based WB1 kit (HT-159976), this NTK variant is specifically preferred for methanol and high-ethanol content builds where the NTK sensor's characteristics better suit the fuel being used. The kit includes everything needed for installation - the controller, NTK sensor, 1200mm CAN cable, power supply cable, weld-on exhaust bung, and Quick Start Guide. The waterproof controller can be mounted directly in the engine bay close to the sensor for a clean installation. Note that NSP software compatibility is required - this kit is not compatible with Haltech Platinum Series ECUs or ESP software.
