Haltech HT-030030 SurLok 200A Connector Set Black and Red for Nexus R5 1AWG

Vehicle Fitment

• Designed specifically for the Haltech Nexus R5 ECU - suits the Nexus R5 battery power connection points (positive and negative)
• Universal - suits any Nexus R5 installation requiring replacement or spare SurLok power connectors

Fitment Notes

• These are 200A SurLok connectors, rated for the Nexus R5's 1 AWG battery cable connections. The Nexus R3 and PD16 use a different 120A SurLok variant (sold separately) suited to 4 AWG cable - do not use 200A connectors on those applications.
• The red connector is for battery positive (+); the black connector is for battery negative (-). Polarity must be observed - connecting incorrectly will damage the ECU.
• These are plug connectors only - no battery cable is included. Haltech's pre-terminated 1 AWG battery cable set (with SurLok connectors already fitted) is available separately for a ready-to-install solution.
• SurLok connectors crimp directly to 1 AWG battery cable - use appropriate high-current crimp tooling for a reliable, low-resistance connection.

Features

• 200A SurLok connector design rated for the Nexus R5's high-current power input requirements.
• Color-coded set - red for battery positive, black for battery negative - eliminating polarity confusion during installation.
• Plug-only design allows builders to crimp connectors onto custom-length 1 AWG battery cables for flexible installation routing.
• SurLok connectors provide a secure, vibration-resistant latching connection between the battery cable and the Nexus R5 ECU's power input terminals.
• Replacement connector set for damaged or missing SurLok plugs on existing Nexus R5 harnesses.
• Sold as a pair (one red + one black) - covers both positive and negative battery connections in a single purchase.

Specifications

• Part Number: HT-030030
• Connector Type: SurLok - Power Connector Set
• Current Rating: 200A
• Colors: Red (positive) and Black (negative)
• Cable Size: Suits 1 AWG battery cable
• Quantity: Set of 2 (1x red + 1x black)
• Application: Haltech Nexus R5 ECU - battery power connections

Included Components

• 1x 200A Red SurLok connector (battery positive)
• 1x 200A Black SurLok connector (battery negative)

Product Description

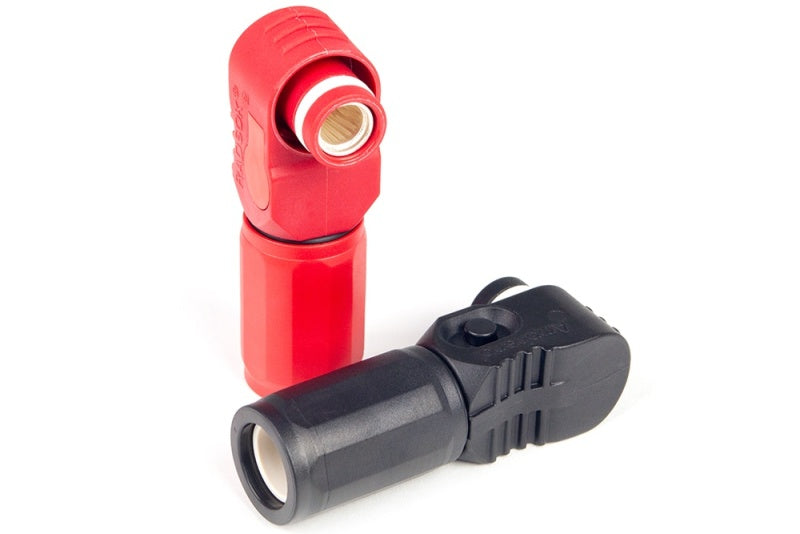

The Haltech HT-030030 is a matched pair of 200A SurLok power connectors - one red (positive) and one black (negative) - designed for the Nexus R5 ECU's battery power connections. The Nexus R5 requires 1 AWG battery cable for its high-current power supply, and these 200A SurLok connectors are the correct termination for those cables. The connectors crimp directly onto 1 AWG cable ends and latch securely to the corresponding SurLok terminals on the Nexus R5, providing a vibration-resistant, high-current connection that is simple to connect and disconnect during installation or servicing.

This set is the plug connectors only - no battery cable is included. Haltech also offers a pre-terminated 1 AWG battery cable pair with SurLok connectors already fitted for a ready-to-install solution. Note that the Nexus R3 and PD16 use a different 120A SurLok variant suited to 4 AWG cable - the 200A connectors in this set are not interchangeable with those applications. The red connector must always be used for battery positive and the black for battery negative; incorrect polarity will damage the ECU.
