Haltech HT-010300 Coolant Temp Sensor Small Thread M12 x 1.5 Delphi Plug Pins

Vehicle Fitment

• Universal - compatible with all Haltech ECU platforms including the Nexus S2, S3, R3, R5, Elite 550, 750, 1500, 2500, and plug-in ECU series
• Suitable for all engine configurations requiring coolant temperature monitoring via a standalone ECU
• Compatible with any cooling system housing, thermostat housing, or engine block with an M12 x 1.5 thread boss

Fitment Notes

• Thread size is M12 x 1.5 (small thread). Verify thread boss compatibility before installation. For larger thread applications, see HT-010302 (3/8 NPT) or HT-010304 (1/8 NPT with Deutsch DTM-2 connector).
• Maximum operating temperature is 127°C (260°F). This sensor is rated for coolant temperature use within normal engine operating ranges.
• Sensor type is NTC thermistor - directly compatible with standard Haltech analog temperature input calibrations in all Haltech ECU software.
• Includes matching Delphi plug and pins - no separate connector purchase required.

Features

• Measures engine coolant temperature (ECT) and delivers real-time data to the ECU for accurate fuel enrichment, ignition timing correction, idle speed control, and fan activation.
• M12 x 1.5 small thread fits a wide range of Japanese and European engine cooling system housings without adapters.
• Built to OEM specifications for reliable, consistent output across the full operating temperature range.
• NTC thermistor sensor type - natively calibrated in all Haltech ECU software for plug-and-play temperature accuracy.
• Weatherproof Delphi connector provides a secure, moisture-resistant connection in demanding engine bay environments.
• Compact brass construction withstands high-pressure cooling system environments.
• Matching Delphi plug and pins included - ready to wire without sourcing additional connectors.
• Critical for cold-start enrichment, warm-up fuel trims, fan control strategies, and overtemperature protection.

Specifications

• Part Number: HT-010300
• Sensor Type: NTC Thermistor (Coolant Temperature)
• Thread Size: M12 x 1.5 (Small Thread)
• Maximum Operating Temperature: 127°C (260°F)
• Connector: Delphi (included with plug and pins)
• Application: Universal - Engine Coolant Temperature

Included Components

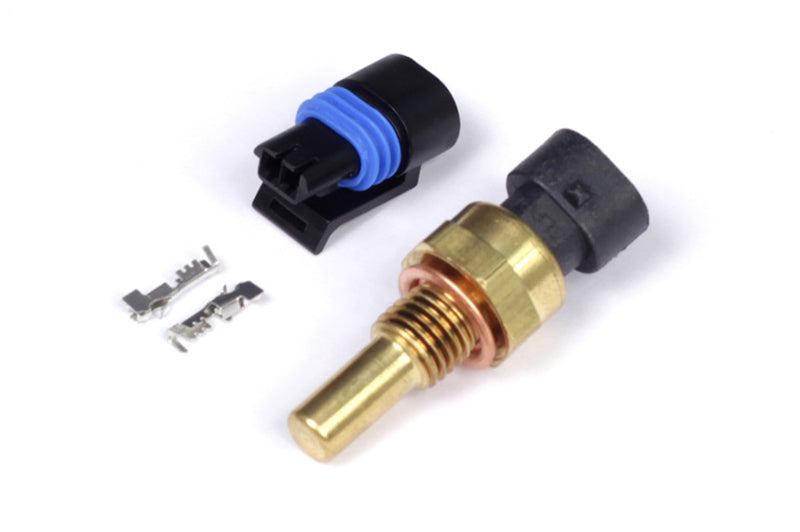

• 1x Haltech Coolant Temperature Sensor (M12 x 1.5 small thread)
• 1x Matching Delphi plug with pins

Product Description

The Haltech HT-010300 is a universal coolant temperature (ECT) sensor with an M12 x 1.5 small thread, designed for use with all Haltech ECU platforms. It threads directly into thermostat housings, engine blocks, cylinder heads, or custom coolant fittings that use the M12 x 1.5 thread - a common size across a wide range of Japanese and European engines. The sensor delivers accurate real-time coolant temperature data to the ECU, which uses this information to manage cold-start fueling, warm-up enrichment, idle speed during warm-up, cooling fan activation, and overtemperature protection strategies.

Built to OEM specifications and fitted with a weatherproof Delphi connector, the HT-010300 is a straightforward installation. The included Delphi plug and pins eliminate the need to source additional connectors, and the NTC thermistor output is natively calibrated in all Haltech ECU software platforms. For cooling system setups requiring a different thread size, Haltech also offers the HT-010302 (3/8 NPT large thread) and HT-010304 (1/8 NPT with Deutsch DTM-2 connector).
