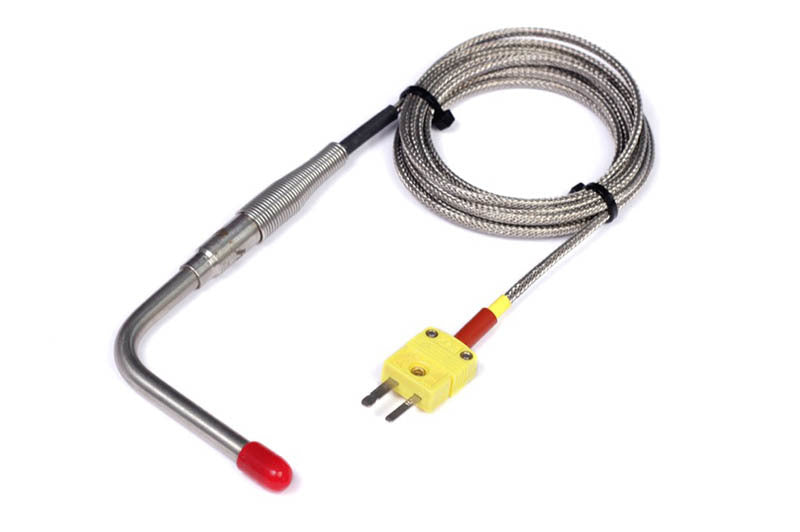

Haltech HT-010874 1/4in Open Tip Thermocouple 2.21M 87in EGT Mini K-Type Plug

Vehicle Fitment

• Universal - suits naturally aspirated and forced induction engines requiring exhaust gas temperature (EGT) or high-temperature monitoring
• Compatible with Haltech TCA2 and TCA4 thermocouple amplifiers for use with all Haltech ECU platforms including the Nexus and Elite series
• Also compatible with any device or data logger accepting a standard K-type thermocouple input via mini K-type connector

Fitment Notes

• Requires a Haltech TCA2 or TCA4 thermocouple amplifier - this thermocouple does not connect directly to the ECU without an amplifier.
• Fitting hardware (weld-in bung, nut, and ferrule) is NOT included. Order separately - common options include Haltech's 1/4" weld-on bung kits.
• The open tip design provides faster thermal response than sheathed probes but is more fragile - avoid direct contact with exhaust headers or other solid surfaces during installation routing.
• Cable length is 2.21M (87") - among the longest in the Haltech 1/4" open tip thermocouple series, suited to large-format chassis, tube-frame builds, or any installation with a long routing run between the exhaust sensor bung and a remotely mounted TCA amplifier.

Features

• Open tip (exposed junction) design delivers fast, accurate temperature response for real-time EGT, manifold, turbo inlet/outlet, or oil temperature monitoring.
• Operating range of 0°C to 1,100°C (32°F to 2,012°F) - covers the full spectrum from cold start to extreme EGT conditions under race boost levels.
• K-type thermocouple output - the industry-standard thermocouple type for automotive EGT applications, compatible with a wide range of amplifiers and data loggers.
• Terminated with a mini K-type connector for direct plug-in connection to Haltech TCA2 or TCA4 amplifier inputs.
• Suitable for both naturally aspirated and forced induction applications - from track day monitoring to full race builds.
• 1/4" probe diameter provides a balance of thermal mass and durability for exhaust and high-heat environments.
• 2.21M (87") cable length provides ample reach for large chassis builds, extended underbody routing, or cabin-mounted TCA amplifier installations in full-size or purpose-built race vehicles.

Specifications

• Part Number: HT-010874
• Type: Open Tip Thermocouple (Exhaust / High-Temperature)
• Thermocouple Type: K-Type
• Probe Diameter: 1/4"
• Cable Length: 2.21M (87" / 2210mm)
• Operating Range: 0°C to 1,100°C (32°F to 2,012°F)
• Connector: Mini K-Type (included)
• Required Amplifier: Haltech TCA2 or TCA4
• Fitting Hardware: Not included - order separately
• Application: Universal - EGT, manifold, turbo, oil, or high-temperature monitoring

Included Components

• 1x Haltech 1/4" Open Tip Thermocouple (2.21M / 87" cable length)
• 1x Mini K-Type connector (pre-terminated)

Product Description

The Haltech HT-010874 is a 1/4" open tip K-type thermocouple with a 2.21M (87") cable - one of the longest options in Haltech's 1/4" open tip thermocouple lineup. It is designed for exhaust gas temperature (EGT) monitoring and high-temperature measurement on naturally aspirated and forced induction engines where substantial cable routing distance exists between the exhaust sensor bung and the TCA amplifier. At over seven feet in length, it accommodates large tube-frame race cars, extended underbody runs, rear-engine configurations, and any build where the TCA amplifier is mounted deep inside the cabin or at a significant distance from the exhaust. The open tip design delivers rapid thermal response for capturing fast EGT changes during boost transitions and high-load race events. Operating range is 0°C to 1,100°C (32°F to 2,012°F).

The thermocouple terminates in a mini K-type connector and plugs directly into Haltech's TCA2 or TCA4 thermocouple amplifier, which is required for ECU or data logger integration - the probe does not connect directly to the ECU without an amplifier. Fitting hardware (weld-in bung, nut, ferrule) is sold separately. Haltech offers this thermocouple in a full range of cable lengths starting from 0.72M (HT-010861) through to this and additional longer variants to match any chassis routing requirement.
