Haltech

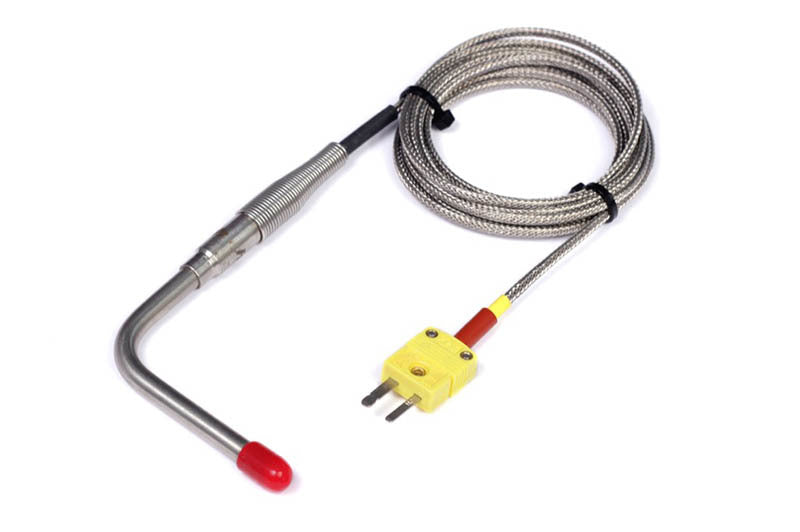

Haltech HT-010862 1/4in Open Tip EGT Thermocouple 0.84M 33in Mini K-Type Plug

Regular price
$104.95
Regular price
Sale price
$104.95
Shipping calculated at checkout.

In Stock: 2

Orders by 1pm PST ship same business day

Free Shipping w/2-4 Day Delivery

Authorized Dealer

Fitment Guarantee

90-Day Free Returns


Product Specification:

SKU:HALHT-010862

MPN: HT-010862

UPC: 9356450001021

Weight: 0.14 lb

Inventory: 2

Type: Programmer Accessories



Vehicle Fitment

  • Universal - suits naturally aspirated and forced induction engines requiring exhaust gas temperature (EGT) or high-temperature monitoring
  • Compatible with Haltech TCA2 and TCA4 thermocouple amplifiers for use with all Haltech ECU platforms including the Nexus and Elite series
  • Also compatible with any device or data logger accepting a standard K-type thermocouple input via mini K-type connector

Fitment Notes

  • Requires a Haltech TCA2 or TCA4 thermocouple amplifier - this thermocouple does not connect directly to the ECU without an amplifier.
  • Fitting hardware (weld-in bung, nut, and ferrule) is NOT included. Order separately - common options include Haltech's 1/4" weld-on bung kits.
  • The open tip design provides faster thermal response than sheathed probes but is more fragile - avoid direct contact with exhaust headers or other solid surfaces during installation routing.
  • Cable length is 0.84M (33") - a slightly longer reach than the HT-010861 (0.72M / 28.5"), making it suitable for installations where the TCA amplifier is mounted slightly further from the sensor location. Longer variants are available from Haltech for extended routing requirements.

Features

  • Open tip (exposed junction) design delivers fast, accurate temperature response for real-time EGT, manifold, turbo inlet/outlet, or oil temperature monitoring.
  • Operating range of 0°C to 1,100°C (32°F to 2,012°F) - covers the full spectrum from cold start to extreme EGT conditions under race boost levels.
  • K-type thermocouple output - the industry-standard thermocouple type for automotive EGT applications, compatible with a wide range of amplifiers and data loggers.
  • Terminated with a mini K-type connector for direct plug-in connection to Haltech TCA2 or TCA4 amplifier inputs.
  • Suitable for both naturally aspirated and forced induction applications - from track day monitoring to full race builds.
  • 1/4" probe diameter provides a balance of thermal mass and durability for exhaust and high-heat environments.
  • Cable length of 0.84M (33") provides additional routing flexibility over the shorter HT-010861 (0.72M / 28.5") for installations requiring slightly more reach.

Specifications

  • Part Number: HT-010862
  • Type: Open Tip Thermocouple (Exhaust / High-Temperature)
  • Thermocouple Type: K-Type
  • Probe Diameter: 1/4"
  • Cable Length: 0.84M (33" / 840mm)
  • Operating Range: 0°C to 1,100°C (32°F to 2,012°F)
  • Connector: Mini K-Type (included)
  • Required Amplifier: Haltech TCA2 or TCA4
  • Fitting Hardware: Not included - order separately
  • Application: Universal - EGT, manifold, turbo, oil, or high-temperature monitoring

Included Components

  • 1x Haltech 1/4" Open Tip Thermocouple (0.84M / 33" cable length)
  • 1x Mini K-Type connector (pre-terminated)

Product Description

The Haltech HT-010862 is a 1/4" open tip K-type thermocouple with a 0.84M (33") cable, designed for exhaust gas temperature (EGT) monitoring and other high-temperature measurement applications on both naturally aspirated and forced induction engines. It is the slightly longer sibling of the HT-010861 (0.72M / 28.5"), providing an additional 120mm of cable for installations where the TCA amplifier is mounted a little further from the sensor bung. The open tip (exposed junction) design delivers rapid thermal response - critical for capturing fast EGT changes under boost transitions and high-load race conditions. With a working range of 0°C to 1,100°C (32°F to 2,012°F), it covers everything from cold-start to extreme EGT levels.

The thermocouple terminates in a mini K-type connector and plugs directly into Haltech's TCA2 or TCA4 thermocouple amplifier, which is required for ECU or data logger integration - the probe does not connect directly to the ECU without an amplifier. Fitting hardware (weld-in bung, nut, ferrule) is sold separately. For shorter cable routing requirements, the HT-010861 (0.72M / 28.5") is available, and Haltech offers this thermocouple in a range of extended lengths for larger chassis and more complex routing needs.
