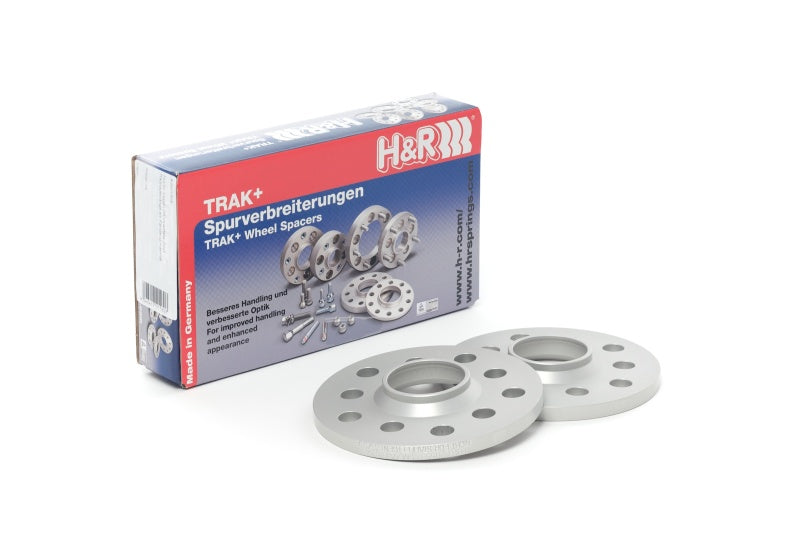

H&R 3075644 TRAK+ 15mm DRS Wheel Spacers for 2023-2025 Honda Civic Type R FL5

Vehicle Fitment

• 2023-2025 Honda Civic Type R (FL5, 2.0L Turbo I4, FWD)

Fitment Notes

• Fits the FL5 platform only (11th Gen Civic Type R); does not fit the FK8 (2017-2021) Civic Type R
• Sold as a pair - covers one axle (front or rear); order two pairs for all four corners
• DRS Series: spacer fits between the wheel and hub; requires exchanging existing wheel studs for the longer ones included in this kit
• Longer wheel studs are included - no separate hardware purchase required
• Alignment check is recommended after installation

Features

• Hubcentric design with 64.0mm center bore matches factory hub for precise load distribution and zero vibration
• Pushes each wheel outward 15mm (30mm total per axle) for a flush, aggressive fender stance
• Widened track improves cornering stability and reduces body roll for sharper, more responsive handling
• CNC machined from H&R's proprietary high-tensile aluminum/magnesium alloy - up to 70% lighter than comparable steel
• Hard anodized finish resists corrosion from road salt, brake dust, and repeated heat cycles on track
• TUV approved and manufactured under ISO 9001 quality assurance standards in Germany
• Compatible with OEM and aftermarket wheels sharing the 5x120 bolt pattern and 64mm center bore
• Includes all mounting hardware - extended studs and matching lug nuts - for a complete bolt-on installation
• Precision CNC machining ensures consistent thickness and exact fitment across both spacers in the pair

Specifications

• Thickness: 15mm per spacer (30mm total track widening per axle)
• Series: DRS (includes replacement extended wheel studs)
• Bolt Pattern: 5x120
• Center Bore: 64.0mm
• Stud Thread: M14x1.5
• Material: Proprietary H&R aluminum/magnesium alloy
• Finish: Silver (hard anodized); Black version available under part number 3075644SW
• Certification: TUV approved, ISO 9001 certified manufacturing
• Sold as: 1 pair (2 spacers - one axle)
• Manufactured in Germany

Included Components

• 2x H&R TRAK+ 15mm DRS Wheel Spacers (one pair)
• Extended wheel studs (included for DRS installation - replace factory studs)
• Matching lug nuts for wheel mounting to spacer studs

Product Description

The H&R TRAK+ 3075644 is a 15mm DRS Series hubcentric wheel spacer kit engineered specifically for the 2023-2025 Honda Civic Type R FL5. Each spacer pushes the wheel 15mm outward from the hub, widening the front or rear track by 30mm per axle. This results in a flush, near-fender stance that fills the FL5's wide wheel arches without any modifications to the body or suspension, giving the car a more aggressive, planted appearance whether on the street or at the track.

Unlike generic universal spacers, the H&R 3075644 is built to FL5-specific dimensions. The 64.0mm center bore is precision-machined to match the Civic Type R's factory hub exactly, ensuring all rotational load is transferred through the hub - not the studs. The DRS design requires swapping the factory wheel studs for the longer extended studs included in the kit, which thread into the existing hub holes and provide full stud engagement after the spacer is installed. The result is a factory-quality installation with no compromise in structural integrity.

Manufactured at H&R's ISO 9001 certified facility in Germany from their proprietary aluminum/magnesium alloy, these spacers are CNC machined for consistent precision and then hard anodized for long-term corrosion resistance. They carry full TUV approval, making them one of the most rigorously tested spacers available for the FL5. Whether you are running stock FL5 wheels and want a flush look, or using aftermarket 5x120 wheels and need precise fitment, the H&R 3075644 delivers a complete, bolt-on solution with all necessary hardware included.
