H&R 23038-1 VTF Adjustable Lowering Springs for Tesla Model 3 AWD 2017-2025

Vehicle Fitment

• 2017-2025 Tesla Model 3 (AWD / Dual-Motor) - all trims, including Long Range AWD and Performance AWD

Fitment Notes

• For AWD (dual-motor) Tesla Model 3 only - for RWD (2WD) Model 3 (Standard Range, Long Range RWD, Highland RWD), use H&R part number 23038-2
• Compatible with and without Tesla's factory adaptive/electronic dampers - all factory shock absorbers and electronic damper control functions are fully retained after installation
• Adjustable lowering range: Front 1.0-1.8 in. / Rear 1.2-1.8 in. - ride height is set via threaded spring perch adjustment and can be tuned anywhere within this range
• NOT for use with air suspension
• A post-installation alignment is strongly recommended after adjusting ride height
• Sold as a complete set of 4 springs (2 front, 2 rear) with adjustment hardware

Features

• Adjustable lowering range of 1.0-1.8 in. front and 1.2-1.8 in. rear - set the ride height anywhere within this range for a customized stance, from a subtle daily-driver drop to an aggressive flush fitment
• Fine-tune height via threaded spring perch adjusters - millimeter-precise height adjustment is possible without replacing the springs or dampers
• Fully compatible with Tesla's factory electronic damping systems - all electronic control functions remain fully operational after installation; no coding or recalibration required
• Progressive spring rate design maintains the Model 3's characteristic ride comfort while meaningfully reducing body roll and improving cornering response
• Lowers the center of gravity for improved lateral stability and a more planted, connected feel behind the wheel
• Works seamlessly with both standard and adaptive factory shock absorbers across all AWD Model 3 variants
• Manufactured from H&R's proprietary (HF) 54SiCr6 high-strength spring steel, rated at 290,000 psi tensile strength for exceptional durability and long-term resilience
• Shot-peened surface treatment extends spring service life by over 200% compared to untreated springs
• Powder-coated finish provides durable corrosion resistance
• 100% engineered, manufactured, and tested in Germany to ISO 9001 certified standards

Specifications

• Part Number: 23038-1
• Spring Type: VTF (Verstellbar Tieferlegungs Federn) Height-Adjustable Lowering Springs
• Front Lowering Range: 1.0-1.8 in. (25-45mm), adjustable
• Rear Lowering Range: 1.2-1.8 in. (30-45mm), adjustable
• Spring Rate Design: Progressive
• Spring Steel: (HF) 54SiCr6
• Finish: Powder-coated
• Quantity: Set of 4 springs with adjustment hardware (2 front, 2 rear)
• Warranty: 2 Years

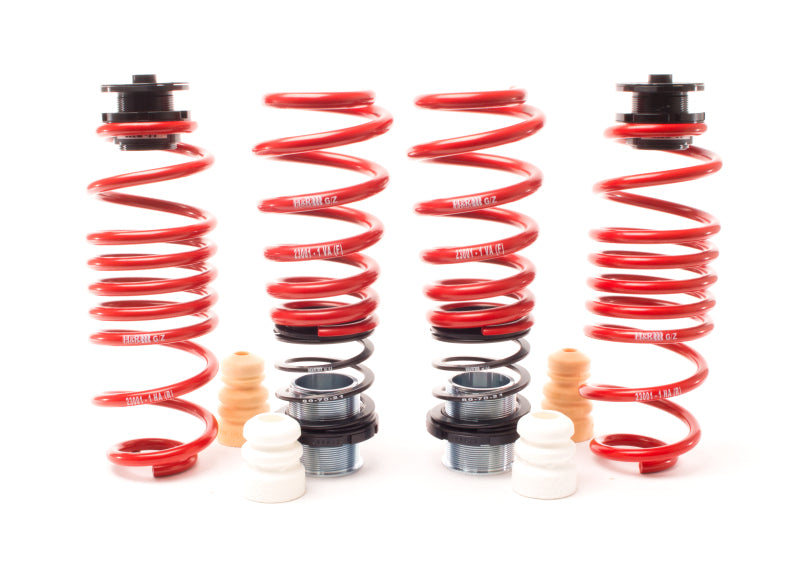

Included Components

• 2x Front VTF Height-Adjustable Lowering Springs
• 2x Rear VTF Height-Adjustable Lowering Springs
• Spring perch adjustment hardware

Product Description

The H&R VTF 23038-1 is a complete set of height-adjustable lowering springs engineered specifically for the Tesla Model 3 AWD (dual-motor), covering all all-wheel-drive variants from 2017 through present - including the Long Range AWD and Performance AWD. Unlike a fixed-drop spring, the VTF system uses a threaded spring perch design that allows ride height to be dialed in anywhere within a 1.0-1.8 inch front and 1.2-1.8 inch rear adjustment range, giving owners precise control over their stance without any hardware changes.

A key advantage of the VTF system for Tesla owners is its full compatibility with the factory adaptive damper system - the original shock absorbers are retained and all electronic control functions continue to operate exactly as they did from the factory. The progressive-rate springs maintain the Model 3's refinement at low-load while firming up under spirited driving to reduce body roll and improve cornering confidence. Built from H&R's 54SiCr6 spring steel, shot-peened for longevity, powder-coated for durability, and manufactured entirely in Germany to ISO 9001 standards, the 23038-1 is the adjustable-height upgrade for AWD Model 3 owners who want maximum control over their vehicle's stance. For the RWD/rear-wheel-drive Model 3, see part number 23038-2.
