H&R 23037-4 VTF Adjustable Lowering Springs for 25-26 BMW M5 Touring G99

Vehicle Fitment

• 2025-2026 BMW M5 Touring (G99) 4.4L S68 Plug-In Hybrid AWD

Fitment Notes

• Fits G99 M5 Touring only -- Sedan (G90) uses 23037-1 or 23037-3
• Compatible with standard dampers with and without electronic adjustment (EDC)
• Factory electronic damper control function remains fully unrestricted
• Front axle load rating up to 1,475 kg / Rear axle load rating up to 1,670 kg
• Stepless height adjustment within tested range -- no fixed preset positions
• Professional installation and alignment recommended

Features

• H&R VTF (Verstellbar TieferlegungsFedern) height-adjustable technology
• Precision adjustment collars and spring perches for coilover-style height tuning
• Stepless lowering adjustable to the micro-millimeter within tested range
• Progressive rate design lowers center of gravity while maintaining ride quality
• Reduces body roll and improves cornering stability and turn-in response
• Retains full OEM adaptive damper functionality
• 54SiCr6 high-tensile spring steel construction
• TUV approved with parts certificate
• Developed and tested on the Nurburgring

Specifications

• Part Number: 23037-4
• Type: VTF Adjustable Lowering Springs
• Front Lowering: 25-35mm (~1.0-1.4")
• Rear Lowering: 20-30mm (~0.8-1.2")
• Front Axle Load: Up to 1,475 kg
• Rear Axle Load: Up to 1,670 kg
• Spring Material: 54SiCr6 high-tensile spring steel
• Finish: Black powder coat
• Certification: TUV approved with parts certificate
• Made in Germany
• Warranty: H&R lifetime warranty

Included Components

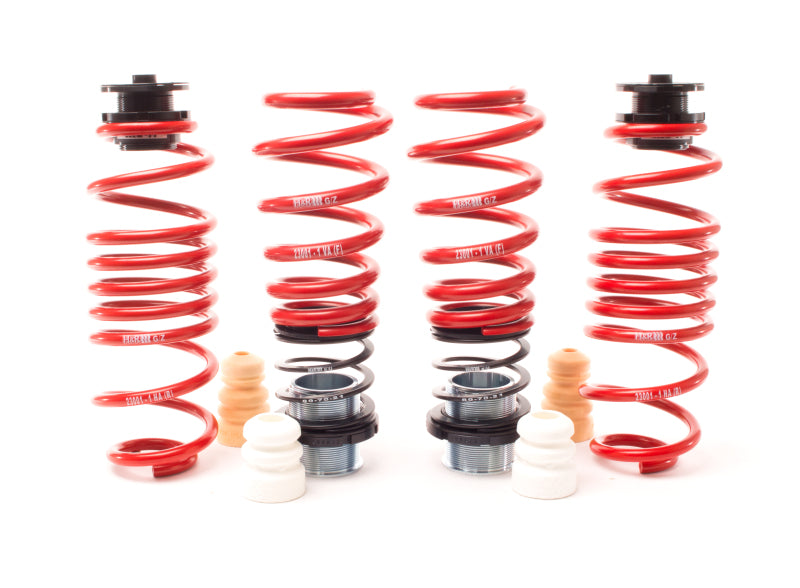

• 2x H&R VTF adjustable front lowering springs with adjustment hardware
• 2x H&R VTF adjustable rear lowering springs with adjustment hardware
• Precision adjustment collars and spring perches
• Parts certificate documentation

Product Description

The H&R 23037-4 is a VTF (Verstellbar TieferlegungsFedern) height-adjustable lowering spring set engineered specifically for the 2025+ BMW M5 Touring G99. Developed and tested on the Nurburgring, the VTF system delivers coilover-style ride height adjustability using precision collars and spring perches that allow stepless tuning within the approved range -- 25-35mm front and 20-30mm rear -- without modifying or compromising the factory electronic damper control system.

Manufactured in Germany from 54SiCr6 high-tensile spring steel, the progressive-rate springs lower the M5 Touring's center of gravity for flatter cornering, quicker turn-in, and reduced body roll while preserving the refined ride quality expected from BMW's flagship performance wagon. The VTF design retains full adaptive damper functionality, meaning comfort, sport, and sport+ modes all operate as intended at any selected ride height. TUV approved with parts certificate for road-legal use. M5 Sedan G90 owners should reference 23037-1 or 23037-3.
