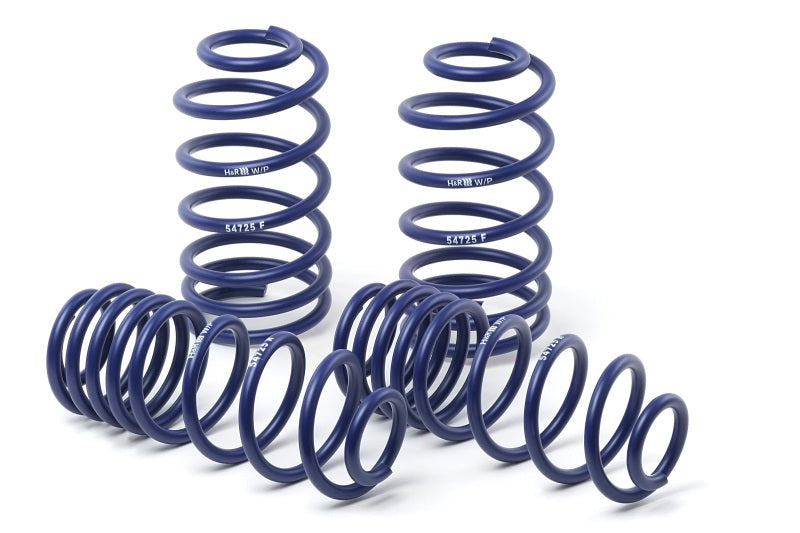

H&R 28714-2 Sport Lowering Springs for 23-26 Honda Civic Type-R/Integra Type S

Vehicle Fitment

• 2024-2026 Acura Integra Type S 2.0L VTEC Turbo (DE5, K20C1, FWD)
• 2023-2026 Honda Civic Type R 2.0L VTEC Turbo (FL5, K20C1, FWD)

Fitment Notes

• FL5/DE5 platform only -- does not fit FK8 Civic Type R (2017-2021, use 28714-1)
• Compatible with Adaptive Damping System (ADS)
• FWD models only
• Front lowering: ~0.75" (20mm)
• Rear lowering: ~0.60" (15mm)
• Wheel alignment required after installation

Features

• H&R Sport lowering springs
• 54SiCr6 spring steel -- 290,000 PSI tensile strength
• Progressive spring rate design
• Shot peened for 200%+ fatigue life increase
• Premium epoxy powder coat finish
• Reduces body roll and lowers center of gravity
• Reduced fender well gap for sportier stance
• 100% tested at H&R's ISO 9001 certified facility
• Made in Germany
• Limited lifetime warranty

Specifications

• Type: Sport Lowering Springs
• Front Lowering: ~0.75" (20mm)
• Rear Lowering: ~0.60" (15mm)
• Material: 54SiCr6 Spring Steel
• Tensile Strength: 290,000 PSI
• Spring Rate: Progressive
• Finish: Epoxy Powder Coat
• ADS Compatible: Yes
• UPC: 4048419319050
• Made In: Germany
• Warranty: Limited Lifetime

Included Components

• 1x Complete set of H&R Sport lowering springs (front and rear)

Product Description

The H&R 28714-2 is a set of Sport lowering springs specifically designed for the 2023-2026 Honda Civic Type R FL5 and 2024-2026 Acura Integra Type S DE5, both equipped with the 2.0L K20C1 VTEC Turbo engine and Adaptive Damping System (ADS). These springs lower the front approximately 0.75 inches (20mm) and the rear approximately 0.60 inches (15mm), reducing the fender well gap for a sportier stance while lowering the vehicle's center of gravity for improved handling, balance, and cornering stability. The progressive spring rate design retains superior ride comfort for daily driving while significantly reducing body roll during spirited driving and track sessions.

H&R Sport Springs are crafted from a special 54SiCr6 spring steel rated at 290,000 PSI tensile strength -- ensuring unrivaled resilience and durability that will not sag or set over time. Every spring is shot peened to increase fatigue life by more than 200%, then finished in a premium epoxy powder coat for long-term corrosion resistance. Each spring is 100% tested before leaving H&R's ISO 9001 certified production facility in Germany, ensuring consistent quality and precise spring rate accuracy across every set. These springs are engineered to work seamlessly with the FL5/DE5 platform's factory Adaptive Damping System, preserving the electronic damper's full range of comfort and sport modes. For the 2017-2021 FK8 Civic Type R, use H&R part number 28714-1 instead. H&R Special Springs has been manufacturing premium suspension components in Germany for over 45 years. Backed by H&R's limited lifetime warranty.
