H&R 70340 27mm Adjustable Front Sway Bar for Audi A3/S3 8V VW Golf R Tiguan AWD

Vehicle Fitment

• 2015-2020 Audi A3 Quattro (Typ 8V, 2.0T, AWD) - Premium, Premium Plus, Prestige
• 2015-2020 Audi S3 (Typ 8V, 2.0T, AWD) - Premium Plus, Prestige
• 2015-2019 Volkswagen Golf R (MK7, 2.0T, AWD)
• 2017-2019 Volkswagen Golf Alltrack (MK7, 1.8T, AWD) - S, SE, SEL
• 2019-2023 Volkswagen Arteon (2.0T, 4MOTION AWD) - SE 4MOTION, SEL 4MOTION, SEL R-Line 4MOTION, SEL Premium R-Line 4MOTION
• 2018-2023 Volkswagen Tiguan (2.0T, 4MOTION AWD) - S 4MOTION, SE 4MOTION, SE R-Line Black 4MOTION, SEL 4MOTION, SEL Premium 4MOTION, SEL Premium R-Line 4MOTION, SEL R-Line 4MOTION, SEL R-Line Black 4MOTION

Fitment Notes

• AWD / 4MOTION drivetrain required for all applications - does not fit FWD variants of the A3, Golf, Alltrack, or Tiguan
• Fits Typ 8V Audi A3 and S3 only (2015-2020 US market); does not fit the Typ 8Y generation (2022+)
• Fits MK7 Golf R (2015-2019) only; does not fit MK8 Golf R (2022+)
• Fits second-generation MK7-platform Tiguan (2018+); does not fit the first-generation Tiguan (2009-2017)
• This is a front sway bar only; for a complete front and rear upgrade, pair with H&R rear sway bar 71340 or purchase the complete kit 72340
• Professional installation recommended; no modifications to the factory subframe or end links are required

Features

• 2-position adjustable end link mounting points allow fine-tuning of front roll stiffness to suit street or performance driving preferences
• 27mm diameter - significantly larger than the OEM front sway bar - delivers a measurable increase in lateral stiffness and cornering grip
• Reduces front body roll for flatter, more neutral cornering behavior without affecting straight-line ride comfort
• Can be used to tune front-end understeer or oversteer balance in combination with a rear sway bar upgrade
• Precision forged ends with smooth, machined-like finish for precise end link geometry and consistent load transfer
• Crafted from special (hf) 50CrV4 high-tensile spring steel - the highest tensile strength available in H&R's sway bar program
• Shot-peened and heat-treated for maximum fatigue resistance and long service life
• Includes H&R exclusive urethane/Teflon composite sway bar bushings - squeak-free and lubrication-free for the life of the bar
• Epoxy powder-coated for long-term corrosion resistance
• TUV approved and manufactured under ISO 9001 quality assurance standards at H&R's facility in Germany
• Covered by H&R's Lifetime Warranty

Specifications

• Position: Front axle
• Diameter: 27mm
• Adjustability: 2-position (adjustable end link mounting holes)
• Material: 50CrV4 high-tensile spring steel
• Finish: Epoxy powder coat
• Bushing Material: Urethane/Teflon composite (included)
• Drivetrain: AWD / 4MOTION only
• Platforms: MQB (Audi 8V, VW MK7 Golf R, VW MK7 Alltrack, VW MK7-based Arteon, VW MK7-based Tiguan)
• Certification: TUV approved, ISO 9001 certified manufacturing
• Warranty: Lifetime
• Manufactured in Germany

Included Components

• 1x H&R 27mm Adjustable Front Sport Sway Bar
• 2x H&R Urethane/Teflon Composite Sway Bar Bushings
• 1x Hardware/Installation Kit

Product Description

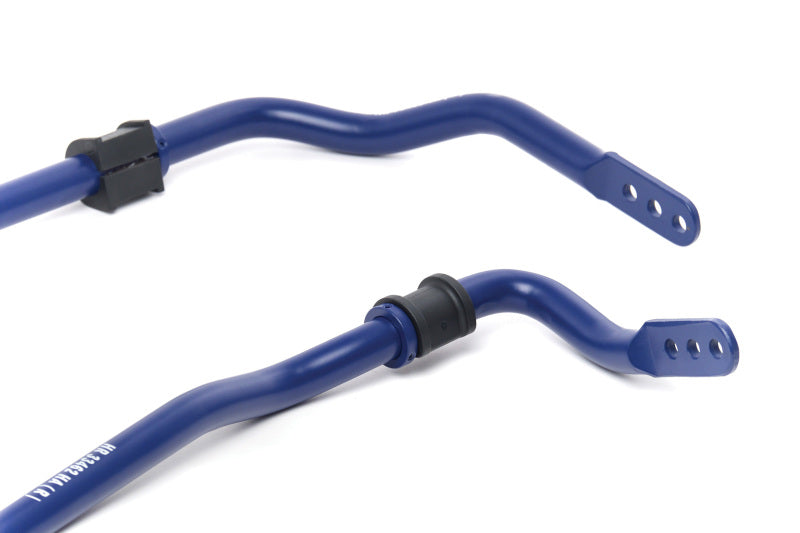

The H&R 70340 is a 27mm adjustable front sport sway bar engineered for the MQB-platform AWD applications shared by the 2015-2020 Audi A3 Quattro and S3, 2015-2019 Volkswagen Golf R, 2017-2019 Golf Alltrack, 2019-2023 Arteon 4MOTION, and 2018-2023 Tiguan 4MOTION. At 27mm, this bar is substantially stiffer than the OEM front stabilizer bar, increasing the front suspension's resistance to roll during cornering and delivering a noticeably flatter, more composed feel through turns. The 2-position adjustable end link mounting holes allow the driver to select between two stiffness settings - making it possible to tune the front-to-rear roll balance for either a neutral or mildly understeering characteristic, depending on driving style or road surface.

Unlike a lowering spring upgrade, a sway bar upgrade has virtually no impact on straight-line ride comfort or ride height - it only activates under lateral load. This makes the H&R 70340 an ideal first step for drivers who want a meaningful handling improvement without any compromise in daily drivability. The bar works with the factory end links and mounting points, requiring no modification to the subframe or chassis. H&R's proprietary urethane/Teflon composite bushing inserts are pre-installed and are engineered to be permanently lubrication-free, eliminating the creaking and maintenance issues common with standard polyurethane sway bar bushings.

Manufactured entirely in Germany from special (hf) 50CrV4 high-tensile spring steel, the H&R 70340 is shot-peened and heat-treated for long-term durability, then powder-coated for corrosion protection. It carries full TUV approval, meets ISO 9001 manufacturing standards, and is covered by H&R's Lifetime Warranty - the same warranty that applies to all H&R sway bars. For drivers looking to maximize chassis balance on their MQB AWD platform, H&R offers a companion rear sway bar (71340) and a complete front and rear kit (72340) that pairs this front bar with a 25mm non-adjustable rear bar.
