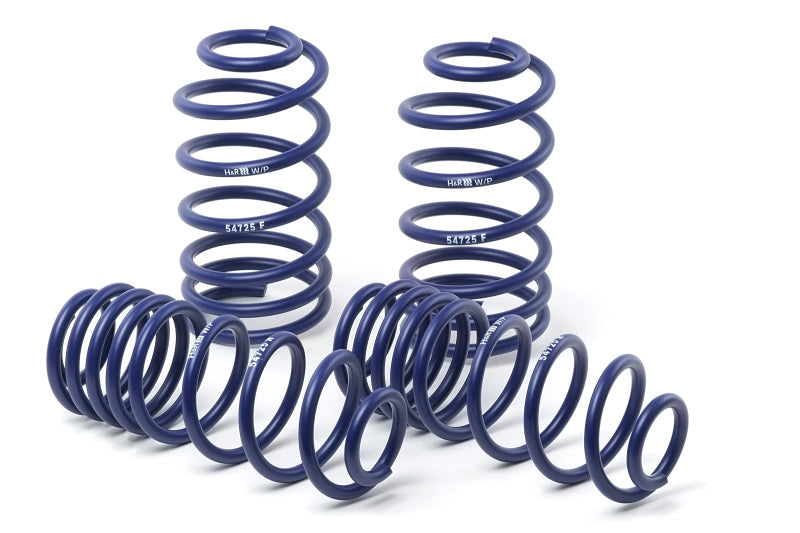

H&R 28972-1 Sport Lowering Springs for 2010-2015 Toyota Prius Hybrid (XW30)

Vehicle Fitment

• 2010-2011 Toyota Prius Base
• 2012-2015 Toyota Prius Two
• 2012-2015 Toyota Prius Three
• 2012-2015 Toyota Prius Four
• 2012-2015 Toyota Prius Five
• 2015 Toyota Prius One
• 2015 Toyota Prius Persona Series

Fitment Notes

• Fits 2010-2015 Toyota Prius 3rd Generation (XW30 chassis)
• Does NOT fit Prius c (compact hatchback)
• Does NOT fit Prius v (wagon/extended)
• Works with factory shocks or aftermarket shocks
• Complete spring set includes front and rear
• Wheel alignment recommended after installation

Features

• Reduces fender well gap for aggressive, sporty appearance
• Lowers vehicle center of gravity for reduced body roll
• Progressive spring rate design provides superb ride quality and comfort
• Improved handling characteristics without harsh ride
• Lower wind resistance improves aerodynamics and fuel efficiency
• Crafted from special 54SiCr6 high-strength spring steel
• Shot peened for increased spring life and fatigue resistance
• Epoxy powder coat finish for corrosion resistance
• Block set design ensures consistent performance
• 100% designed and manufactured in Germany

Specifications

• Part Number: 28972-1
• Brand: H&R
• Series: Sport Springs
• Type: Lowering Coil Spring Set
• Position: Front and Rear
• Front Lowering: Approximately 1.3 inches (30mm)
• Rear Lowering: Approximately 1.2 inches (30mm)
• Spring Rate: Progressive
• Material: 54SiCr6 High-Strength Spring Steel
• Finish: Epoxy Powder Coat
• Country of Origin: Germany
• Certification: TUV Approved, ISO 9001
• GTIN: 4048419232106
• Warranty: Limited Lifetime

Included Components

• 2x Front Lowering Springs
• 2x Rear Lowering Springs

Product Description

The H&R 28972-1 Sport Springs are engineered specifically for the 2010-2015 Toyota Prius XW30, delivering the perfect balance of aggressive stance, improved handling, and comfortable daily driving that H&R is renowned for. As H&R's number one selling product line, Sport Springs lower your Prius approximately 1.3 inches in front and 1.2 inches in rear, dramatically reducing the unsightly fender gap while lowering the center of gravity for noticeably reduced body roll through corners. The progressive spring rate design means the springs provide a comfortable, compliant ride during normal driving while becoming progressively firmer under spirited driving conditions, eliminating the harsh ride characteristics associated with lesser spring systems. Crafted from special 54SiCr6 spring steel with a tensile strength rating of 290,000 PSI, these springs are shot peened and epoxy powder coated for exceptional durability and corrosion resistance. The lower ride height also reduces wind resistance for improved aerodynamics, which can positively impact your Prius's already impressive fuel efficiency. These Sport Springs work seamlessly with your factory shock absorbers, though upgrading to performance shocks is always beneficial. Every H&R spring is produced at their ISO 9001 certified engineering and manufacturing facility in Germany, ensuring unrivaled quality and performance backed by a limited lifetime warranty.
