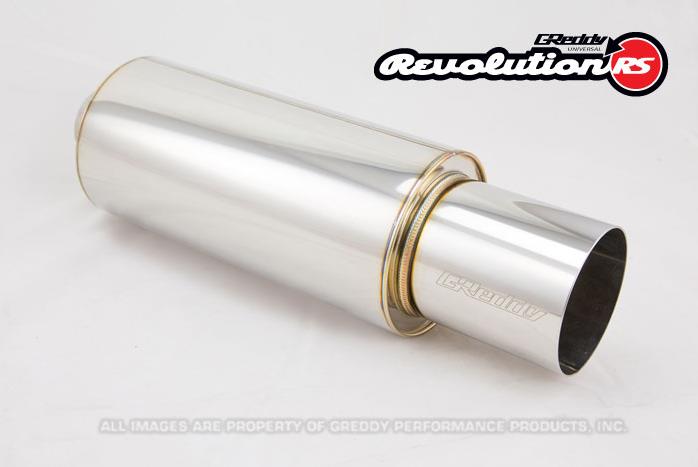

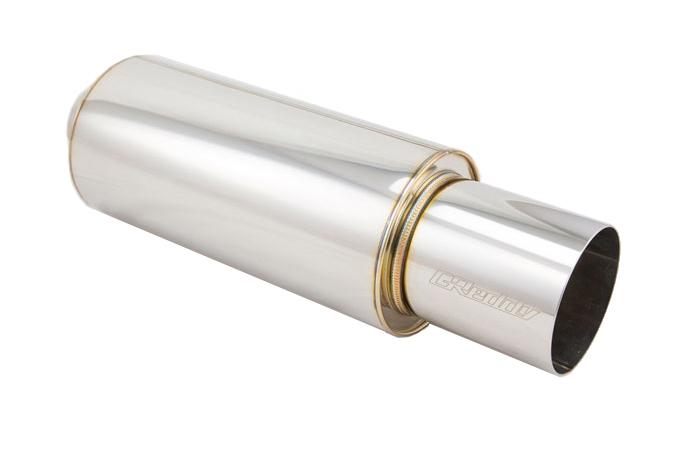

GReddy 11001125 Revolution RS Universal Muffler 2.5in 140mm Round

Vehicle Fitment

Universal - not vehicle specific. The GReddy 11001125 is intended for custom single or dual muffler exhaust builds and for vehicles not covered by GReddy's vehicle-specific exhaust lineup. Installation requires welding and cutting. This muffler is not a bolt-on replacement for any specific vehicle application.

Fitment Notes

• Installation requires welding and cutting - this is a universal muffler, not a direct bolt-on part. The builder must cut and weld the exhaust piping to integrate the muffler into the existing or custom exhaust routing. Professional fabrication is required.
• Inlet and outlet are both 63.5mm (2.5") diameter - compatible with 2.5" exhaust piping. Verify that the inlet and outlet sizes match your existing or planned piping before ordering.
• A 38mm (1.5") stub of 2.5" piping is included at the back of the muffler body as a welding extension to facilitate attachment of the rear piping or tip section during fabrication.
• The tri-mount tip design is compatible with optional GReddy burnt titanium tip overlays and optional muffler silencers - these accessories are sold separately and allow further customization of sound level and tip appearance after installation.

Features

• Straight-through internal muffler design maximizes exhaust flow by eliminating the directional changes, perforated baffles, and reverse-flow chambers used in conventional OEM muffler designs - the straight-through layout allows exhaust gas to travel directly from inlet to outlet through a packed sound-absorbing core, prioritizing flow efficiency and producing the clean, aggressive exhaust note characteristic of GReddy's Revolution RS line.
• 140mm (5.5") round muffler body in a compact 300mm (11.8") length delivers strong flow performance in a form factor small enough for tight exhaust routing layouts and custom builds where space between the muffler and the vehicle body, bumper, or suspension components is limited.
• High-temperature resistant sound suppression materials of various densities pack the muffler core - multi-density internal packing allows the muffler to manage different frequency bands with material of appropriate density for each range, producing a refined sound character rather than the single-density packing approach of lower-cost straight-through muffler designs.

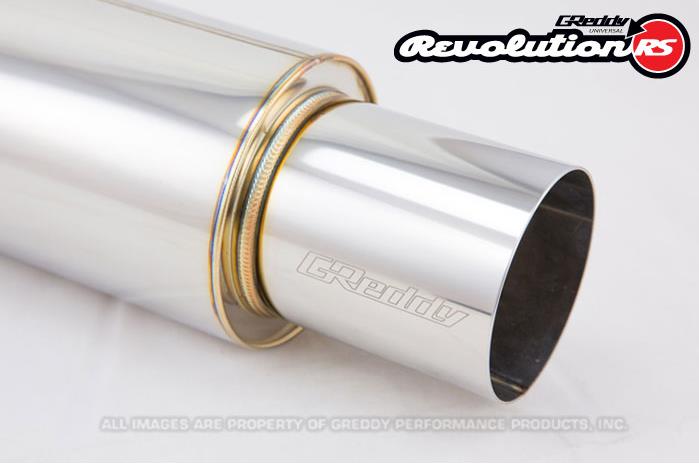

• Single-wall stainless steel tip with laser-etched GReddy logo is welded non-removably to the muffler outlet - 103mm (4.0") diameter and 120mm (4.7") length provide a visual presence appropriate for the 140mm muffler body without being disproportionately large. The single-wall construction keeps the tip profile slim while maintaining visual alignment with the muffler body diameter.
• Tri-mount tip design - the tip is mounted to the muffler body at three points, providing a more secure attachment than single-point or clamp-on tip mounting while also providing three mounting positions that accept the optional GReddy burnt titanium tip (sleeved over the existing tip) or an optional muffler silencer insert, allowing post-installation customization of the exhaust note and tip appearance.
• TIG-welded 304 stainless steel construction throughout - TIG welding produces cleaner, more precise welds than MIG at the flanges and seams, and 304 stainless provides high-temperature corrosion resistance for long-term exhaust service life across the temperature cycling ranges generated during normal and performance driving use.
• Suitable for custom single or dual muffler exhaust configurations - two 11001125 mufflers can be used together in a true dual exhaust build, or a single unit can serve as a replacement or upgrade muffler in a custom single-exit system.
• Limited Lifetime Warranty.

Specifications

• Part Number: 11001125
• Brand: GReddy
• Series: Revolution RS
• Type: Universal Muffler and Tip Set
• Muffler Shape: Round
• Muffler Body Diameter: 140mm (5.5")
• Muffler Body Length: 300mm (11.8")
• Internal Design: Straight-through
• Inlet Diameter: 63.5mm (2.5")
• Outlet Diameter: 63.5mm (2.5")
• Piping Extension (rear): L38mm (1.5") - 2.5" piping stub
• Tip Type: Single-wall stainless steel; GReddy logo; non-removable (welded)
• Tip Diameter: 103mm (4.0")
• Tip Length: 120mm (4.7")
• Tip Mount: Tri-mount (accepts optional titanium tip overlay or silencer)
• Material: TIG-welded 304 stainless steel
• Internal Packing: Multi-density high-temperature resistant sound suppression materials
• Installation: Requires welding and cutting - universal, not vehicle-specific
• Warranty: Limited Lifetime

Included Components

• 1x GReddy Revolution RS 140mm Round Universal Muffler - 300mm body length, 2.5" inlet/outlet, with welded 103mm single-wall stainless tip and 38mm rear piping extension

Product Description

The GReddy 11001125 is the Revolution RS 2.5" universal muffler and tip set - a 140mm round, straight-through muffler built for custom exhaust fabrication projects and for vehicles not covered by GReddy's vehicle-specific exhaust catalog. The Revolution RS is GReddy's racing-sport muffler line, designed around performance-first internal construction: a straight-through core packed with multi-density, high-temperature resistant sound suppression materials that prioritize exhaust flow efficiency while managing the sound frequencies produced by the straight-through design to deliver an aggressive but controlled exhaust note, rather than the raw, unfiltered sound of a simple open-ended straight pipe.

The 140mm (5.5") round body is 300mm (11.8") in length - compact enough for tight custom routing where clearance to vehicle body panels, bumper structures, or suspension components is a constraint. Both the inlet and outlet are 63.5mm (2.5") in diameter, and a 38mm piping stub is provided at the rear of the muffler body as a welding extension to simplify attachment of rear piping or a secondary tip section during fabrication. A 103mm (4.0") single-wall stainless steel tip with the GReddy laser-etched logo is welded non-removably to the muffler outlet. The tip uses a tri-mount attachment system - three-point mounting between the tip and muffler body - that accepts an optional GReddy burnt titanium tip overlay or an optional muffler silencer insert (both sold separately), allowing post-installation customization of tip appearance and sound character without removing or modifying the installed muffler.

Installation requires welding and cutting - this is not a bolt-on replacement for any vehicle-specific application. Fabrication experience and welding equipment are required. Two units can be used together for a custom true dual exhaust build, or a single unit as a replacement or upgrade muffler in a custom single-exit system. TIG-welded 304 stainless steel construction throughout. Backed by a Limited Lifetime Warranty.
