GReddy 12058005 10-Row Oil Cooler Kit Filter Reloc for Honda S2000 AP1/AP2

Vehicle Fitment

• 2000-2008 Honda S2000 AP1/AP2 (F20C/F22C)

Fitment Notes

• Designed for LHD (left-hand-drive) vehicles - core mounts in front of the driver-side bumper center opening with an air diversion panel
• WARNING: GReddy/GPP products are designed and sold for sanctioned off-road/competition-only, non-emissions-controlled vehicles. Use on public roads or highways is prohibited by law in the U.S. unless a specific regulatory exemption applies

Features

• Large 10-row GPP air-to-oil heat exchanger core mounted in an uninterrupted airflow location for maximum cooling

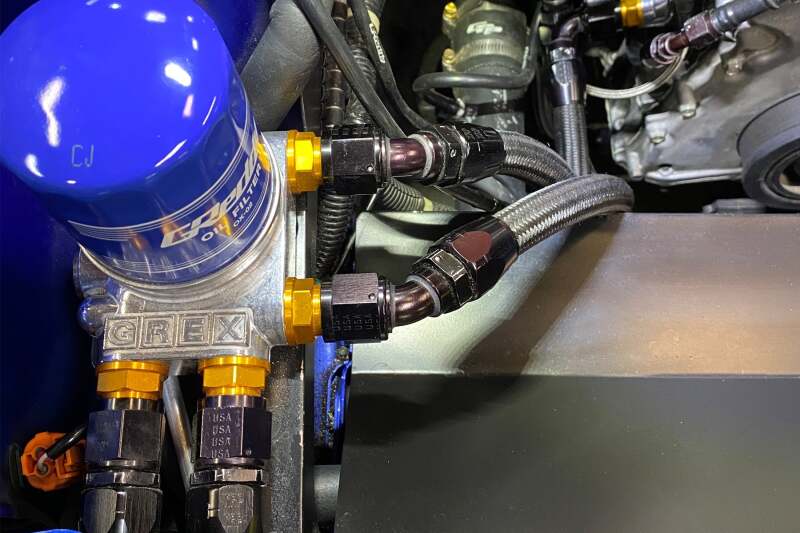

• GREX engine oil filter removal block plus external filter relocation block with internal thermostat for quick warm-ups

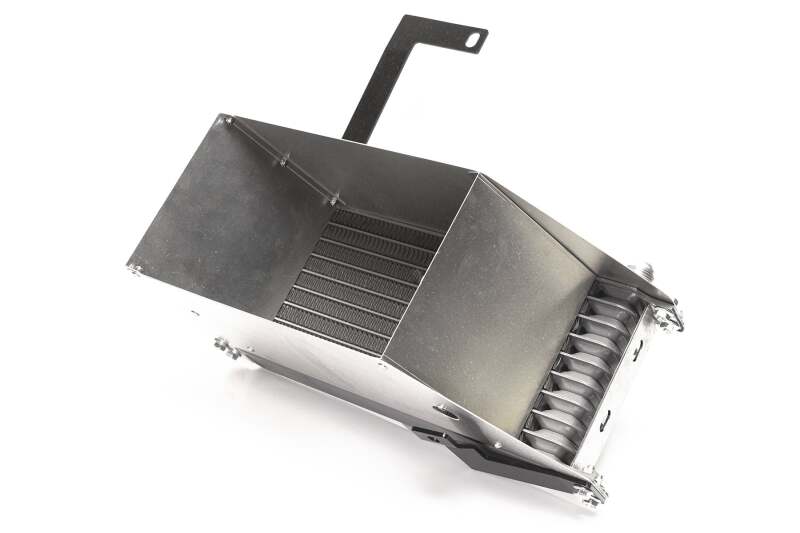

• Includes shroud for directed airflow through the core
• Pre-made high-performance -10 oil lines with matching AN fittings
• Aluminum air diversion panels included

Specifications

• Core: Grey NS1010G (+540cc / +0.57 quart oil capacity)
• Rows: 10
• Filter Relocation Thread: M20 x P1.5

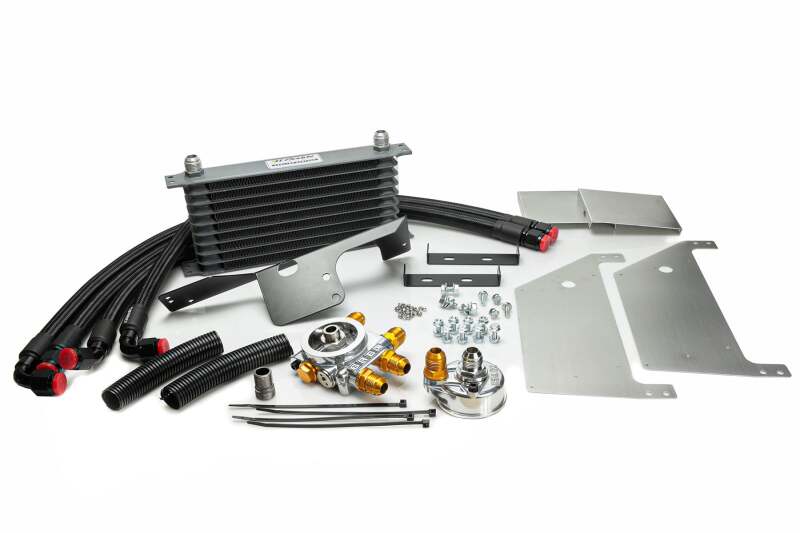

Included Components

• 1x 10-Row Oil Cooler Core with Shroud
• 1x GREX Engine Oil Filter Removal Block
• 1x External Filter Relocation Block with Internal Thermostat
• -10 Oil Lines with AN Fittings
• Aluminum Air Diversion Panels
• Mounting Brackets and Hardware

Product Description

The GReddy V2 oil cooler kit was purpose-built to protect the S2000's high-revving F20C/F22C engine, mounting the 10-row core in the bumper's central opening where airflow is uninterrupted rather than shoehorned into a corner. The included air diversion panel makes sure that airflow actually reaches the core instead of spilling around it.

Relocating the oil filter via the external block with a built-in thermostat keeps warm-up quick despite the added cooling capacity, and the pre-made -10 AN lines simplify what would otherwise be a fabrication-heavy install. It's a solid choice for S2000 owners running their engine hard on track who want to keep oil temps in check without hunting down individual fittings and hardware.
