Granatelli 430160B Billet Thermostat Housing 160 Deg 6061-T6 Hellcat TRX Trackhawk

Vehicle Fitment

• 2018-2021 Jeep Grand Cherokee V8 6.2L (Trackhawk)
• 2021-2024 Dodge Durango V8 6.2L (SRT Hellcat / SRT Hellcat Redeye)
• 2021-2024 Ram 1500 V8 6.2L (TRX)
• 2021-2024 Dodge 1500 V8 6.2L (TRX)

Fitment Notes

• Fits 6.2L supercharged Hellcat V8 (376 ci) engine applications only - does not fit 6.2L naturally aspirated or other displacement Hemi variants
• Uses factory exterior bolts for OE-style installation - no gasket required
• Can be installed with basic hand tools
• Includes a 1/2" pipe thread port for optional temperature sensor, pressure sensor, or flush-mount pipe plug - additional sensor not included
• Replaces the factory plastic thermostat housing with a billet aluminum upgrade

Features

• CNC-machined from 6061-T6 billet aluminum for superior strength, durability, and thermal resistance compared to the factory plastic housing
• Includes a 160°F high-flow thermostat designed to open earlier than the OEM unit for increased coolant circulation and reduced operating temperatures
• Flush-mount bolt design eliminates the flow-restricting bridge found inside the factory casting - delivers up to a 40% increase in coolant flow
• Reduces head pressure on the thermostat spring, extending thermostat service life
• 1/2" NPT port allows the addition of an aftermarket coolant temperature sensor or pressure sensor
• No gasket required - precision-machined mating surfaces ensure a leak-free seal
• Maintains OE exterior appearance using factory bolt locations
• Black anodized finish for a clean, corrosion-resistant look under the hood
• Heater bypass provision included
• Sold as a complete kit with housing, 160°F thermostat, and mounting hardware

Specifications

• Part Number: 430160B
• Brand: Granatelli Motor Sports
• Material: 6061-T6 Billet Aluminum
• Finish: Black Anodized
• Thermostat Included: Yes - 160°F High-Flow
• Opening Temperature: 160°F
• Coolant Flow Increase: Up to 40% over factory housing
• Sensor Port: 1/2" NPT (pipe thread)
• Water Neck Inlet: Stock diameter
• Heater Bypass Provision: Yes
• No Gasket Required: Yes
• Swivel: No
• Mounting Hardware: Included (uses factory exterior bolts)
• Weight: 1.0 lb
• Sold As: Complete Kit

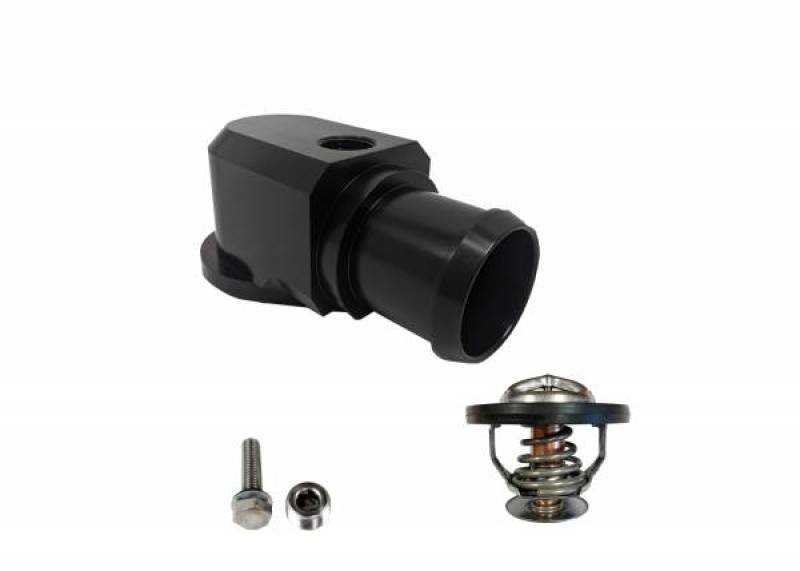

Included Components

• 1x Black Billet Thermostat Housing (6061-T6 Aluminum)
• 1x 160°F High-Flow Thermostat
• 1x Mounting Hardware Kit

Product Description

The Granatelli Motor Sports 430160B is a direct-fit billet thermostat housing upgrade for the 6.2L supercharged Hellcat V8 found in the Jeep Grand Cherokee Trackhawk, Dodge Durango Hellcat, and Ram/Dodge 1500 TRX. The factory plastic housing is prone to cracking under the thermal and pressure demands of the supercharged 6.2L, and its internal casting bridge restricts coolant flow through the thermostat bore. Granatelli's CNC-machined 6061-T6 billet aluminum housing eliminates that bridge entirely with a flush-mount bolt design, opening up as much as 40% more coolant flow and dramatically reducing the restriction the factory unit creates.

The kit includes a 160°F high-flow thermostat that opens earlier than the OEM unit, allowing coolant to begin circulating sooner and keeping operating temperatures lower - a meaningful upgrade for high-power Hellcat builds, especially in track or towing environments where heat management is critical. The housing also features a 1/2" NPT port for the optional addition of an aftermarket coolant temperature or pressure sensor, adding monitoring capability not available with the stock plastic housing. No gasket is required, and the housing uses the factory exterior bolt pattern to maintain the OEM look. Installation requires only basic hand tools.
