Gibson 69101 Dual Sport Cat-Back for 2005-2006 F-250/F-350 5.4L/6.8L V8

Vehicle Fitment

• 2005-2006 Ford F-250 Super Duty (2WD/4WD, 5.4L V8, 6.8L V10)
• 2005-2006 Ford F-350 Super Duty (2WD/4WD, 5.4L V8, 6.8L V10)

Fitment Notes

• Compatible with applicable Regular Cab, SuperCab/Extended Cab, and Crew Cab configurations.
• Compatible with applicable short-bed and long-bed configurations listed for the Super Duty platform.
• Flange connection to the catalytic converter is required.
• Designed for 2WD and 4WD applications.
• Verify cab and bed configuration against the vehicle before ordering.

Features

• Gibson Dual Sport cat-back performance exhaust system.
• 2.50-inch 409 stainless steel mandrel-bent tubing.
• Baffled and chambered SuperFlow muffler design.
• No internal muffler packing for consistent sound characteristics.
• Designed for an aggressive exhaust tone with reduced interior drone.
• Engineered to improve low-RPM horsepower and torque.

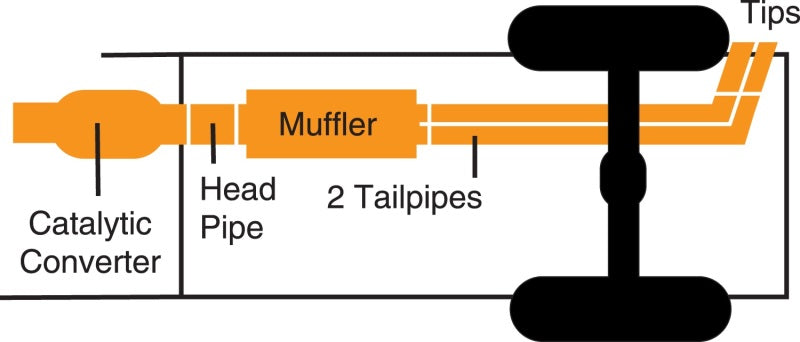

• Dual side-exit configuration behind the rear tire.
• 3.50-inch polished T-304 stainless steel round slash-cut tips.
• Clamp-on exhaust tips allow convenient installation and positioning.
• Factory-style hangers and installation hardware are included.
• Bolt-on installation requires no welding for the intended application.
• Designed for towing and general performance use.

Specifications

• Brand: Gibson Performance Exhaust
• Part Number: 69101
• System Type: Cat-Back Dual Sport Exhaust
• Vehicle Platform: Ford F-250/F-350 Super Duty
• Engine: 5.4L V8 / 6.8L V10
• Drivetrain: 2WD/4WD
• Tubing Material: 409 Stainless Steel
• Main Tubing Diameter: 2.50 inches
• Muffler Quantity: 1x
• Muffler Construction: Baffled and Chambered
• Muffler Body: 7-inch Round x 24-inch Long
• Muffler Inlet: 3.00-inch Center
• Muffler Outlet: 2.50-inch Dual Outlet
• Tip Quantity: 2x
• Tip Material: T-304 Stainless Steel
• Tip Size: 3.50 inches
• Tip Style: Polished Round Slash-Cut
• Exit Position: Behind Rear Tire

Included Components

• 1x Stainless Steel Headpipe
• 1x Stainless Steel SuperFlow Muffler
• 1x Driver-Side Tailpipe
• 1x Passenger-Side Tailpipe
• 1x Front Muffler Hanger
• 2x 2.50-inch Clamps
• 2x 3.00-inch Clamps
• 2x 3.50-inch Stainless Steel Exhaust Tips
• 1x Band Clamp Hardware Set
• 1x Tailpipe Bolt Kit

Product Description

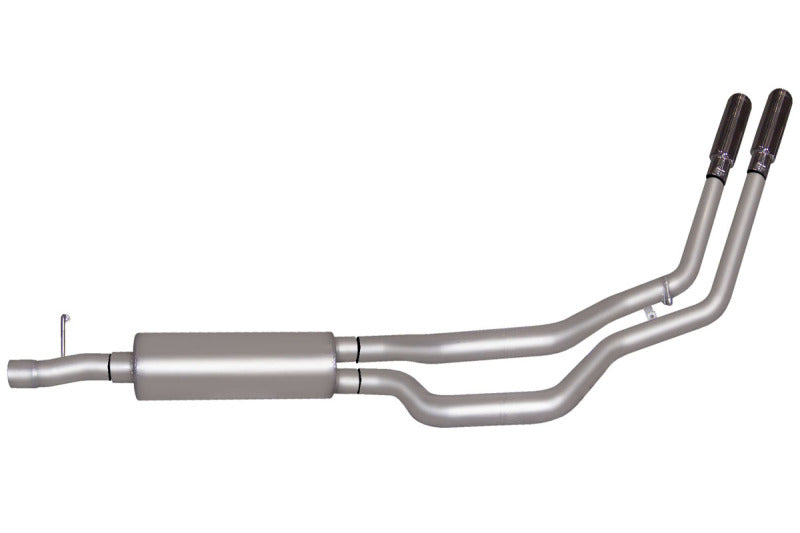

The Gibson 69101 Dual Sport cat-back exhaust system is designed for 2005-2006 Ford F-250 and F-350 Super Duty trucks equipped with the 5.4L V8 or 6.8L V10. It uses 2.50-inch 409 stainless steel mandrel-bent tubing and a baffled, chambered SuperFlow muffler to improve exhaust flow while producing a deep, aggressive exhaust tone.

The system exits behind the rear tire through dual polished 3.50-inch T-304 stainless steel slash-cut tips, giving the truck a performance-oriented appearance while keeping the exhaust outlet away from a trailer connection. Gibson designed the system for low-RPM horsepower and torque gains, making it suitable for towing and general performance use. Factory-style hangers, clamps, pipes, muffler, and exhaust tips are included for the specified bolt-on installation.
