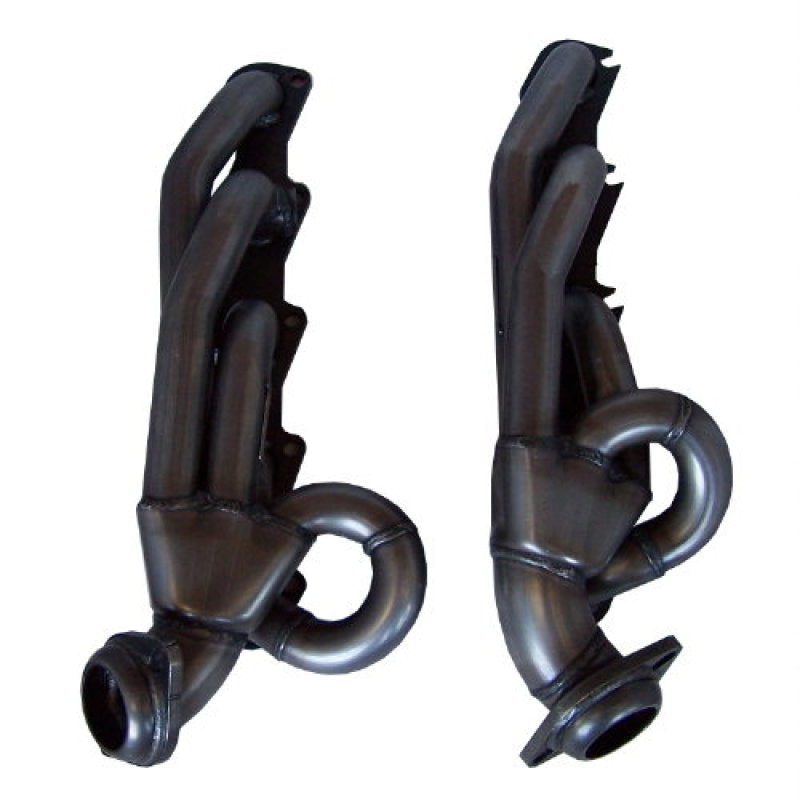

Gibson GP125S Short-Tube Headers for 99-05 Ford F250/F350/Excursion 6.8L V10

Vehicle Fitment

• 1999-2004 Ford F-250 Super Duty, 6.8L V10, XL/XLT/Lariat
• 1999-2004 Ford F-350 Super Duty, 6.8L V10, XL/XLT/Lariat
• 2000-2004 Ford Excursion, 6.8L V10, XLT/Limited

Fitment Notes

• With EGR fitting -- not for non-EGR trucks (use GP125S-1)
• Uses stock crossover pipe
• CARB EO# D-411-13, 50-state street legal
• No welding required

Features

• Dyno-tuned, engineered for this application
• Improved low and mid-range RPM power
• Cooler engine operating temperature
• Well suited for lowered/raised, street/off-road
• Direct replacement for factory manifolds
• No welding, OEM-style connections
• Won't affect factory warranty
• Meets EPA and CARB requirements

Specifications

• Style: Short tube (shorty)
• Material: 409 stainless steel
• Primary tube diameter: 1.5"
• Tube gauge: 16-gauge
• Flange thickness: 3/8", laser cut
• Finish: Polished
• Weight: 23 lbs

Included Components

• 2x Short Tube Headers
• Bolts/Studs
• Gaskets

Product Description

Gibson Performance Headers replace the restrictive factory exhaust manifolds on the 6.8L V10 Super Duty and Excursion, letting the engine breathe far more freely for real gains in usable low and mid-range horsepower and torque -- right where these trucks need it most for towing and daily driving. Dyno-tuned and engineered specifically for this application, these headers also help the engine run cooler for improved long-term reliability.

Mandrel-bent 1.5" primary tubing in heavy-duty 16-gauge 409 stainless steel delivers consistent, unrestricted flow, while laser-cut 3/8" port flanges resist warping and leaking. Installation is a straightforward bolt-on job using the stock crossover pipe -- no welding required, and factory warranty remains unaffected.

CARB EO# D-411-13 certified and 50-state street legal. Backed by Gibson's Lifetime Limited Warranty. Note: this version includes the EGR fitting -- for non-EGR-equipped trucks, the correct part is GP125S-1.
