Go Fast Bits 7304 WGA Wastegate Actuator for 97-07 Subaru Impreza WRX

Vehicle Fitment

• 1997-2007 Subaru Impreza WRX (factory TD04 turbo, AWD, 2.0L H4 turbo / 2.5L H4 turbo)

Features

• Bolt-on high-performance internal wastegate actuator for factory TD04 turbo applications
• Larger effective diaphragm area than OEM actuator for greater control authority over the wastegate flap
• Helps reduce boost taper at high RPM
• Improves boost stability under load and at higher exhaust backpressure levels
• Supports faster turbo spool response compared with a factory actuator
• Long-stroke design with 18mm rod travel for improved adjustment range
• Unique turnbuckle-style preload adjustment for easier fine tuning
• Compact actuator body with shorter overall height for better packaging
• Nomex-reinforced silicone diaphragm for heat resistance and durability
• Spring combinations allow configurable base boost pressure from 5 psi to 24 psi

Specifications

• Part Number: 7304
• Manufacturer: Go Fast Bits
• Product Line: WGA
• Type: Internal wastegate actuator
• Fitment Type: Direct bolt-on for factory TD04 turbo applications
• Rod Travel: 18mm
• Diaphragm Material: Nomex-reinforced silicone
• Base Boost Adjustment Range: 5 psi to 24 psi depending on spring combination and preload
• Preinstalled Springs: 5 psi + 7 psi
• Supplied Base Pressure as Shipped: 12 psi
• Additional Included Spring: 10 psi
• Placement: Turbocharger internal wastegate actuator

Included Components

• 1x Go Fast Bits WGA internal wastegate actuator
• 1x 5 psi spring
• 1x 7 psi spring
• 1x 10 psi spring
• 1x Mounting hardware set

Product Description

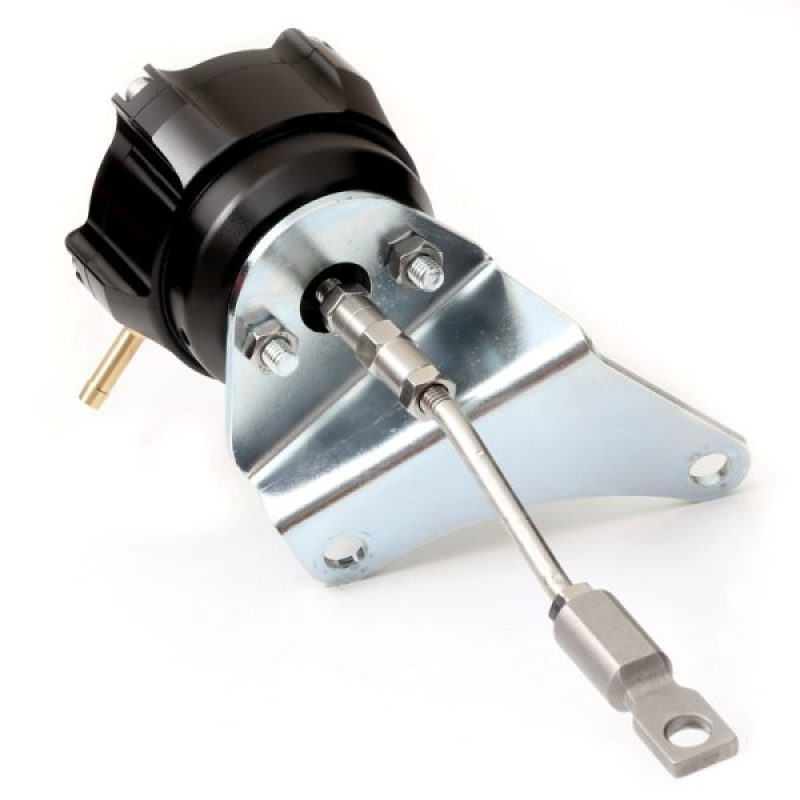

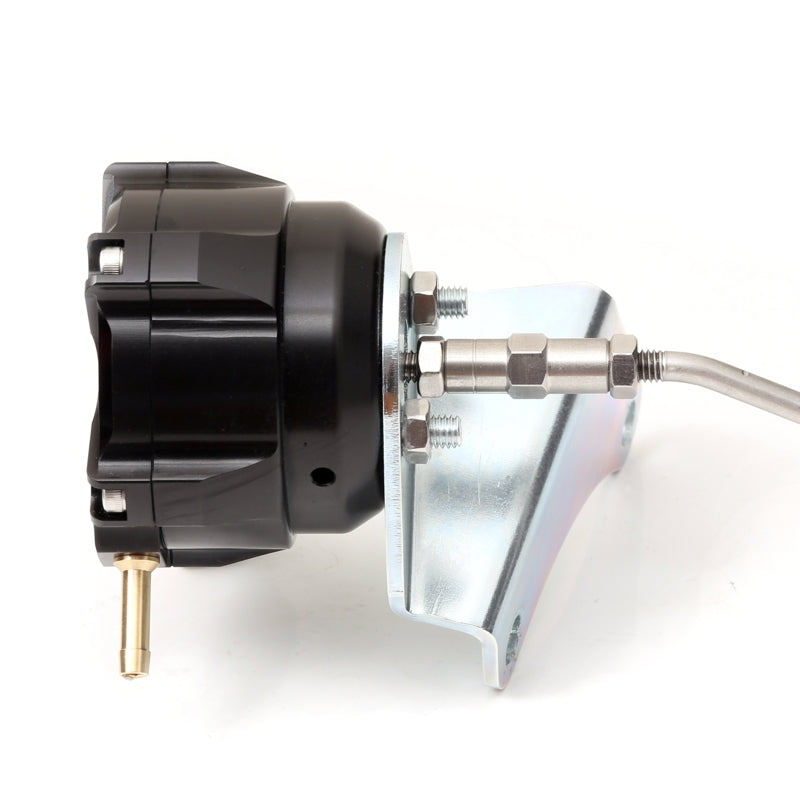

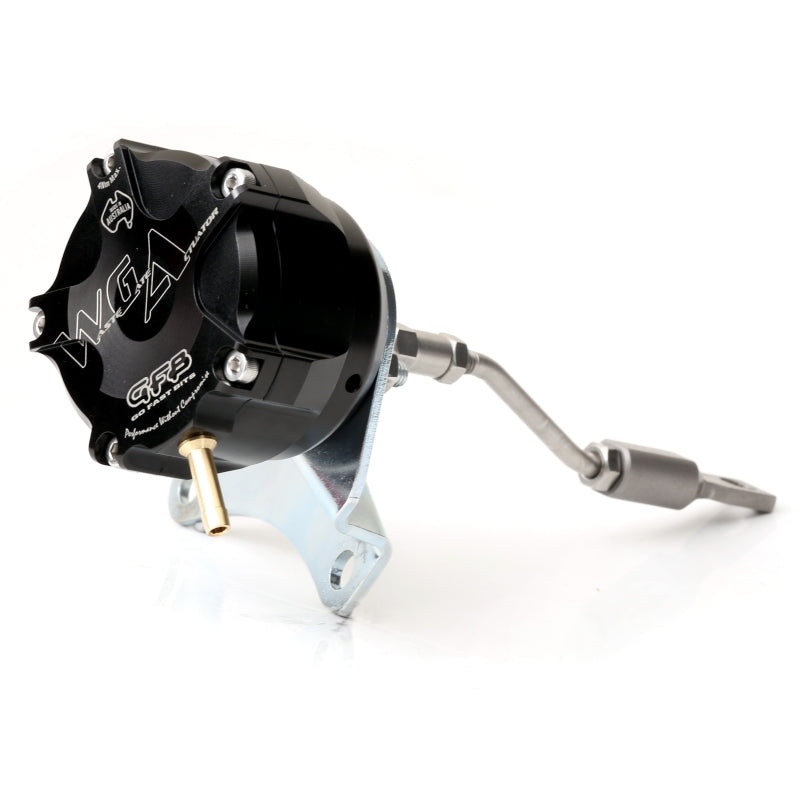

The Go Fast Bits 7304 WGA is a bolt-on internal wastegate actuator for 1997-2007 Subaru Impreza WRX models equipped with the factory TD04 turbocharger. It is designed to improve boost control compared with the OEM actuator by using a larger effective diaphragm area, which gives the actuator more authority over the wastegate flap under high load and exhaust backpressure conditions.

GFB equips the 7304 with a long 18mm stroke, compact housing, and a turnbuckle preload adjuster that allows finer tuning without the inconvenience of frequent spring swaps. As supplied, the actuator uses the 5 psi and 7 psi springs for a 12 psi base setting, and an additional 10 psi spring is included for more setup options. Overall spring combinations and preload adjustment allow a configurable base boost range from 5 psi to 24 psi.

This actuator is intended as a tuning tool and will increase boost pressure, so proper ECU tuning is required after installation. Fitment is confirmed for Subaru WRX applications from model year 1997 through 2007 with the factory TD04 turbo. No official 2025 vehicle coverage applies to this discontinued vehicle range because the supported application ends at 2007.
