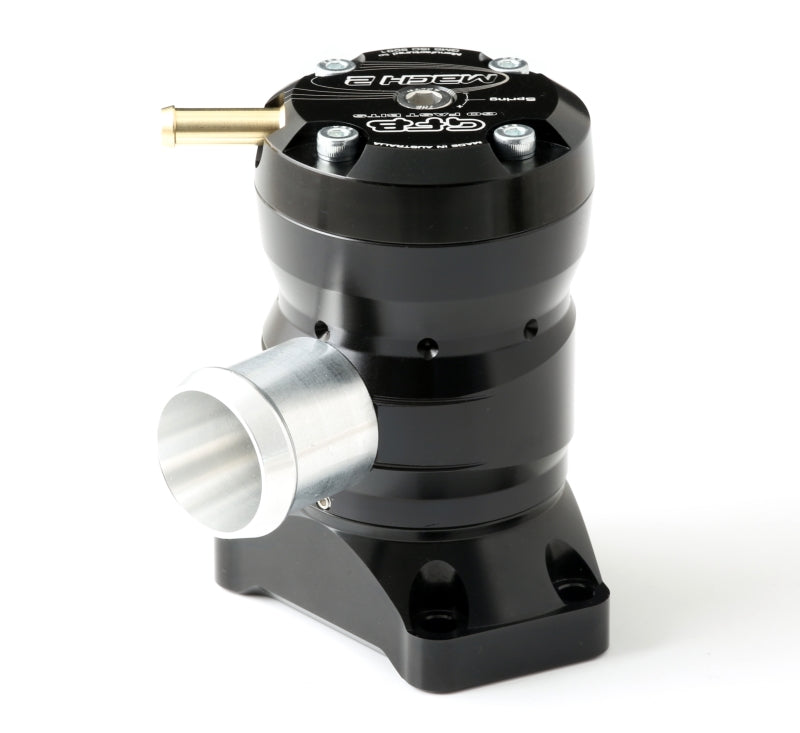

GFB T9110 Mach 2 TMS Recirculating Diverter Valve (Direct-Fit Turbo Upgrade)

Vehicle Fitment

• Hyundai i30 N (2.0L T-GDi, 2017-2021)
• Hyundai Veloster N (2.0L T-GDi, US: 2019-2020)
• Kia Stinger 2.0L (CK, 2017+)
• Kia Stinger 3.3L V6 Bi-Turbo (CK, 2017+)
• Genesis G70 2.0L T-GDi (2017-2020)
• Genesis G70 2.0L T-GDi (2021+, selected markets)
• Hyundai i30 N / Elantra N (2.0L T-GDi, 2021+ where applicable)
• Hyundai Kona N (2.0L T-GDi, 2021+)< /li>

Fitment Notes

• This diverter valve replaces the factory bypass valve in turbocharged 2.0L GDI engines listed above.
• Direct-fit kits--no additional adaptors required for these specified vehicles.
• Factory configuration: full recirculation (plumb-back) to maintain OEM metered airflow.
• Can be converted to vent-to-atmosphere with the optional GFB atmosphere kit (sold separately).
• Spring preload adjustment is built-in and seldom requires tuning changes.
• Ensure vacuum/plenum lines are connected correctly after installation.

Features

• GFB TMS (Turbo Management System) technology for faster boost recovery (up to ~30% faster)
• Pressure-balanced design holds boost indefinitely--ideal for high-pressure applications
• Stainless steel internals and corrosion-proof housing for durability
• Single vent outlet in recirculating configuration by default
• Compact design replaces factory DV with minimal packaging footprint
• Spring preload adjustable via 5 mm hex key for throttle response tuning
• Compatible with stock or lightly modified turbo systems--no ECU tuning required in most cases
• Lifetime warranty on materials and workmanship from GFB

Specifications

• Part Number: T9110
• Product Type: Mach 2 TMS Recirculating Diverter Valve
• Operation Mode: Recirculation (plumb-back) by default
• Maximum Boost Holding: 100+ psi (tested beyond usual turbo limits)
• Construction: Stainless steel piston, anodized aluminum body
• Spring Preload: Adjustable (0-3 mm cap measurement range)
• Compatibility: OEM turbocharger plumbing layouts for listed vehicles

Included Components

• 1x GFB Mach 2 TMS Diverter Valve (T9110)
• 4x Mounting screws (longer than stock to upgrade depth)
• 1x 5 mm hex key (for preload adjustment)
• Mounting instructions / technical sheet

Product Description

The **GFB T9110 Mach 2 TMS** diverter valve is an OEM-style upgrade designed for turbocharged 2.0L GDI platforms like Hyundai i30 N, Veloster N, Kia Stinger, Genesis G70, and related models. By replacing the factory bypass valve, it enhances throttle response and boost recovery while maintaining smooth recirculation--perfect for daily-driven turbo builds that demand reliability.

Equipped with GFB's TMS (Turbo Management System) technology, this valve aggressively holds boost and recovers pressure faster than the stock unit. Its pressure-balanced internal design ensures no boost leaks, even under extreme conditions. For those desiring a more aggressive "hiss," an optional atmosphere venting conversion kit is available. Backed by a lifetime warranty and robust stainless/aluminum construction, the T9110 is built to last in performance applications.
