GEN-Y Hitch GH-1713 MEGA-DUTY 3in Shank 6in Drop Hitch Dual-Ball 32000 lb 3inGEN

Vehicle Fitment

• Universal - Fits all vehicles equipped with a standard 3" receiver hitch

Fitment Notes

• Designed and tested for use in both drop and rise positions
• For drops of 12.5" or more, a Stabilizer Kit (GH-0100) is strongly recommended to reduce stress on the truck receiver
• Not recommended for use with non-GEN-Y towing attachments
• Tow capacity is limited by the lowest-rated component in the towing system
• Verify truck receiver size and required drop before ordering

Features

• Stacked tube design supports multiple GEN-Y attachments simultaneously - ball mount, pintle lock, hitch step, cargo rack, and more
• 3 adjustable positions via single-pin removal for fast, tool-free height changes
• Anti-wear pin holes protect the tube from stress and deformation over repeated adjustments
• Compatible with bumper-pull and pintle-style trailer couplings for maximum versatility
• Heavy-duty steel construction with durable powder coat finish for long-term corrosion resistance
• Exceeds SAE-J684 weight testing requirements; ISO 9001 certified manufacturer
• Made in the USA in Nappanee, IN using American steel
• Backed by a limited lifetime warranty

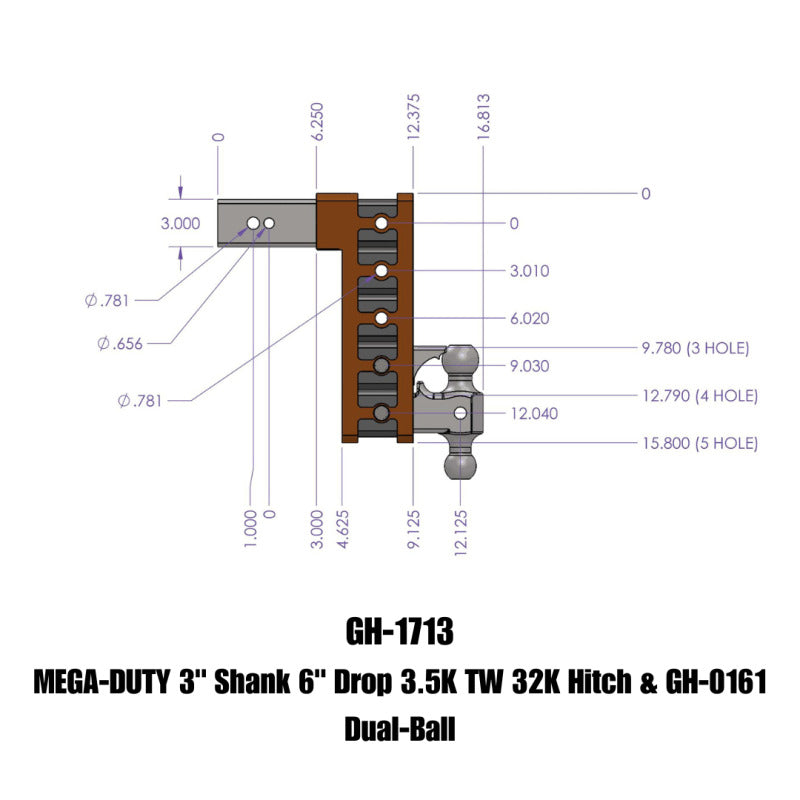

Specifications

• Part Number: GH-1713
• Shank Size: 3 inches
• Drop: 6 inches
• Adjustable Positions: 3
• Gross Towing Weight (GTW): 32,000 lbs
• Tongue Weight: 3,500 lbs
• Hitch Class: Class V / MEGA-DUTY
• Finish: Powder Coat
• Shipping Weight: 59 lbs
• Warranty: Limited Lifetime

Included Components

• 1x GH-1713 MEGA-DUTY 3" Shank 6" Drop Hitch
• 1x GH-0161 Dual-Ball Mount (2 5/16" and 2" balls)
• 2x Stainless Steel Hitch Pins

Product Description

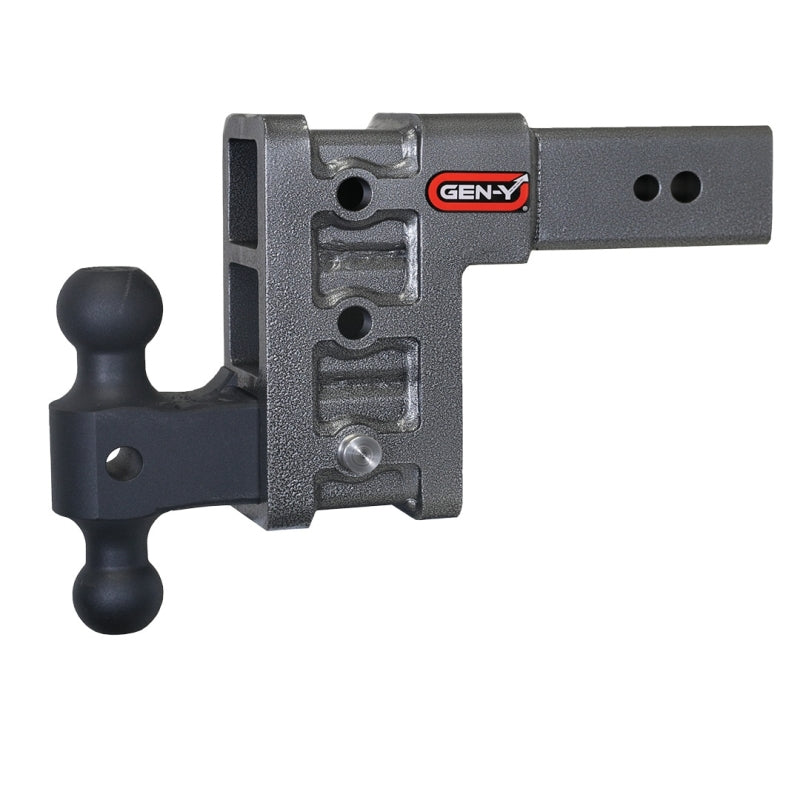

The GEN-Y Hitch MEGA-DUTY GH-1713 is a Class V adjustable drop hitch built for serious towing with a 3" receiver shank, 6" drop, and a 32,000 lb gross towing capacity with 3,500 lbs of tongue weight. Designed around GEN-Y's proven stacked tube platform, the GH-1713 allows multiple attachments to be run simultaneously - so you can tow with a ball mount while running a hitch step or cargo rack at the same time. Height adjustment is fast and simple: remove the single pin, reposition the ball mount, and re-pin - no tools required.

The GH-1713 ships as a complete package including the GH-0161 Dual-Ball Mount (2 5/16" and 2" balls) and two stainless steel hitch pins, making it ready to tow right out of the box. It is designed and tested for both drop and rise positions, adding flexibility for a wide range of trailer and vehicle combinations. Manufactured in Nappanee, IN using American steel and backed by a limited lifetime warranty, the GH-1713 exceeds SAE-J684 testing standards and is built to last under the demands of daily heavy-duty use.
