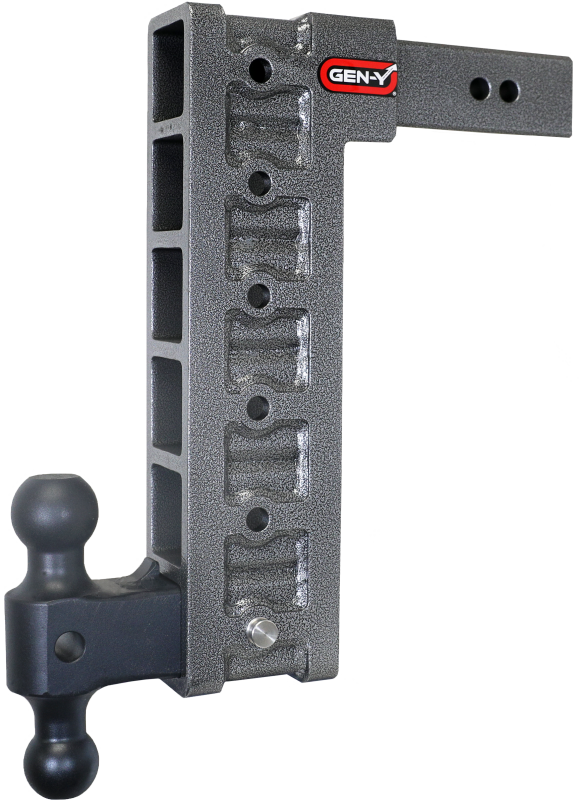

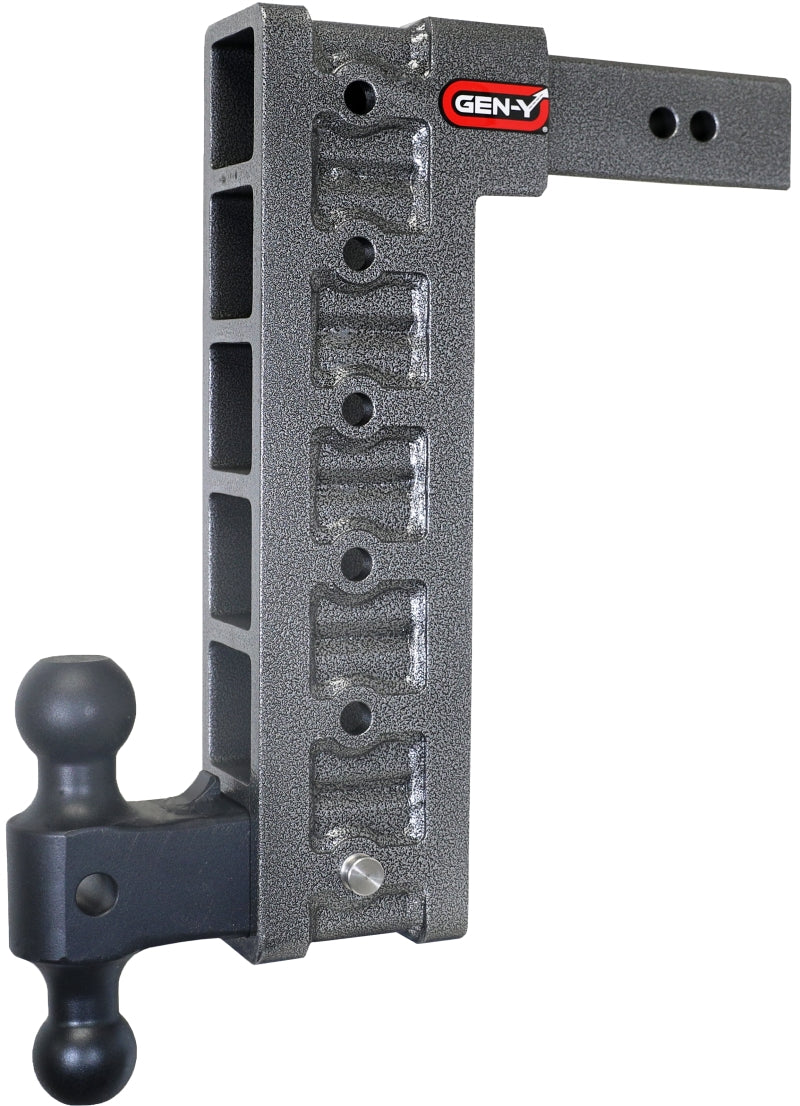

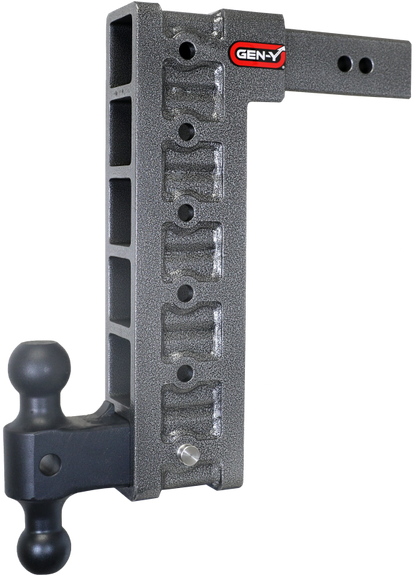

GEN-Y GH-616 MEGA-DUTY 15" Drop Hitch 21K LB 2.5" Receiver Dual Ball Stabilizer

Vehicle Fitment

• Universal Fit - Designed for any vehicle equipped with a Class V 2.5" x 2.5" receiver hitch, including heavily lifted trucks, three-quarter-ton trucks, one-ton trucks, and large SUVs requiring an extended drop to reach standard trailer coupler height

Fitment Notes

• Fits 2.5" x 2.5" receiver hitches only - does not fit 2" or 3" receivers
• 15" drop is engineered for heavily lifted trucks (6"+ lift) or high-riding vehicles where standard drop hitches cannot achieve a level tow
• Drop hitches exceeding 12" place added leverage on the vehicle receiver - some receiver hitch manufacturers reduce ratings by up to 50% at this drop length; always verify your vehicle's receiver rating before towing
• The included GH-0101 Stabilizer Kit is required for safe use at this drop length - it must be installed before towing
• Can be used in drop or rise position for additional setup flexibility
• Designed for use with 1.5" or smaller lunette rings when paired with a separately purchased pintle lock (GH-062)
• Not recommended for use with non-GEN-Y towing attachments
• Towing capacity is always limited by the lowest-rated component in the towing system (vehicle, hitch, trailer coupler)
• Verify your vehicle's receiver size, drop requirement, and receiver rating before ordering - also available in 18" drop with stabilizer kit (GH-617) and 15" drop with pintle lock and stabilizer kit (GH-626)

Features

• MEGA-DUTY Series with 21,000 lb gross trailer weight rating on a 2.5" receiver - purpose-built for heavily lifted Class V trucks that require a long drop to tow level
• Fully adjustable with 6 stacked receiver positions - drop or rise the ball mount via a single pin pull to fine-tune trailer height across 6 increments
• Stacked receiver tube design provides 6 independently usable 2.5" receiver slots for simultaneous use of multiple hitch-mounted accessories alongside trailer towing
• Includes GH-0101 Stabilizer Kit - screw-style adjustable stabilizer bars that tie the bottom of the drop hitch into the truck frame, eliminating receiver stress, slop, and wobble at extended drop lengths
• One-pin quick-adjust system with precision anti-wear pin holes for fast, rattle-free repositioning across all 6 positions
• Includes GH-061 Dual-Ball Mount for instant 2" or 2-5/16" ball coupler selection without swapping hardware
• Compatible with GEN-Y's Weight Distribution Shank for enhanced load management on heavier towing setups
• Designed and tested for use in both drop and rise positions for maximum setup versatility
• Exceeds SAE-J684 weight testing requirements - independently tested and certified
• Made in the USA and backed by a limited lifetime warranty against manufacturing and workmanship defects
• Fabricated from heavy-duty steel, sand-blasted, and finished in a durable silver-vein powder coat for long-lasting corrosion and weather resistance

Specifications

• Part Number: GH-616
• Series: MEGA-DUTY
• Receiver Shank Size: 2.5" x 2.5" (Class V)
• Hitch Class: Class V
• Drop: 15 inches
• Adjustment Positions: 6 stacked positions
• Gross Trailer Weight (GTW) Rating: 21,000 lb
• Tongue Weight Capacity: 3,000 lb
• Dual-Ball Sizes: 2" and 2-5/16"
• Lunette Ring Compatibility: Designed for 1.5" or smaller lunette rings (pintle lock sold separately - GH-062)
• Finish: Silver-vein powder coat
• Construction: Heavy-duty steel, sand-blasted prior to coating
• Compliance: Exceeds SAE-J684 weight testing requirements
• Country of Origin: USA
• Warranty: Limited lifetime against defects in manufacturing and workmanship

Included Components

• 1x GH-616 MEGA-DUTY Drop Hitch Shank (2.5" receiver, 15" drop, 6 stacked positions)
• 1x GH-061 Dual-Ball Mount (includes 2" and 2-5/16" hitch balls)
• 1x GH-0101 Stabilizer Kit (adjustable screw-style stabilizer bars with all mounting hardware, for 2.5" receivers)
• 2x Hitch Pins

Product Description

The GEN-Y Hitch GH-616 MEGA-DUTY Adjustable Drop Hitch is engineered specifically for heavily lifted trucks and high-riding Class V vehicles that require an extended 15" drop to achieve a level tow with standard-height trailers. With a 21,000 lb gross trailer weight rating and a 3,000 lb tongue weight capacity on a 2.5" receiver, the GH-616 delivers the towing performance that lifted three-quarter-ton and one-ton truck owners need - without compromising on capacity or build quality. Six independently adjustable stacked receiver positions allow the dual-ball mount to be precisely set at any increment within the 15" drop range, ensuring a perfectly level trailer connection regardless of truck height or trailer coupler geometry.

What sets the GH-616 apart from shorter drop hitches is the inclusion of the GH-0101 Stabilizer Kit - a mandatory safety component for any GEN-Y hitch exceeding 12" of drop. The stabilizer kit uses screw-style adjustable bars to physically connect the bottom of the drop hitch shank to the truck's frame, transferring towing loads off the receiver and into the frame directly. This eliminates the lateral movement, slop, and leveraged stress on the receiver that would otherwise occur at this drop length, and ensures the bottom of the ball mount remains completely stationary under load. The GH-0101 is designed for 2.5" receiver applications and includes all mounting hardware required for installation. The included GH-061 Dual-Ball Mount covers both 2" and 2-5/16" ball coupler sizes in a single removable attachment, and the stacked receiver tube architecture allows bike racks, cargo carriers, or other hitch-mounted accessories to occupy the upper positions while towing from a lower slot.

Every GH-616 is manufactured in the USA from heavy-duty steel that is sand-blasted and coated in a durable silver-vein powder coat built to resist corrosion, UV, and road wear over a lifetime of service. All GEN-Y Mega-Duty hitches are independently tested to exceed SAE-J684 weight testing standards, and the GH-616 carries GEN-Y's limited lifetime warranty against defects in manufacturing and workmanship. For users who also require pintle lock capability at this drop height, the GH-626 is the direct upgrade - including all of the same components as the GH-616 plus the GH-062 Pintle Lock out of the box.
