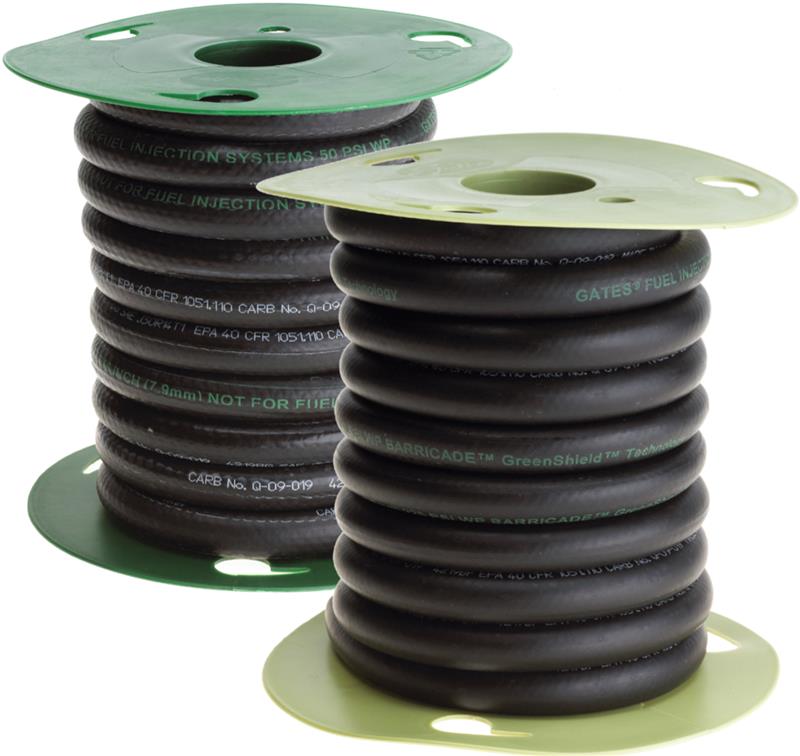

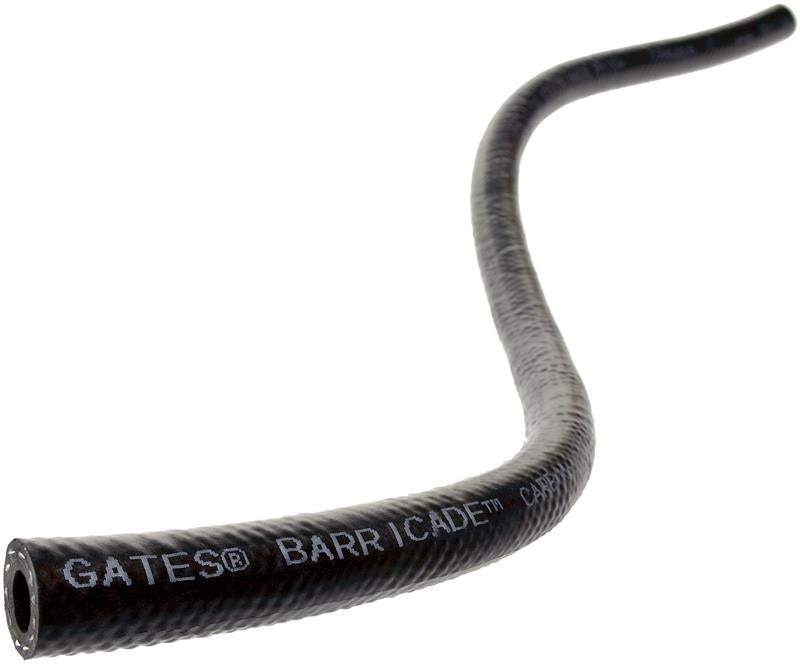

Gates 27341 3/8" Barricade Fuel Injection Hose 25ft

Vehicle Fitment

• Universal - suitable for fuel-line / fuel-injection return / vapor / fuel-line applications on passenger cars, light trucks, motorcycles, small engines and custom fuel systems

Features

• Low-permeation multi-fuel compatible construction
• Patented 5-layer barrier technology for minimal fuel vapor loss
• Reinforced with aramid spiral textile for high pressure resistance
• Oil, heat, ozone and abrasion-resistant outer cover for durability
• Compatible with gasoline (leaded/unleaded), diesel, biodiesel (up to B-100), ethanol/methanol blends (E-10, E-15, E-85), and gasohol fuels
• Wide temperature tolerance - from -40 °F to +257 °F (-40 °C to +125 °C) continuous; intermittent tolerance up to ~+302 °F (150 °C)
• High working pressure rating - suitable for many EFI/MPFI fuel system return or low-pressure feed lines
• 25 ft (7.62 m) bulk hose - cut to required length for flexible installation

Specifications

• Part Number: 27341
• Hose Type: Fuel Injection / Fuel Line Hose (Barricade series)
• Inside Diameter (ID): 3/8 in (0.375 in / ~9.5 mm)
• Length: 25 ft (7.62 m) continuous hose
• Maximum Working Pressure: 225 psi
• Temperature Range: -40 °F to +257 °F (-40 °C to +125 °C) continuous; intermittent up to +302 °F (150 °C)
• Material: HNBR tube, thermoplastic barrier, aramid reinforcement, abrasion-resistant cover
• Compliance: Meets SAE J30R14T2 (for low-permeation fuel hoses), EPA & CARB fuel-line requirements (non-submersible use only)

Included Components

• 1x Gates 27341 Fuel Injection Hose (25 ft continuous length)

Product Description

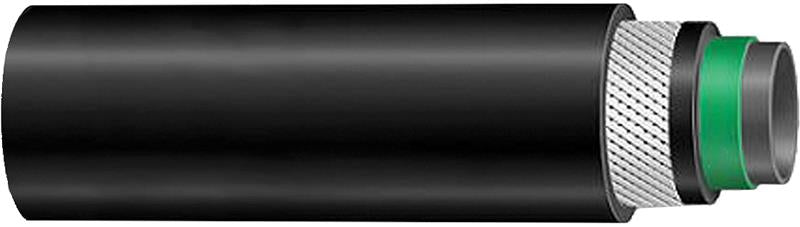

The Gates 27341 Barricade Fuel Injection Hose is a premium-grade, multi-fuel capable hose engineered for fuel-injection systems, fuel return lines, vapor or fuel-line routing, and custom fuel system applications. Its advanced 5-layer barrier construction - including an HNBR inner tube, thermoplastic barrier, and aramid reinforcement - provides exceptionally low fuel vapor permeation and strong resistance to pressure, fuel blends, heat, oil, ozone, and abrasion.

With an inside diameter of 3/8" and 25 ft continuous length, 27341 offers flexibility for varied installation needs - whether you are replacing aged hose, retrofitting older vehicles, or building custom fuel plumbing. Rated for up to 225 psi and a wide temperature range, it supports modern fuel types including gasoline, ethanol blends, methanol, diesel and biodiesel. Because it's sold in bulk, you can cut exactly the required length for clean, custom-fit installations.

Important Note: This hose is designed for fuel-line or return/vapor/fuel-line applications under pressure, but is not rated for in-tank submersion or continuous direct gas tank immersion. Always verify diameter, clamp compatibility, and local fuel blend before installation.
