Gates EHV114 Electric Heater Control Valve Nissan Titan 2004-2015 V8 5.6L OEM

Vehicle Fitment

• 2004-2015 Nissan Titan (All Trims, V8 5.6L VK56DE / VK56VD) - RWD / 4WD

Fitment Notes

• Fits all trim levels of the 2004-2015 Nissan Titan equipped with the 5.6L V8 engine - confirm your model year and engine code before ordering.
• Replaces OE Nissan/Datsun part numbers 92400ZH000, 92400ZT00A, and 92400ZT10A. Cross-references with NAPA Belts/Hose EHV114 and Four Seasons 74911.
• 2004-2005 Titan models used an older cylindrical heater control valve design - the EHV114 is a direct OE-updated replacement for those units and installs in place of the original without modification.
• This is an ELECTRIC (electronically actuated) heater control valve with a female electrical connector. It is not a vacuum-operated or cable-operated valve - confirm your vehicle uses an electric heater control valve before ordering.
• Comes with two coolant hoses for easier installation - no separate hose purchase required for a standard valve replacement.
• Mounting brackets and hardware are included as required for this application.
• Sold individually - one (1) heater control valve assembly per package.

Features

• OE-exact and application-specific design - the EHV114 is engineered specifically for the 2004-2015 Nissan Titan HVAC system, matching the original valve's dimensions, port sizing, electrical connector type, and coolant flow characteristics for a direct fit and function replacement without modification or adaptation.
• Precisely adjusts coolant flow to the heater core - the EHV114 operates under HVAC control module command to meter the volume of heated engine coolant entering the heater core, providing accurate, responsive cabin temperature control across the full range of the Titan's climate settings.
• 3D model imaging for precise design - Gates uses 3D modeling during development to verify dimensional accuracy against OE specifications before production, ensuring the valve's mounting interfaces, hose outlets, and electrical connector position match the original exactly.
• 100% leak tested assemblies - every EHV114 undergoes individual leak testing of the fully assembled valve before shipment, verifying that all sealing surfaces, port connections, and the valve body hold pressure without leaks under test conditions that replicate actual Titan coolant system operating pressures.
• 100% hand inspected - each valve is individually hand inspected as a final quality gate before packaging, catching dimensional, cosmetic, and functional issues that automated testing alone may not detect.
• High/low temperature testing - the EHV114 is validated across temperature extremes that surpass actual operating conditions, confirming that the valve's plastic body, seals, and electric actuator function correctly through the full thermal range experienced in Titan service from cold starts in extreme winter conditions to sustained towing operation.
• Thermal shock testing - the valve is subjected to rapid thermal cycling between temperature extremes to verify that the materials and construction maintain structural integrity and leak-free performance under the repeated expansion and contraction cycles of real-world Titan service.
• Salt spray testing - all metal components are tested under salt spray conditions to confirm corrosion resistance, with 301 stainless steel used for metal parts requiring durability against the coolant, road salt, and moisture exposure inherent in under-hood installation on a full-size truck.
• 100% virgin resin plastic outlets - the valve's coolant port outlets are molded from 100% virgin (never recycled) plastic resins, ensuring the dimensional consistency, structural strength, and chemical resistance required to maintain leak-free hose connections across the full service life of the valve in a heavy-duty truck application.
• Includes coolant hoses and hardware - the EHV114 ships with two coolant hoses and any required mounting brackets and hardware, providing everything needed for a complete valve replacement without separate component sourcing.

Specifications

• Part Number: EHV114
• Alternate Part Numbers: GATEHV114, EHV114
• Brand: Gates Corporation
• Part Type: Electric HVAC Heater Control Valve (Electric Coolant Control Valve)
• Actuation Type: Electric - female electrical connector
• Plastic Outlet Material: 100% virgin resin
• Metal Component Material: 301 stainless steel
• Overall Material: Plastic / Stainless Steel / Rubber
• OE Cross Reference: Nissan/Datsun 92400ZH000, 92400ZT00A, 92400ZT10A
• Additional Cross Reference: NAPA Belts/Hose EHV114; Four Seasons 74911
• Testing: 100% leak tested (fully assembled); 100% hand inspected; high/low temperature, thermal shock, and salt spray tested
• Mounting Hardware: Included as required
• Coolant Hoses: Two (2) included
• Warranty: Gates lifetime warranty (life of goods or published recommended replacement interval)
• Quantity: Sold individually (1x heater control valve assembly)

Included Components

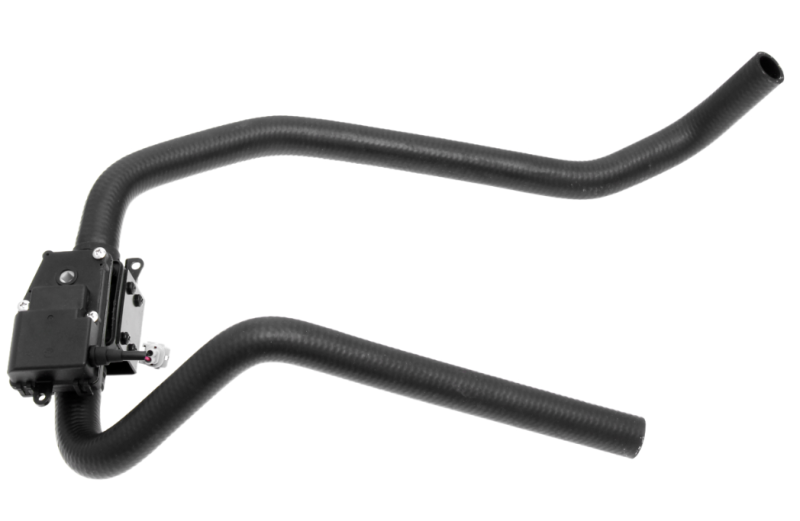

• 1x Gates EHV114 Electric Heater Control Valve
• 2x Coolant Hoses
• Mounting brackets and hardware (as required)

Product Description

The Gates EHV114 is an OE-exact electric heater control valve for the 2004-2015 Nissan Titan, replacing Nissan/Datsun OE part numbers 92400ZH000, 92400ZT00A, and 92400ZT10A. The heater control valve regulates the flow of hot engine coolant into the Titan's heater core - when the HVAC control module commands heat, it opens the valve electrically, allowing warmed coolant to circulate through the core where blower fan air picks up the heat before entering the cabin. Failure of this valve manifests as either a complete loss of cabin heat regardless of thermostat setting, or a valve stuck open causing the heater to remain active and the windshield to fog regardless of the HVAC mode selected. On 2004-2005 Titans specifically, the original design used an older cylindrical valve format - the EHV114 is the updated OE-equivalent replacement that installs directly in place of the original without modification.

Gates engineers the EHV114 to OE specifications using 3D model imaging to verify dimensional accuracy before production, ensuring the valve's coolant port outlets, electrical connector position, mounting interface, and body dimensions match the Nissan OEM part. Plastic outlets are molded from 100% virgin resins to maintain the dimensional consistency and chemical resistance required for long-term leak-free hose connections under the thermal cycling of a heavy-duty truck application. Metal components including brackets and hardware use 301 stainless steel for corrosion resistance against coolant, road salt, and moisture. Every assembled valve is individually leak tested and hand inspected before shipment, and validated through high/low temperature testing, thermal shock cycling, and salt spray testing - all conducted at conditions surpassing actual Titan service requirements.

The EHV114 ships as a complete replacement kit including the valve assembly, two coolant hoses, and all required mounting hardware - providing everything needed for installation without supplemental parts sourcing. This is an electric valve with a female electrical connector requiring connection to the Titan's HVAC control system; confirm your vehicle uses an electrically actuated heater control valve before ordering. The EHV114 is backed by Gates' lifetime warranty covering defects in materials and workmanship for the life of the goods or the published recommended replacement interval, whichever applies.
