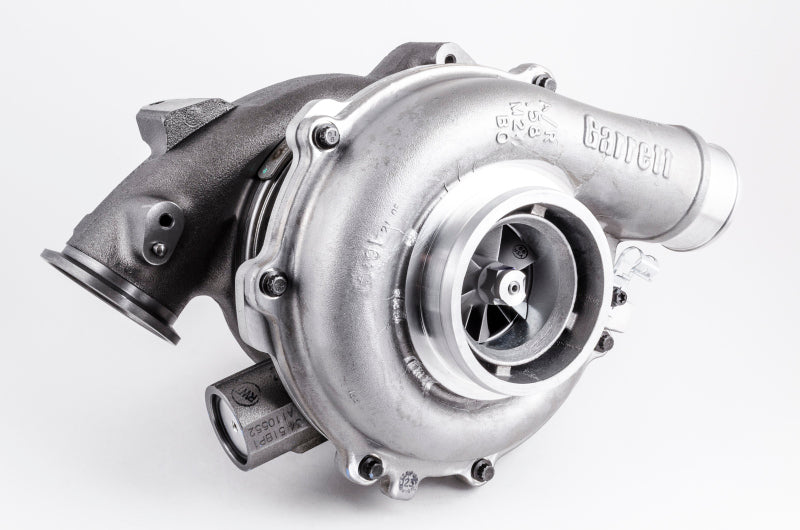

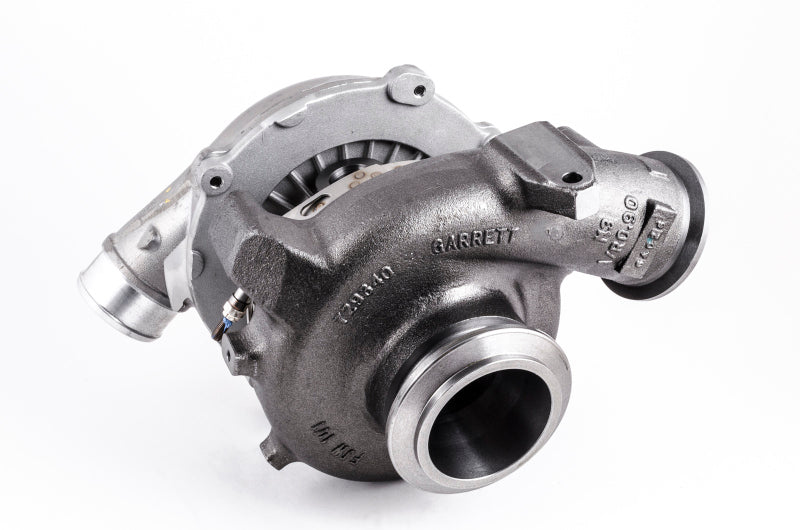

Garrett 772441-5002S PowerMax GT3788VA Turbocharger for 2004-07 6.0L Powerst

Vehicle Fitment

• 2004-2007 Ford F-250, F-350, F-450, F-550 Super Duty (6.0L Powerstroke diesel)

Features

• Garrett PowerMax GT3788VA turbocharger assembly
• Advanced Variable Nozzle Turbine (AVNT™) design for optimized turbine efficiency
• Nine movable turbine vanes for improved response across the powerband
• Drop-in replacement turbo - mounts to OEM hardware
• Retains factory electronic actuator and controls
• Larger compressor and turbine wheels than stock for increased flow
• Improved boost response and torque delivery
• Supports significant horsepower gains with proper tuning

Specifications

• Brand: Garrett
• Part Number: 772441-5002S
• Turbo Model: GT3788VA
• Engine Type: 6.0L Powerstroke diesel
• Compressor Wheel Inducer: ~63.5 mm
• Compressor Wheel Exducer: ~88 mm
• Compressor Trim: ~52
• Turbine Wheel Inducer: ~72.5 mm
• Turbine Wheel Exducer: ~66.5 mm
• Turbine Wheel Trim: ~84
• Turbine Housing A/R: ~0.90

Included Components

• 1x Garrett 772441-5002S PowerMax GT3788VA turbocharger
• Note: Installation hardware (bolts, O-rings) and oil/coolant lines not included

Product Description

The Garrett 772441-5002S PowerMax GT3788VA Turbocharger is a performance-oriented replacement turbo designed specifically for the Ford 6.0L Powerstroke diesel engines from 2004 through 2007. Built around Garrett's advanced AVNT™ variable turbine geometry technology, this turbocharger features nine movable vanes that optimize exhaust flow and boost delivery across the RPM range, enhancing throttle response, torque, and overall engine performance. The larger compressor and turbine wheel sizes improve airflow capacity compared to the stock unit, helping deliver stronger boost and power when paired with proper tuning.

This turbocharger is engineered as a **direct-fit replacement**, retaining the factory electronic actuator and mounting points for a straightforward installation. Its increased flow capability supports power gains over the original equipment turbo, making it suitable for daily driving, heavy towing, and higher-output builds on the Powerstroke platform. While primarily a drop-in unit, additional tuning and supporting modifications (such as fueling and intercooling upgrades) are recommended to fully realize the performance potential of this turbocharger.
