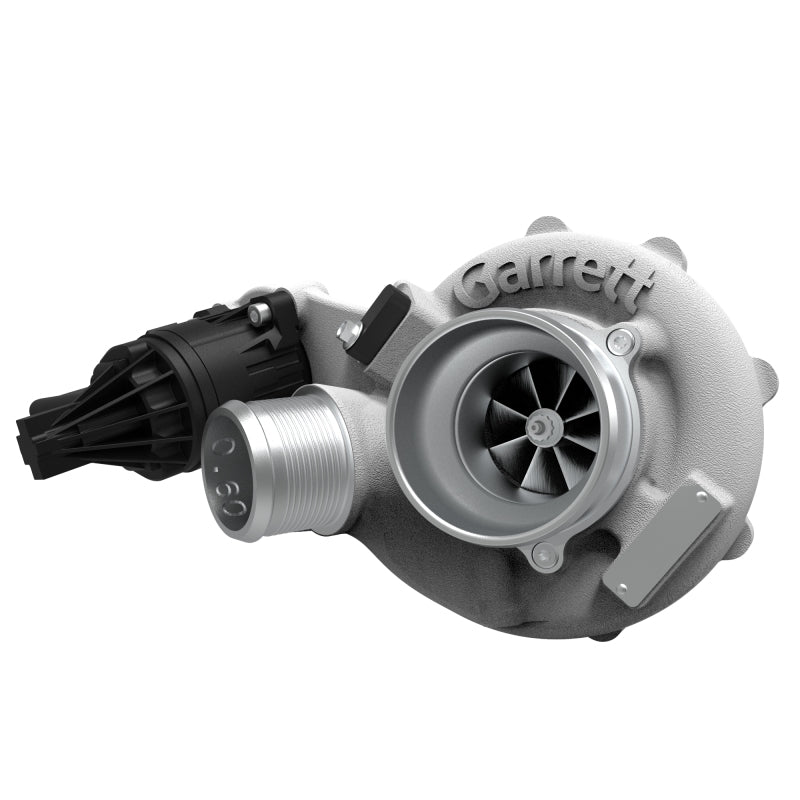

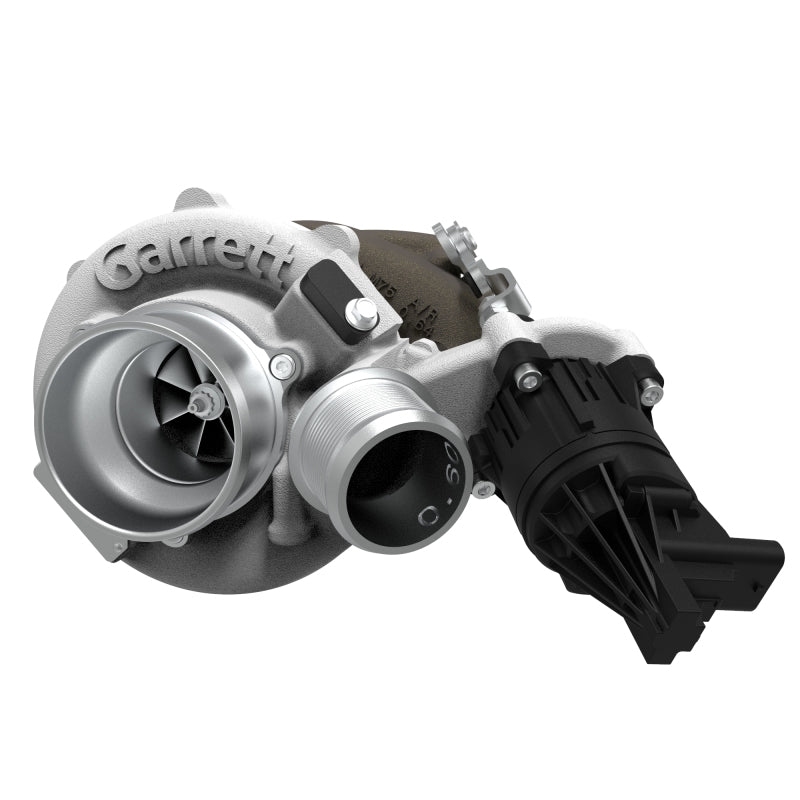

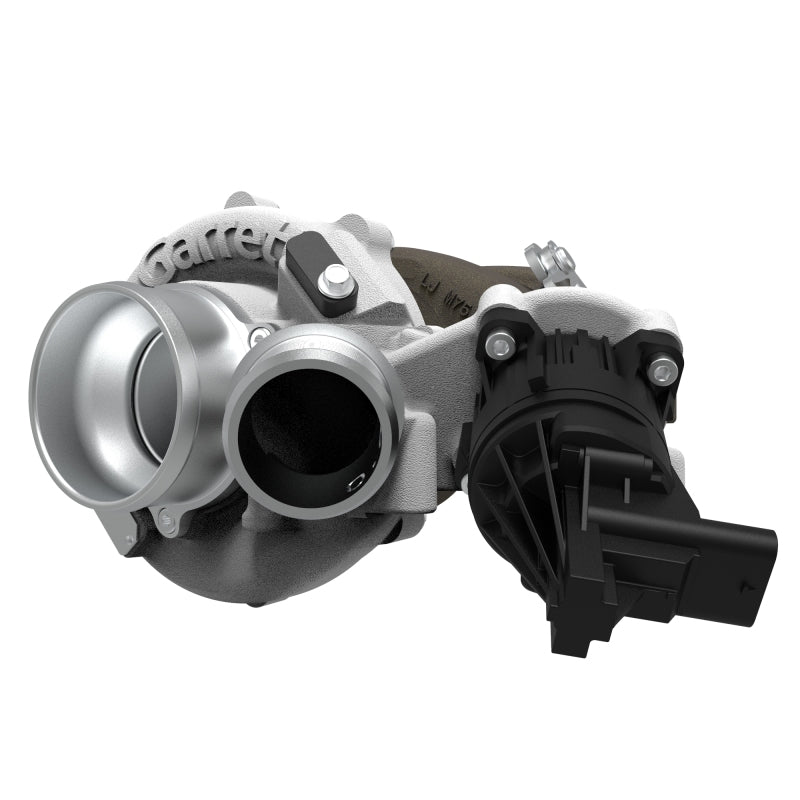

Garrett 901655-5001W PowerMax Stage2 Turbo Right for 2017-2021 F-150/Ra

Vehicle Fitment

• 2017-2021 Ford F-150 (3.5L EcoBoost V6)
• 2017-2021 Ford F-150 Raptor (3.5L EcoBoost V6)

Features

• PowerMax™ Stage 2 direct-fit performance turbocharger upgrade
• Right-side turbocharger (reverse rotation)
• Billet 60 mm compressor wheel for increased airflow
• Inconel turbine wheel for high-temperature durability
• Compressor housing with larger inlet for optimized flow
• Pre-installed calibrated electric actuator
• Adapter for stock inlet tubing included
• Supports higher performance with proper tuning and mods

Specifications

• Brand: Garrett Motion
• Part Number: 901655-5001W
• Turbo Model: PowerMax™ Stage 2 (GT2260S)**
• Position: Right-side (passenger side) turbocharger
• Compressor Wheel: 60 mm
• Turbine Wheel: 50 mm
• Estimated Power Support: 700+ HP with tuning
• Installation: OEM-style direct drop-in

Included Components

• 1x Garrett PowerMax™ Stage 2 turbocharger (Right side)
• Pre-installed calibrated electric actuator
• Stock inlet adapter

Product Description

The Garrett 901655-5001W PowerMax™ Stage 2 Turbocharger is a **high-flow performance upgrade** engineered specifically for the **2017-2021 Ford F-150 and F-150 Raptor with the 3.5L EcoBoost V6**. Designed as a **direct OEM-style replacement**, this right-side turbocharger comes fully assembled and calibrated with an electric actuator and inlet adapter, making it straightforward to install in place of the factory unit.

Built around Garrett's **GT2260S-based PowerMax™ Stage 2 design**, the 901655-5001W provides significantly increased airflow and pressure potential compared to stock, thanks to a **billet 60 mm compressor wheel** and **Inconel turbine wheel** for enhanced high-temperature performance. This configuration supports **700+ HP with proper engine tuning and supporting modifications**, offering enthusiasts a robust performance boost for towing, racing, or high-output builds.

This turbocharger is engineered to integrate smoothly with your 3.5L EcoBoost system, retaining OEM mounting and plumbing interfaces while delivering stronger performance and improved throttle response. It also includes provisions for optional monitoring accessories, such as a turbo speed sensor, for tuners who want to precisely manage turbo operation.
