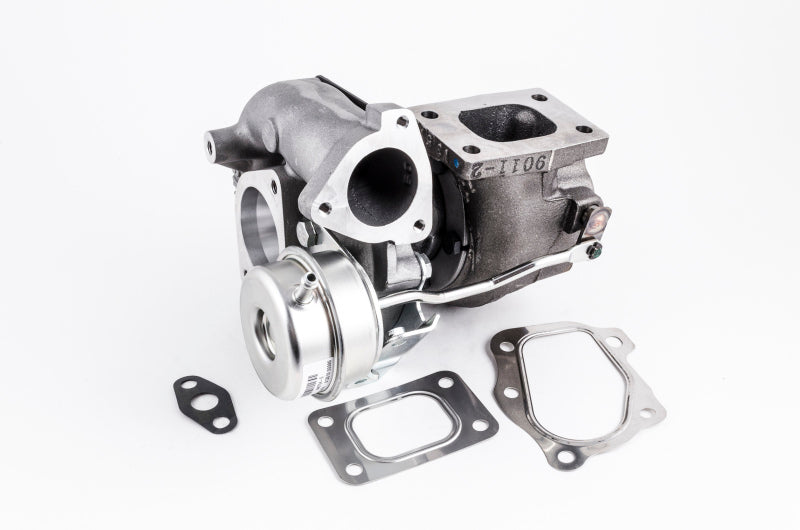

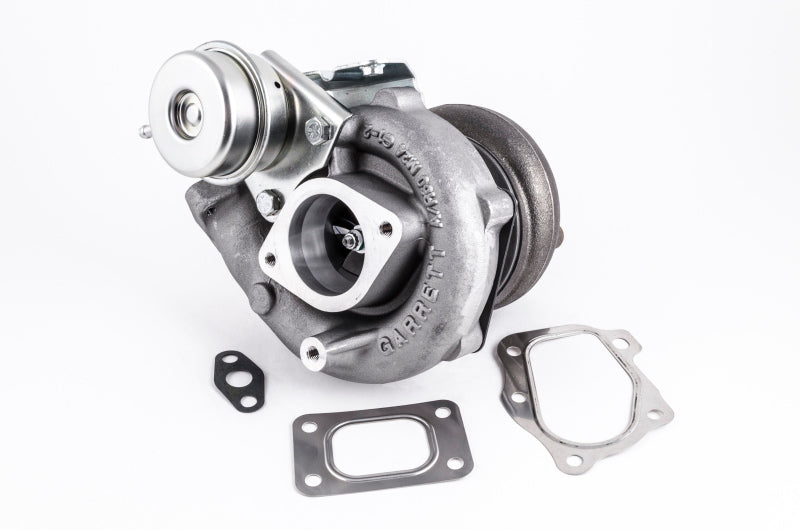

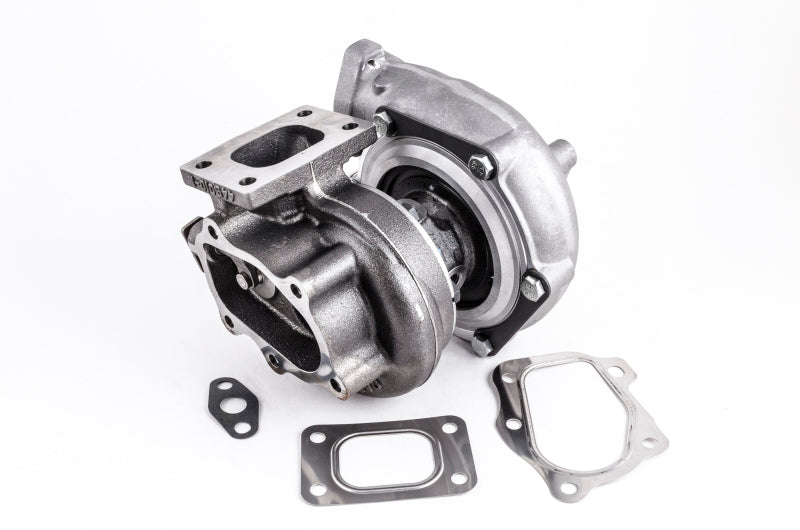

Garrett 836023-5003S GT2560R Ball Bearing Turbocharger for 1.4L-2.2L Engines

Vehicle Fitment

• Universal fitment for 1.4L-2.2L displacement engines
• Suitable for applications requiring 170-270 horsepower

Features

• Dual ball bearing center housing rotating assembly (CHRA)
• Oil and water-cooled bearing system for enhanced durability
• Internally wastegated turbine housing for compact design
• Compressor housing with 0.80 A/R ratio
• Turbine housing with 0.64 A/R ratio
• Compressor wheel inducer: 46mm, exducer: 60mm, 60 trim
• Turbine wheel inducer: 53mm, exducer: 42mm, 62 trim
• T25 turbine inlet flange with 5-bolt outlet

Specifications

• Compressor A/R: 0.80
• Turbine A/R: 0.64
• Compressor wheel inducer: 46mm
• Compressor wheel exducer: 60mm
• Turbine wheel inducer: 53mm
• Turbine wheel exducer: 42mm
• Compressor wheel trim: 60
• Turbine wheel trim: 62
• CHRA: 835995-0002
• Water ports: M14x1.5

Included Components

• 1x Garrett GT2560R Turbocharger (Part No. 836023-5003S)
• 1x Wastegate actuator
• 1x Oil and water inlet/outlet fittings
• 1x Installation hardware kit

Product Description

The Garrett GT2560R Turbocharger, part number 836023-5003S, is a high-performance turbocharger designed for 1.4L to 2.2L displacement engines producing between 170 and 270 horsepower. It features a dual ball bearing CHRA for rapid spool-up and enhanced durability, making it ideal for both street and motorsport applications.

This turbocharger comes equipped with an internally wastegated turbine housing, offering a compact design suitable for tight engine bays. The 0.80 A/R compressor housing ensures efficient air intake, while the 0.64 A/R turbine housing provides optimal exhaust flow. The T25 turbine inlet flange with a 5-bolt outlet allows for versatile installation options.

Please note that this turbocharger is a universal fitment part and may require additional components or modifications for specific vehicle applications. Always consult with a professional mechanic or tuner to ensure proper installation and compatibility with your vehicle.
