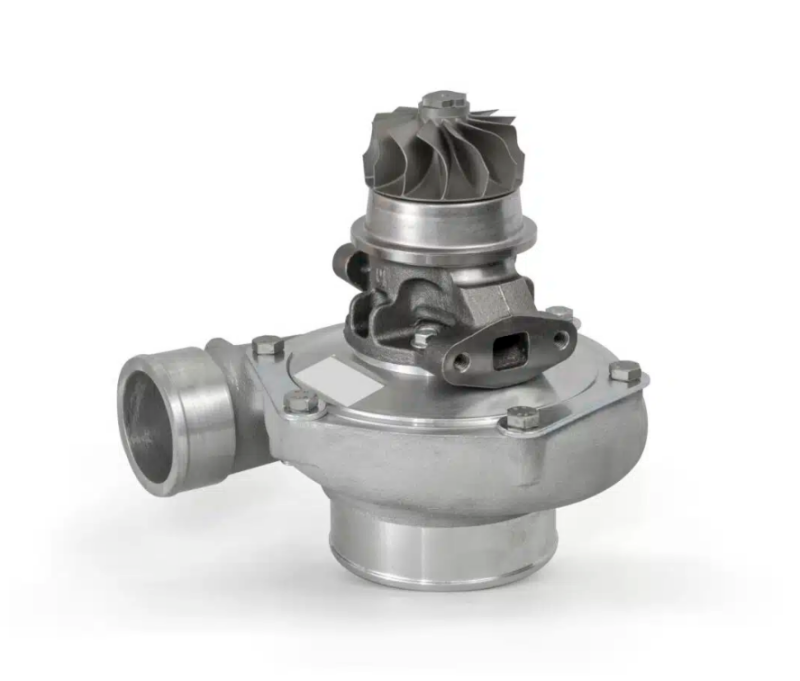

Garrett 913840-5001S GBC35-700 Super Core Turbo 58mm 400-700HP 0.72 A/R

Vehicle Fitment

• Universal application
• Garrett Boost Club Line GBC35-700 super core for custom turbo systems
• Compatible with custom performance applications when matched with the correct GBC35 turbine kit, manifold flange, oil routing, and compressor packaging
• Not vehicle-specific; do not assign year/make/model fitment unless the complete turbo system is manually verified
• Super core configuration requires a separate compatible turbine housing kit
• Garrett catalogs this exact part number as GBC35-700 Super Core
• Horsepower support is approximately 400-700 HP in properly matched applications
• Fitment through 2025 is universal/application-based rather than vehicle-specific

Features

• Garrett Boost Club Line GBC35-700 super core
• Supports approximately 400-700 horsepower applications
• Forged, fully machined compressor wheel
• Advanced compressor aerodynamics for improved flow capability
• Compressor housing A/R of 0.72
• Supports up to 68 lb/min airflow
• Capable of up to 4.1 pressure ratio
• Journal bearing rotating group
• Compact super core format for custom turbo builds
• Designed to pair with Garrett GBC35 turbine kits

Specifications

• Part Number: 913840-5001S
• Product Line: Garrett Boost Club Line GBC35-700
• Configuration: Super core
• Horsepower Rating: 400-700 HP
• Compressor Inducer / Exducer: 58 mm / 76 mm
• Compressor Trim: 58
• Compressor Housing A/R: 0.72
• Maximum Airflow: 68 lb/min
• Maximum Pressure Ratio: 4.1
• Compatible Turbine Kit Family: GBC35

Included Components

• 1x Garrett GBC35-700 super core

Product Description

The Garrett 913840-5001S is a Boost Club Line GBC35-700 super core built for custom turbocharger systems that need modern Garrett compressor performance in a cost-conscious package. Garrett lists this exact part number as a GBC35-700 super core, intended for builders who will select the correct matching GBC35 turbine kit and complete the turbocharger around the specific manifold, exhaust, and packaging requirements of the project.

Garrett rates the GBC35-700 for approximately 400 to 700 horsepower and specifies a forged, fully machined 58mm compressor wheel with 76mm exducer sizing, 0.72 A/R compressor housing, up to 68 lb/min airflow, and up to 4.1 pressure ratio. The Club Line design uses modern aerodynamics and a journal bearing rotating group, making it suitable for custom street, race, powersports, or other fabricated boosted applications when the full system is engineered correctly.

This product does not change vehicle ride height, so no front or rear lift/drop height applies. Because 913840-5001S is a universal super core and not a direct-fit vehicle turbo kit, always verify the matching GBC35 turbine kit, manifold flange, oil drain geometry, inlet and outlet routing, and available chassis clearance before purchase or installation.
