Garrett 934118-5003S G-Series II G30-825 Turbo 0.83 A/R V-Band IWG 475-825HP

Vehicle Fitment

• Universal - compatible with custom turbo builds on 2.0L-3.5L turbocharged engine platforms supporting 475-825 HP; requires compatible V-Band turbo manifold and downpipe

Fitment Notes

• V-Band turbine inlet and V-Band turbine outlet - requires compatible V-Band manifold flange and downpipe V-Band flange (sold separately)
• G-Series II CHRAs are backward-compatible with G-Series Gen I turbine and compressor housings - allows CHRA upgrade without changing existing housings
• Internal Wastegate (IWG) - no external wastegate required; comes pre-assembled and calibrated with a 0.5 bar actuator
• Standard rotation
• Speed sensor port machined into compressor housing - compatible with p/n 923586-0003 (G-Smart Bluetooth Module), 781328-0003 (street kit with gauge), or 781328-0004 (pro kit without gauge), all sold separately
• Not CARB legal - for competition, off-road, and uncontrolled vehicle use only; not for sale in California

Features

• G-Series II next-generation compressor aerodynamics deliver up to 10% more flow compared to G-Series Gen I for improved spool and top-end performance
• 0.83 A/R V-Band turbine housing - tighter of the two available housing options, optimized for faster spool and responsive street or track performance
• Internal Wastegate design with 0.5 bar pre-calibrated actuator for precise, compact boost control without an external wastegate
• 58mm compressor inducer / 71mm exducer (65 trim) for high-efficiency airflow in the 475-825 HP range
• 60mm turbine inducer / 55mm exducer (84 trim) Mar-M alloy Inconel turbine wheel for high exhaust gas temperature durability
• Fully assembled and calibrated - complete turbo ready to install out of the box
• G-Series II CHRA backward-compatible with Gen I housings - seamless upgrade path for existing G-Series builds
• Fully machined speed sensor port for optional turbo shaft speed monitoring and overspeed protection

Specifications

• Part Number: 934118-5003S
• Series: G-Series II G30-825
• Horsepower Range: 475-825 HP
• Compatible Engine Displacement: 2.0L-3.5L
• Compressor Inducer: 58mm
• Compressor Exducer: 71mm
• Compressor Trim: 65
• Compressor A/R: 0.72
• Turbine Inducer: 60mm
• Turbine Exducer: 55mm
• Turbine Trim: 84
• Turbine A/R: 0.83
• Turbine Inlet: V-Band
• Turbine Outlet: V-Band
• Wastegate: Internal (IWG) - 0.5 bar pre-calibrated actuator included
• Rotation: Standard
• Sold As: Complete Assembled and Calibrated Turbocharger

Included Components

• 1x Garrett G-Series II G30-825 Complete Turbocharger Assembly
• Pre-Calibrated 0.5 Bar Internal Wastegate Actuator
• Note: V-Band manifold flange, downpipe V-Band flange, oil/coolant fittings, and speed sensor sold separately

Product Description

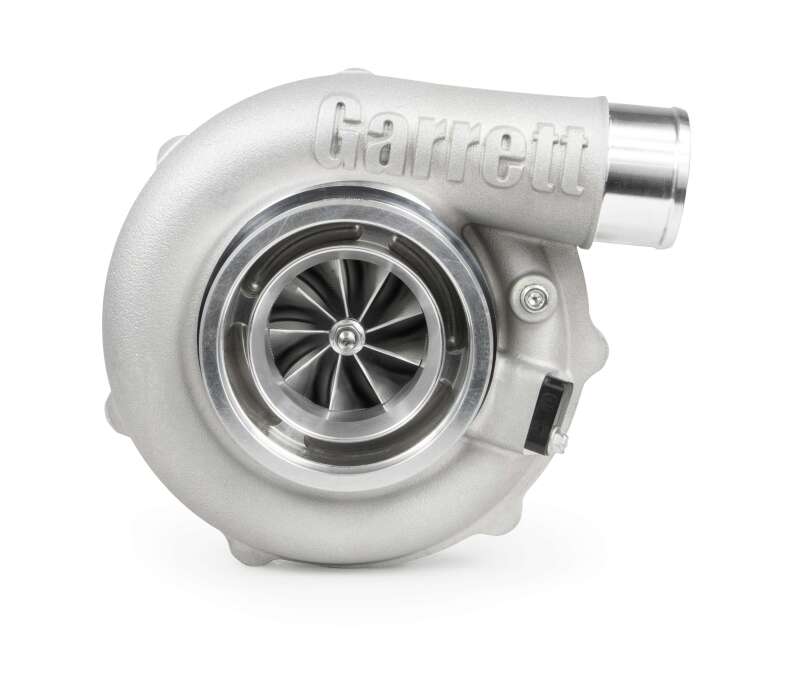

The Garrett 934118-5003S is the G-Series II G30-825 complete turbocharger assembly with a 0.83 A/R V-Band / V-Band internal wastegate configuration. As the second generation of Garrett's G30 platform, the G-Series II features updated compressor aerodynamics delivering up to 10% more flow than the original G-Series Gen I G30, while remaining backward-compatible with Gen I turbine and compressor housings - allowing builders with existing G30 setups to upgrade the CHRA without changing their manifold, downpipe, or compressor housing.

Rated for 475-825 HP across 2.0L-3.5L engine displacements, the G30-825 with the 0.83 A/R turbine housing is well-suited for street and mild track builds where fast spool and responsive boost delivery are the priority. The internal wastegate design with the included 0.5 bar actuator eliminates the need for an external wastegate, simplifying the installation. This turbo ships fully assembled and calibrated - ready to install. The compressor housing includes a machined speed sensor port for optional overspeed monitoring via a compatible Garrett sensor kit.
