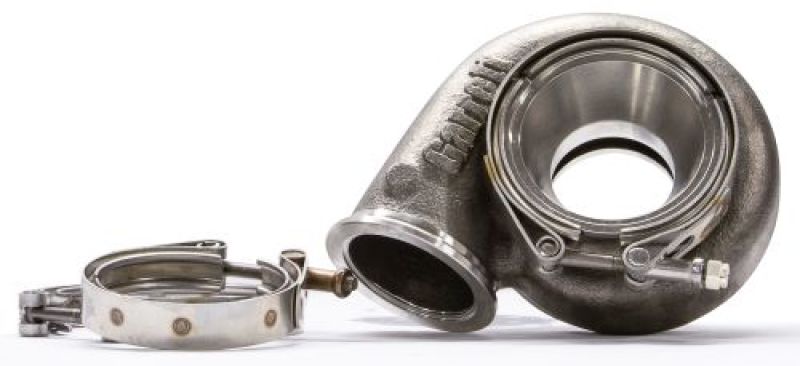

Garrett 740902-0068 G25 Turbine Housing Kit V-Band/V-Band 0.92 A/R

Vehicle Fitment

• Universal turbocharger turbine housing - not specific to any vehicle
• Designed for Garrett G25-series turbochargers (G25-550, G25-660)

Features

• Turbine housing kit for Garrett G25 turbocharger models
• 0.92 A/R for balanced spool and mid-range power
• V-Band inlet and V-Band outlet for secure exhaust connection
• Compatible with standard rotation turbo applications
• Stainless steel construction for heat resistance and durability
• Supports external wastegate installation
• Ideal for custom high-performance turbo builds
• Optimized for tailored turbine dynamics in custom setups

Specifications

• Brand: Garrett
• Part Number: 740902-0068
• Component Type: Turbocharger turbine housing kit
• Compatible Turbo Series: G25-550, G25-660
• A/R Ratio: 0.92
• Inlet Flange: V-Band
• Outlet Flange: V-Band
• Rotation: Standard
• Wastegate: External wastegate compatible

Included Components

• 1x Garrett 740902-0068 turbine housing (exhaust housing)
• Note: Turbo core (CHRA), compressor housing, actuator, clamps, and additional hardware not included

Product Description

The Garrett 740902-0068 G25 Turbine Housing Kit is engineered for high-performance applications using Garrett G25-series turbochargers. With a 0.92 A/R ratio and V-Band inlet/outlet connections, it delivers a balanced combination of turbo spool responsiveness and strong mid-range flow. Its stainless steel construction ensures durability under extreme thermal and pressure conditions, making it ideal for high-boost and custom turbo setups.

This turbine housing is a **universal component**, not a direct vehicle-specific part. It must be integrated with a compatible turbo core (CHRA), external wastegate hardware, and other necessary components to complete a functional turbocharger system. It's ideal for engine builders and tuners creating custom high-performance turbo setups where control over turbine dynamics and exhaust flow is critical.
