Garrett 934174-5009S G-XRace GXR57-88 XBoost Supercore 88mm/149mm Racing Turbo

Vehicle Fitment

• Universal - compatible with professional motorsport and drag racing applications on 3.0L-12.0L engine platforms; requires a compatible G-Series G57 turbine housing

Fitment Notes

• Supercore only - a G-Series G57 turbine housing is required and sold separately; available in three V-Band stainless steel housings at 1.09 A/R, 1.25 A/R, and 1.41 A/R
• G-XRace GXR57 supercores use the same G57 turbine housings as the G-Series G57 platform - direct upgrade path without changing the turbine housing or exhaust hardware
• 88mm compressor inducer - the smallest inducer option in the GXR57 lineup; suited for race builds prioritizing faster spool at extreme power levels
• Designed for professional motorsport and extreme drag racing competition - not for street use on public roads
• Speed sensor port machined into compressor housing - compatible with p/n 923586-0003 (G-Smart Bluetooth Module), 781328-0003 (street kit with gauge), or 781328-0004 (pro kit without gauge), all sold separately
• Maximum allowable turbocharger speed: 84 krpm - use above this speed is at owner's risk
• Not CARB legal - for competition and off-road race use only; not for sale in California

Features

• XBoost technology delivers enhanced compressor flow beyond the G-Series G57 platform, with improved pressure ratio capability and higher efficiency at extreme airflow levels

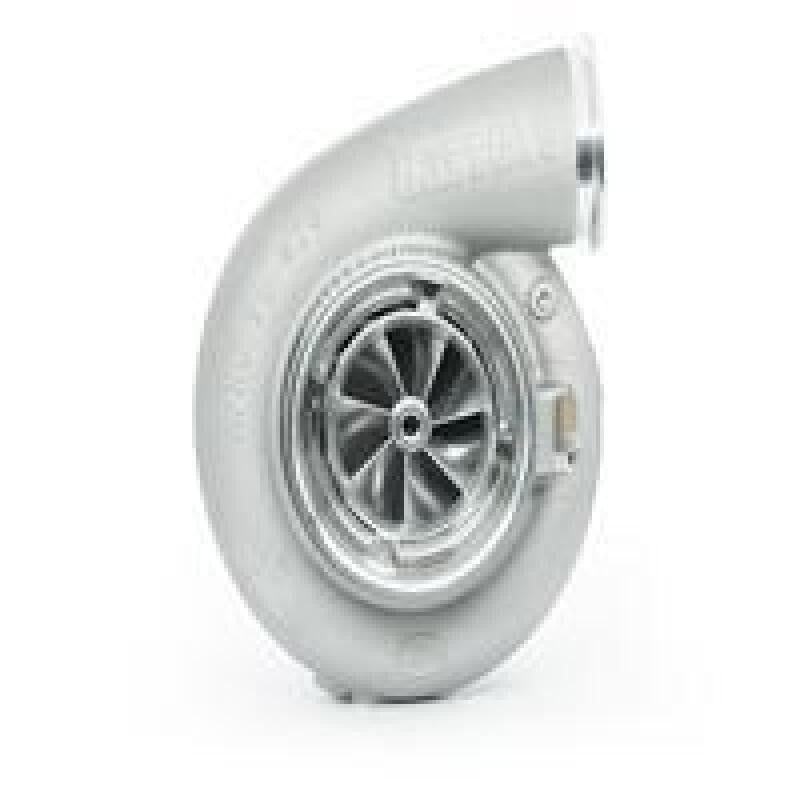

• 88mm compressor inducer / 149mm compressor exducer - optimized for rapid boost response and high pressure ratio capability in large-displacement race engine applications
• Built on Garrett's G57 turbine frame: 118mm / 112mm Inconel turbine wheel delivering 28% more turbine flow than the previous GTX Gen II platform
• Lower intake temperatures via improved XBoost compressor efficiency - denser charge air for greater power potential at any given boost level
• Lightweight one-piece aluminum backplate reduces overall supercore weight
• Fully machined flange-style speed sensor port for turbo shaft speed monitoring and overspeed protection
• Compatible with all G-Series G57 V-Band turbine housings - seamless upgrade from G57 without changing exhaust hardware
• Designed for Radial vs. the World, extreme drag racing, and other high-power competition motorsport applications

Specifications

• Part Number: 934174-5009S
• Series: G-XRace GXR57-88
• Compatible Engine Displacement: 3.0L-12.0L
• Compressor Inducer: 88mm
• Compressor Exducer: 149mm
• Turbine Frame: G57
• Turbine Wheel: Inconel, 118mm Inducer / 112mm Exducer (90 Trim)
• Technology: XBoost (increased compressor flow and pressure ratio vs. G-Series G57)
• Center Housing: Lightweight One-Piece Aluminum Backplate
• Speed Sensor Port: Yes - Fully Machined Flange-Style (sensors sold separately)
• Max Turbocharger Speed: 84 krpm
• Compatible Turbine Housings: G-Series G57 V-Band housings - 1.09 A/R, 1.25 A/R, 1.41 A/R
• Sold As: Supercore Only (turbine housing not included)

Included Components

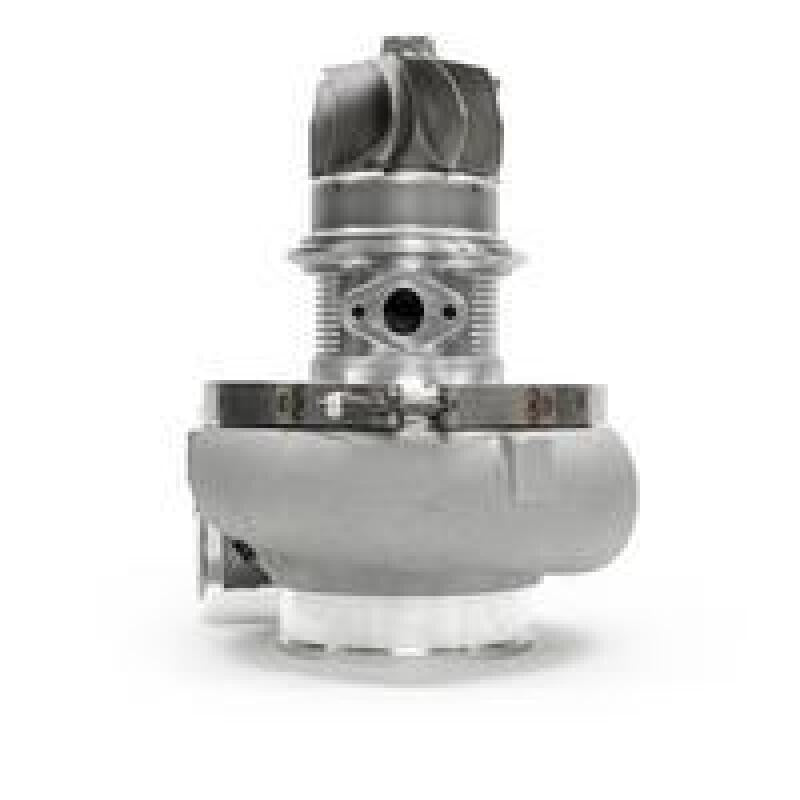

• 1x Garrett G-XRace GXR57-88 Supercore (88mm/149mm compressor, G57 118mm/112mm turbine wheel)
• Note: G57 turbine housing, speed sensor, and installation hardware sold separately

Product Description

The Garrett 934174-5009S is the GXR57-88 supercore from Garrett's G-XRace series - the 88mm inducer variant of the newly released GXR57 platform announced in May 2026. Like all G-XRace turbos, the GXR57-88 applies XBoost compressor aerodynamics to the G57 turbine frame, delivering increased compressor flow and enhanced pressure ratio capability beyond the standard G-Series G57. The 88mm compressor inducer paired with the 149mm exducer targets race builds where rapid spool and high boost pressure at lower engine speeds are the priority, while still supporting the extreme power levels demanded by top-level drag racing competition.

The GXR57-88 is supercore-only and is fully interchangeable with G-Series G57 V-Band turbine housings (1.09, 1.25, or 1.41 A/R), giving builders already running a G57 setup a direct upgrade without changes to exhaust hardware. The G57 turbine stage - featuring a 118mm/112mm Inconel wheel with 28% more flow than GTX Gen II - provides the exhaust energy capacity to fully support the GXR57's expanded compressor aero. A machined speed sensor port is included for optional overspeed monitoring. Turbine housing, speed sensor, and installation hardware are sold separately.
