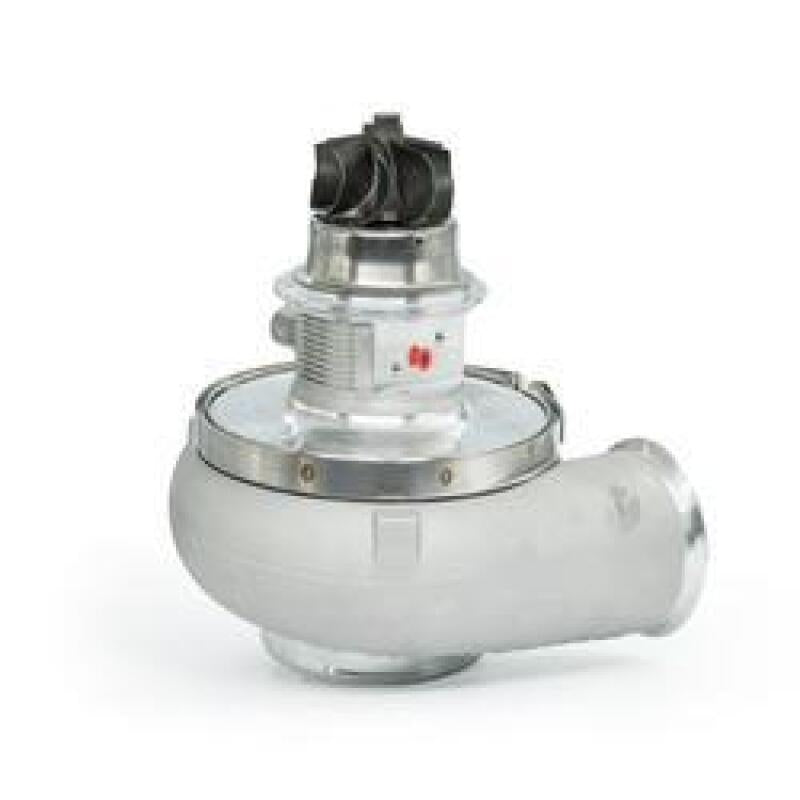

Garrett G-XRace GXR47-76 Turbocharger Supercore Ultra Street 953234-5001S

Vehicle Fitment

• Universal - for high-performance drag racing applications requiring a 76.6mm compressor inducer, Ultra Street class

Fitment Notes

• Supercore configuration (center housing/rotating assembly with compressor and turbine wheels) - requires a compatible compressor housing, turbine housing, and mounting hardware for a complete installation

Features

• Engineered specifically for Ultra Street drag racing classes
• XBoost technology for increased power output and improved boost capability under extreme conditions
• Increased compressor flow capacity for enhanced airflow performance
• Improved pressure ratio capability for higher boost pressure
• High-flow efficiency delivers cooler, denser intake air
• Lightweight aluminum backplate reduces overall turbocharger weight
• Flange-style speed sensor port for accurate shaft speed monitoring

Specifications

• Model: GXR47-76
• Horsepower Rating: 1,700 HP
• Compressor Inducer: 76.6mm
• Compressor Exducer: 116mm
• Turbine Inducer: 93mm
• Turbine Exducer: 88mm

Included Components

• 1x GXR47-76 Turbocharger Supercore (center housing rotating assembly)

Product Description

The Garrett 953234-5001S is a GXR47-76 turbocharger supercore engineered for Ultra Street-class drag racing, built around a 76.6mm compressor inducer and rated to support up to 1,700 HP. Garrett's XBoost technology increases compressor flow and pressure ratio capability, delivering stronger boost response and cooler, denser intake air under extreme racing loads.

As a supercore unit, this is the center housing and rotating assembly only - a compatible compressor housing and turbine housing are required to complete the build. The lightweight aluminum backplate helps minimize overall turbo weight, and the flange-style speed sensor port allows for accurate shaft speed monitoring during tuning.
