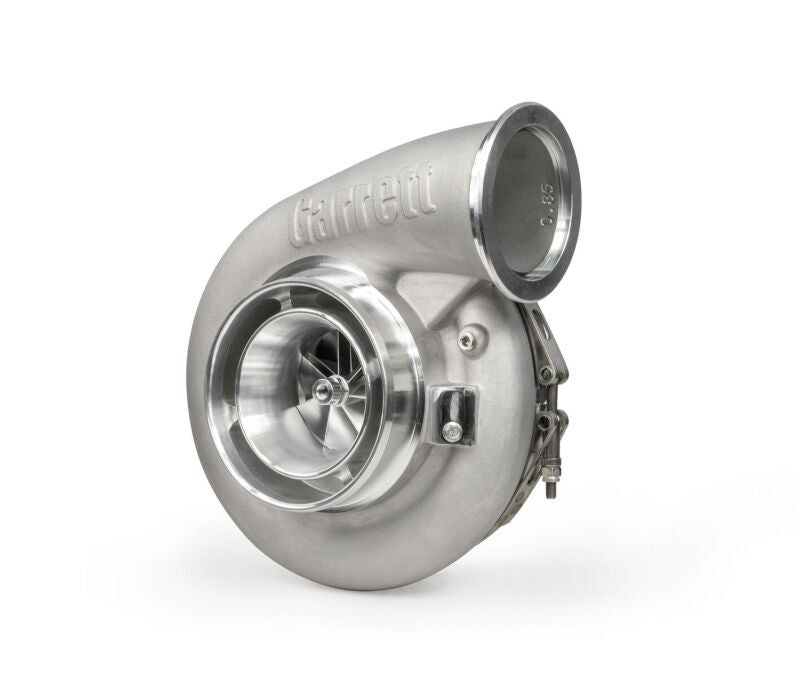

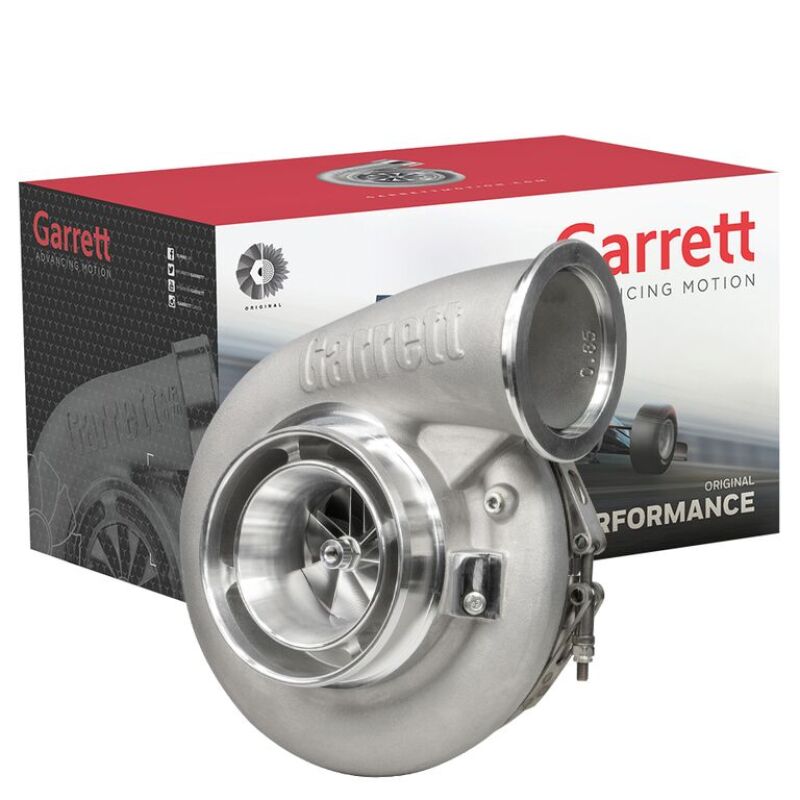

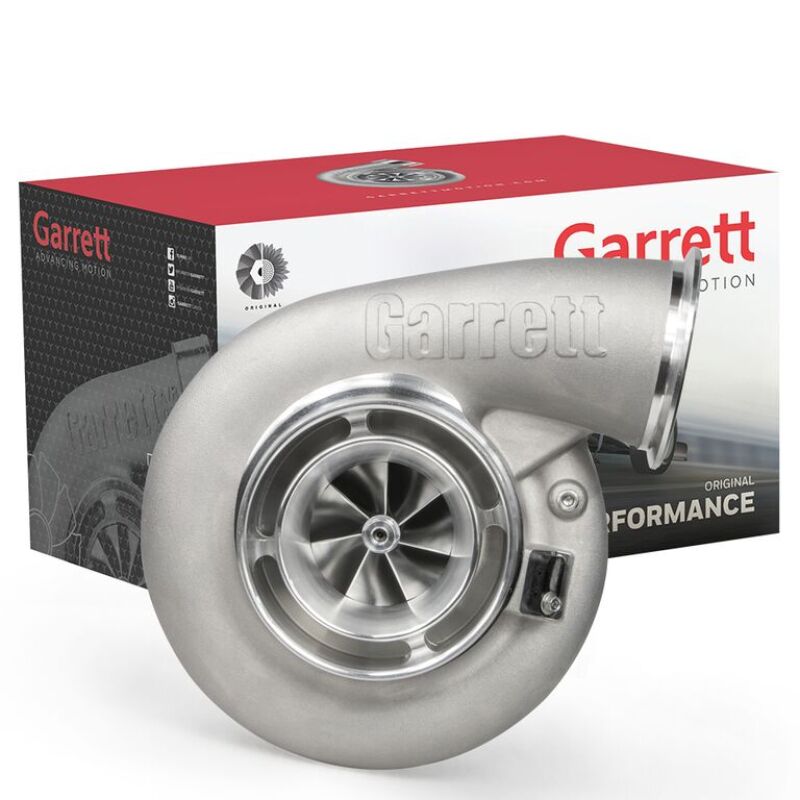

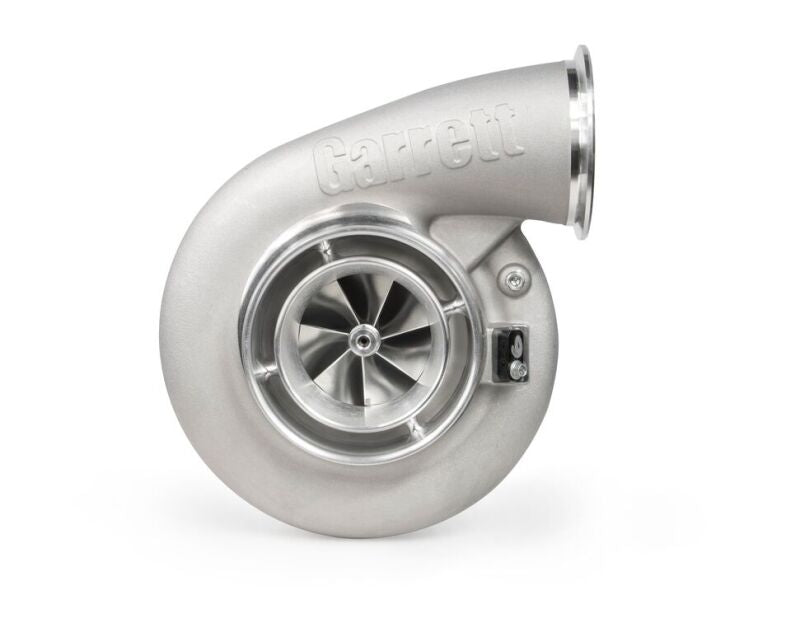

Garrett 934173-5002S GXR42-72 Super Core Turbo (Race/Drag)

Vehicle Fitment

• Universal / Racing Application (custom builds, motorsport use)

Fitment Notes

• Not designed for OEM replacement on specific vehicles
• Requires custom manifold, turbine housing, and plumbing
• Verify class rules if used in competition (compressor wheel size limits)

Features

• Garrett G-XRace "GXR42-72" super core design
• XBoost technology for higher pressure ratio and efficiency
• Compressor inducer 72.9 mm, exducer 102 mm
• Compressor trim 51, A/R 0.85
• Turbine inducer 82.0 mm, exducer 75.0 mm, trim 84
• Supports ~700 - 1,450 hp range
• Double ceramic ball bearing center section
• 4 water cooling ports for thermal management
• Compact aluminum backplate for weight reduction
• Fits with standard G-series / G42 turbine housings for interchangeability

Specifications

• Compressor side: inducer = 72.9 mm, exducer = 102 mm, trim = 51, A/R = 0.85
• Turbine side: inducer = 82.0 mm, exducer = 75.0 mm, trim = 84
• Power range: up to ~1,450 hp
• Supported engine displacement: ~2.0 L to 8.0 L
• Rotation: standard (right) by default
• Cooling: dual water feed / return (4 ports)
• Maximum safe rotational speed: 109,000 rpm (limit)

Included Components

• 1x Garrett GXR42-72 Super Core (PN 934173-5002S)

Product Description

The Garrett 934173-5002S is the GXR42-72 super core from Garrett's G-XRace series - engineered for serious motorsport and drag racing applications. With a 72.9 mm compressor inducer and 102 mm exducer, paired with a trim of 51 and A/R 0.85, it delivers a broad, efficient airflow range. On the turbine side, the 82.0 / 75.0 wheel with trim 84 offers strong exhaust flow, supporting up to ~1,450 hp in optimized builds.

Because this is a core unit (CHRA + compressor wheel + internal assembly) rather than a full turbo, it does not come with turbine housing, actuator, or external plumbing. It is intended for custom and racing setups. The design retains compatibility with Garrett G / G42 series turbine housings, making it easier to integrate into existing systems.

Installation requires precise matching of manifold runner geometry, oil feed / return, water cooling lines, and balance of intake/exhaust plumbing. It is not a plug-and-play solution. Use only in dedicated racing or motorsport applications; it is not street legal in many jurisdictions.
