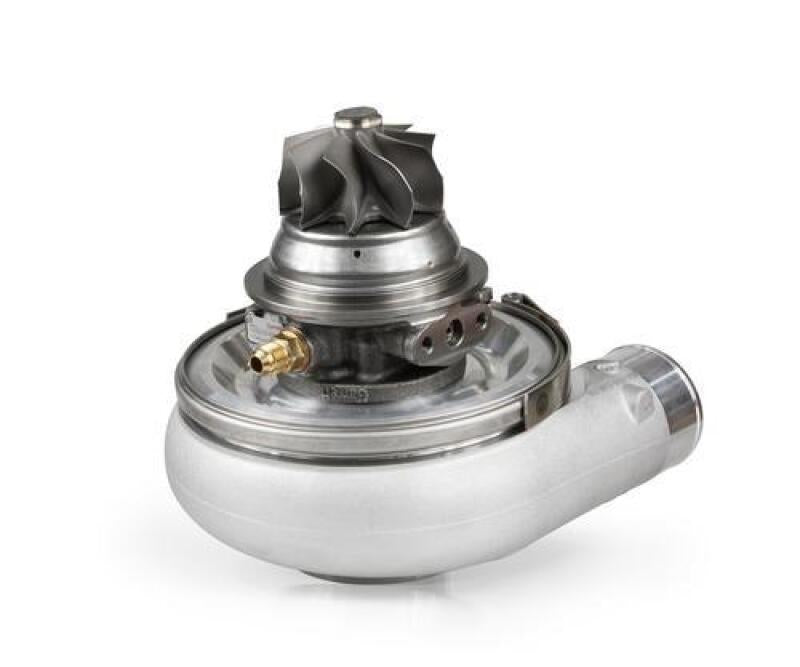

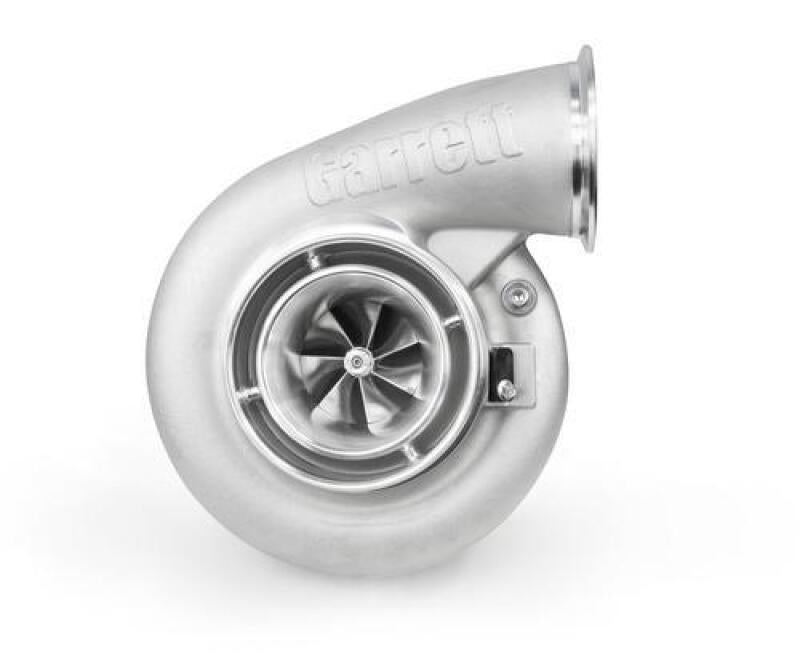

Garrett G-XRace GXR38-64 64mm V-Band Turbocharger Supercore 934173-5008S

Vehicle Fitment

• Universal - for high-performance racing applications on 2.0L to 6.0L engines

Fitment Notes

• Supercore only - provides the rotating assembly and compressor housing; requires a compatible turbine housing kit (Garrett G-Series/G-XRace, 0.85-1.06 A/R, T4 divided or V-Band inlet, part numbers 757707-0037 through 757707-0044) sold separately
• Requires an external wastegate, sourced separately, appropriate for your target boost level
• V-Band compressor outlet - for the clamped hose (CH) outlet alternative, see part #934173-5009S
• Not CARB legal; not for sale or use in California

Features

• XBoost Technology compressor aero delivers 23% greater flow than the G40-900 for extreme top-end horsepower
• Dual ceramic ball bearing CHRA for rapid spool-up, reduced friction, and long service intervals
• Inconel turbine wheel handles extreme exhaust heat in high-boost race applications
• V-Band compressor outlet for rigid, reliable aluminum charge piping connections
• Lightweight aluminum backplate reduces rotating assembly inertia for quicker throttle response
• Machined speed sensor port for optional turbo speed monitoring via the Garrett G-Smart sensor kit

Specifications

• Model: GXR38-64
• Horsepower Rating: 500-1,250 HP
• Compressor Inducer: 64mm
• Compressor Outlet: V-Band
• Bearing System: Dual ceramic ball bearing
• Turbine Wheel Material: Inconel

Included Components

• 1x GXR38-64 Supercore Assembly with V-Band Compressor Outlet

Product Description

The Garrett 934173-5008S is a G-XRace GXR38-64 supercore built around a 64mm compressor inducer with a V-Band compressor outlet, rated for 500-1,250 HP on engines from 2.0L to 6.0L. Garrett's XBoost compressor aero delivers 23% greater flow than the G40-900, while the dual ceramic ball bearing CHRA and Inconel turbine wheel are built for rapid spool and reliable performance under extreme boost.

The lightweight aluminum backplate reduces rotating assembly inertia for quicker response, and the V-Band compressor outlet gives a rigid, leak-free connection for aluminum charge piping in professional race builds. As a supercore, this unit requires a separately sold matching turbine housing (choose from 0.85-1.06 A/R options in T4 divided or V-Band inlet configurations) and an external wastegate to complete the turbocharger.
