Fuelab 61714 2.7 L Twin-Screw Brushless Fuel Surge Tank System 625 LPH

Vehicle Fitment

• Universal fitment - suitable for any EFI application requiring surge tank support up to 625 LPH @ 45 PSI

Features

• 2.7 L surge tank prevents fuel slosh, maintaining fuel pickup under acceleration
• 625 LPH twin-screw brushless pump rated up to 1,500 HP
• 290 mm tall tank with integrated controller featuring PWM speed control (100-5,000 Hz)
• Billet aluminum and O-ring construction with -8 AN fuel ports
• PWM control compatible with ECUs: AEM, Holley, Link, Megasquirt, etc.
• Prevents vapor-lock and ensures consistent fuel delivery under rigorous conditions
• E85 and pump/racing gasoline compatible
• Limited lifetime warranty for long-term reliability

Specifications

• Surge Tank Volume: 2.7 L; Height: 290 mm
• Flow Rate: 625 LPH (≈158 GPH) @ 45 PSI; Max Pressure: 125 PSI :contentReference[oaicite:3]{index=3}
• Rated Horsepower Capacity: up to 1,500 HP :contentReference[oaicite:4]{index=4}
• Inlets/Outlet: -8 AN (3x inlet, 1x outlet) :contentReference[oaicite:5]{index=5}
• Operating Voltage: 8-17 V DC :contentReference[oaicite:6]{index=6}
• Weight: approx. 4.8 lbs; Dimensions: 6"x6"x13" packaging :contentReference[oaicite:7]{index=7}

Included Components

• 1x 2.7 L surge tank w/ integrated twin-screw brushless pump
• 1x PWM controller (internally mounted)
• Mounting bracket with hardware
• -8 AN fuel fittings (3 inlet, 1 outlet)
• Installation manual

Product Description

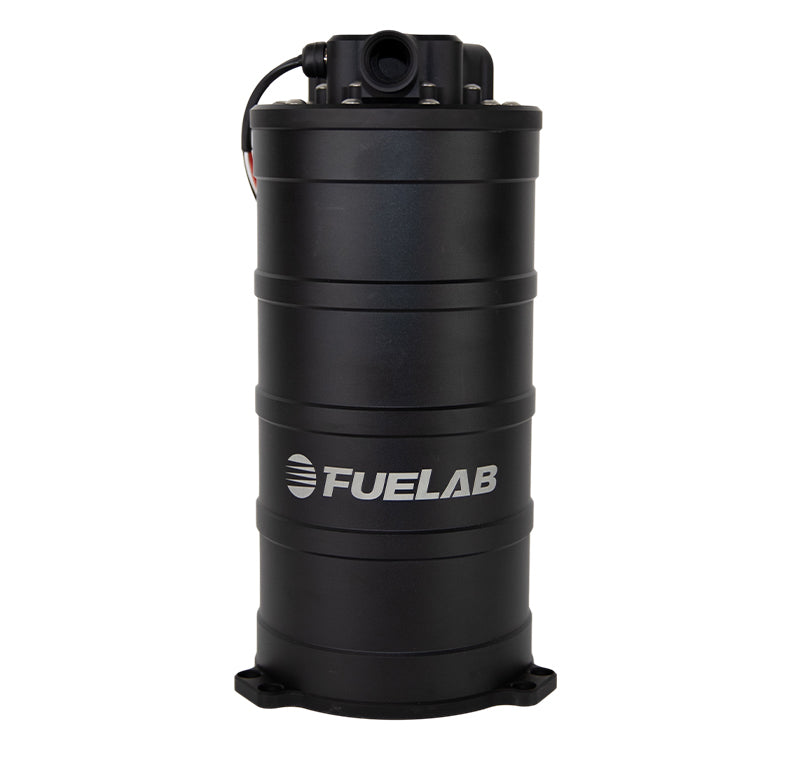

The Fuelab 61714 surge tank system delivers reliable and consistent fuel supply under extreme driving conditions by using a 2.7 L reservoir combined with a 625 LPH brushless twin-screw pump. At 290 mm tall, it bolts onto almost any chassis with no major modifications to your OE tank. Its integrated brushless pump and PWM controller ensure efficient and quiet operation, eliminating vapor lock and ensuring continuous fuel delivery during aggressive acceleration, cornering, or braking.

Compatible with pump or racing gasoline and E85, the system supports EFI applications up to 1,500 HP, making it ideal for drag, track, or off-road builds. With a universal mount, O-ring sealing, and AN fittings, installation is straightforward. Backed by a limited lifetime warranty, this fuel surge tank provides premium performance and durability under demanding conditions.
