Fuelab 72004 25 A Brushless Pump Controller PWM/0-5 V (Universal)

Vehicle Fitment

• Universal fitment - For external control of 3-phase brushless EFI pumps without built-in controllers

Features

• External brushless pump controller replacing 72001/72002/72003 models :contentReference[oaicite:1]{index=1}
• 25 A maximum output capacity for high-power pump applications :contentReference[oaicite:2]{index=2}
• Accepts PWM (100-5,000 Hz) or 0-5 V analog input for variable-speed control :contentReference[oaicite:3]{index=3}
• Billet aluminum housing - durable and compact :contentReference[oaicite:4]{index=4}
• Voltage range 9.5-22 V; continuous operation up to 16 V :contentReference[oaicite:5]{index=5}
• Fail-safe full-speed mode if control signal is lost :contentReference[oaicite:6]{index=6}
• Includes bulkhead feedthrough option for in-tank or external mounting :contentReference[oaicite:7]{index=7}
• Limited lifetime warranty on electronics :contentReference[oaicite:8]{index=8}

Specifications

• Max Current Output: 25 A
• Operating Voltage: 9.5-22 V DC (continuous 16 V) :contentReference[oaicite:9]{index=9}
• Control Inputs: PWM 100-5,000 Hz or 0.5-4 V analog; defaults full-speed if signal is out of range :contentReference[oaicite:10]{index=10}
• Dimensions: approximately 6.8" x 4.3" x 2.3"; weight ~0.5-0.6 lbs :contentReference[oaicite:11]{index=11}
• Compatibility: 3-phase brushless EFI pumps without internal controller :contentReference[oaicite:12]{index=12}

Included Components

• 1x Fuelab 72004 Brushless Pump Controller
• 1x Wiring harness with terminals
• 1x Bulkhead feedthrough kit
• Mounting hardware and installation manual

Product Description

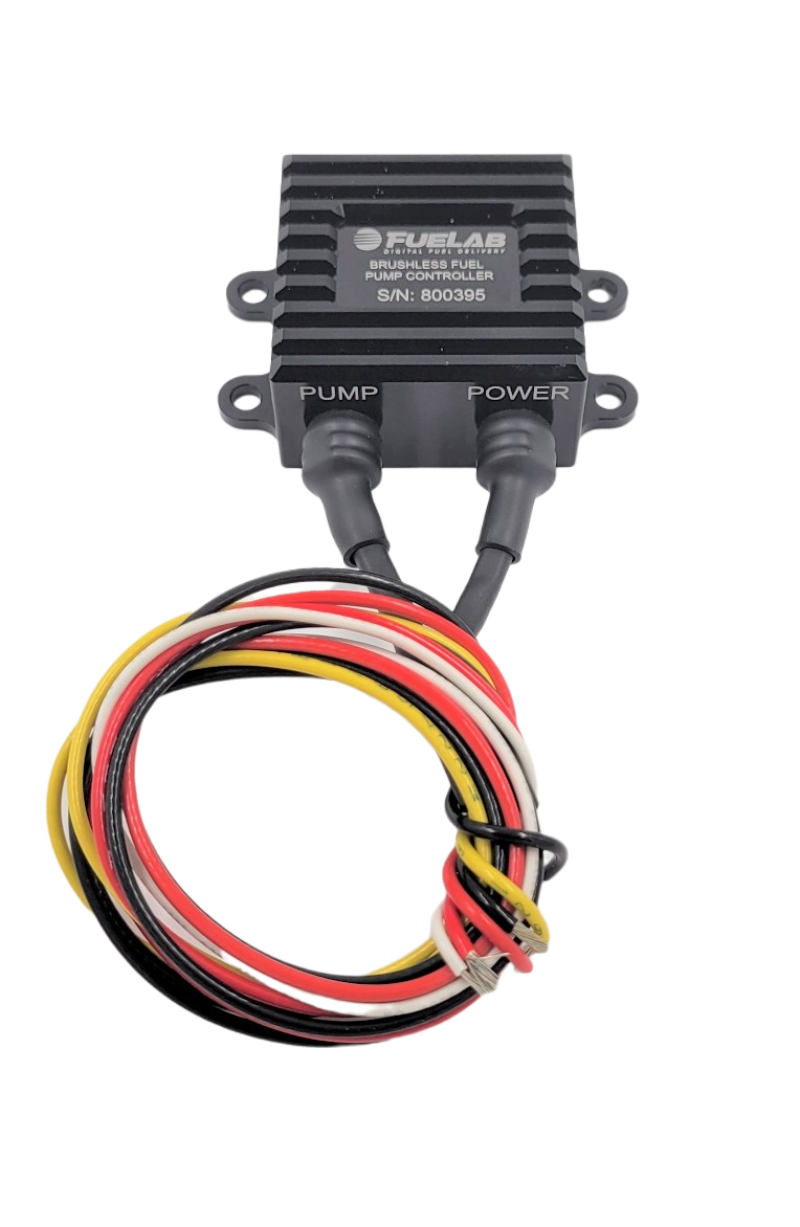

The Fuelab 72004 is a new (2024) externally mounted DC brushless fuel pump controller that replaces previous models 72001, 72002, and 72003. Housed in a durable billet aluminum case, it delivers up to 25 A of power, allowing precise speed control of 3-phase brushless EFI pumps that lack internal controllers. With support for PWM or 0-5 V analog input, it enables seamless integration with modern ECUs or standalone setups.

Operating across a wide voltage range (9.5-22 V), it provides reliable performance up to 16 V continuous. The controller features fail-safe full-speed operation if the control signal is disrupted, ensuring uninterrupted fuel delivery. Its compact design, bulkhead feedthrough option, and limited lifetime warranty make it a robust and versatile choice for street, strip, marine, or off-road builds requiring advanced fuel pump control.
