Fuelab 25314 500LPH In-Tank Brushless Fuel Pump Kit with 9mm Barb Outlet

Vehicle Fitment

• Universal fitment for EFI applications requiring high-flow fuel delivery

Features

• 500 liters per hour (LPH) fuel flow capacity at 45 PSI
• Brushless motor design for enhanced efficiency and longevity
• 9mm barb outlet and 6mm barb siphon for versatile fuel line connections
• Includes 72004 PWM brushless pump controller for precise fuel delivery
• Comes with 74101 3-wire hermetic bulkhead feed thru for secure wiring
• Pre-filter included to ensure clean fuel supply
• Wire lead harness with Weatherpak connectors for easy installation
• Limited lifetime warranty for peace of mind

Specifications

• Rated Flow Rate: 500 LPH at 45 PSI
• Maximum Pressure: 125 PSI
• Inlet/Outlet Port Size: 9mm barb outlet, 6mm barb siphon
• Power Supply: 13.5V DC
• Weight: Approximately 2.5 lbs
• Material: Plastic housing with metal components
• Warranty: Limited lifetime

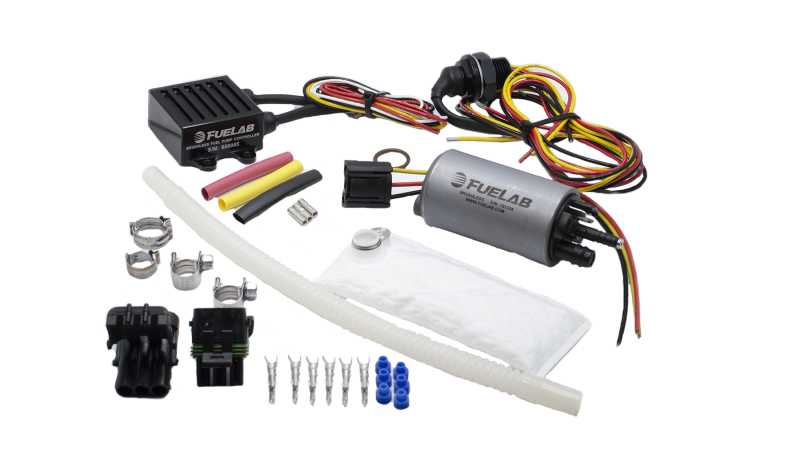

Included Components

• 1x 500LPH In-Tank Brushless Fuel Pump
• 1x 72004 PWM Brushless Pump Controller
• 1x 74101 3-Wire Hermetic Bulkhead Feed Thru
• 1x Pre-Filter
• 1x Wire Lead Harness
• 2x Weatherpak Connectors
• 1x Convoluted Tubing
• 1x Clamps
• 1x Butt Splices
• 1x Heat Shrink Tube
• All necessary mounting hardware and installation instructions

Product Description

The Fuelab 25314 500LPH In-Tank Brushless Fuel Pump Kit is engineered for high-performance EFI applications that demand reliable and efficient fuel delivery. With a robust 500 LPH flow rate at 45 PSI, this pump is suitable for supporting up to 1,000 horsepower in continuous operation.

Featuring a brushless motor design, the pump ensures minimal current draw while maintaining consistent fuel pressure. The included 72004 PWM controller allows for precise fuel delivery adjustments, accommodating various tuning needs. The 9mm barb outlet and 6mm barb siphon provide versatile fuel line connections, while the included pre-filter ensures that only clean fuel reaches your engine, protecting sensitive components from contaminants.

Constructed with a plastic housing and metal components, the pump is both lightweight and durable. The kit comes with all necessary components for installation, including mounting hardware and wiring, and is backed by a limited lifetime warranty for added assurance.
