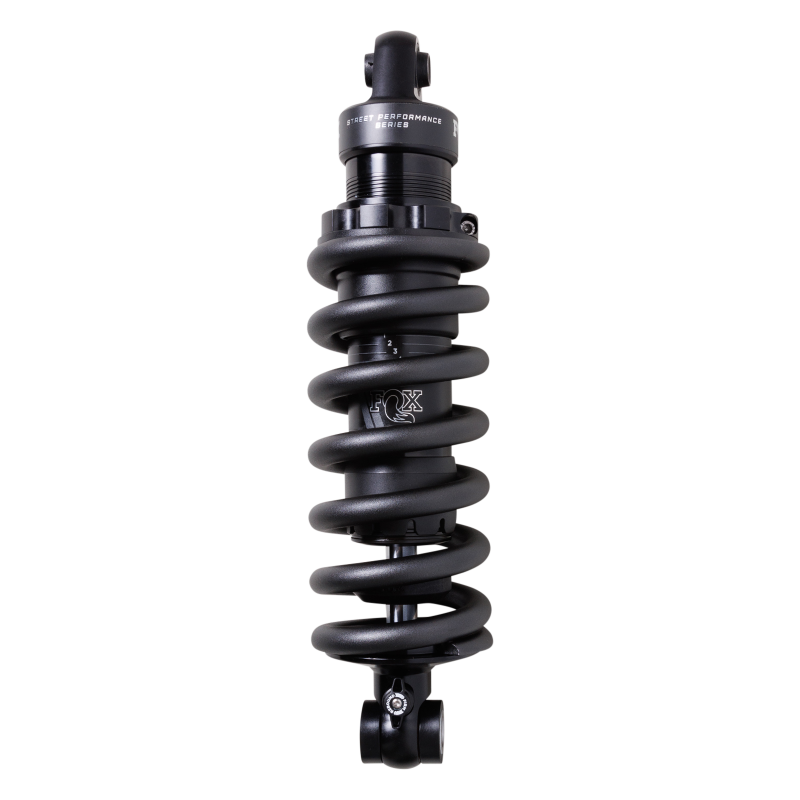

FOX 897-27-309 13.5" IFP-QSR Rear Shock for 2018-2026 Harley-Davidson Softail

Vehicle Fitment

• 2018-2026 Harley-Davidson Softail series (e.g. Fat Boy, Fat Bob, Heritage Classic, Low Rider, Breakout, Slim, Street Bob, etc. - check frame & eyelet mount geometry before installation)

Features

• Gas-charged mono-tube design with Internal Floating Piston (IFP) - ensures consistent damping and prevents cavitation over long rides
• 3-position Quick Switch Rebound (QSR) adjustment for tuning rebound stiffness per load or riding style (solo, two-up, luggage)
• 2.0" 6061-T6 aluminum Type III hard-anodized shock body - strong, lightweight, corrosion-resistant construction
• 5/8" super-finished hard-chrome shaft - low-friction, smooth suspension action and long service life
• Matte-black coil spring with preload-adjustable spring seat - allows ride-height and stiffness customization
• High-flow, deflective-disc, velocity-sensitive damping tuned for Softail geometry and ride dynamics
• Fully rebuildable and re-valveable - extends service life, supports future re-tuning and maintenance
• Extended 13.5" eye-to-eye length - raises rear ride height and increases suspension travel for improved handling and comfort

Specifications

• Mount type: Rear, top & bottom eyelet mounts (OEM-style)
• Extended (eye-to-eye) length: 13.50 inches
• Compressed length: 11.00 inches
• Shock travel (stroke): ≈ 2.5 inches
• Body diameter: 2.0 " (aluminum, anodized)
• Shaft: 5/8" hard-chrome, low-friction
• Spring: Preload-adjustable coil spring, matte-black finish
• Adjustments: Spring preload, 3-position QSR rebound adjuster
• Shock type: Gas-charged mono-tube with IFP + QSR rebound adjuster
• Units: Sold as pair (2 rear shocks - left & right)

Included Components

• 2x Rear shock assemblies (left and right)
• 1x Preload-adjuster (spanner) wrench
• Mounting spacers & flat washers as required
• Instruction sheet / user manual

Product Description

The FOX 897-27-309 rear shock set is a premium upgrade for 2018-2026 Harley-Davidson Softail motorcycles, delivering enhanced ride comfort, control, and stability. With a gas-charged mono-tube and Internal Floating Piston (IFP), the shock maintains consistent damping regardless of ride length or load - preventing fade and preserving smooth suspension action across miles. The 3-position Quick Switch Rebound (QSR) allows riders to fine-tune rebound behavior depending on conditions: softer for comfort on bumpy or urban roads, firmer for control under load or spirited riding, or balanced for everyday riding.

Constructed with a large-diameter anodized aluminum body and a low-friction hard-chrome shaft, the 897-27-309 keeps unsprung weight manageable while offering rugged durability for long-term use. The preload-adjustable coil spring with a 13.5" extended length raises the rear end - improving suspension travel, cornering stability, and ride comfort on rough roads or with extra load. Bolt-on installation using stock eyelet mounts makes it accessible for most Softail owners. Fully rebuildable and serviceable, this shock set is ideal for those wanting long-lasting performance, comfortable touring, and confident handling on a variety of road conditions.
