FOX 883-06-140 Front Coilovers for 17-18 Ford F-150 Raptor 0-2in Lift

Vehicle Fitment

• 2017-2018 Ford F-150 Raptor (3.5L V6 EcoBoost, 4WD, front, 0-2in lift)
• Fitment confirmed through 2018 from multiple trusted sources.
• Some retailer listings show later years, but broader 2019+ coverage was not consistently confirmed across two trusted sources, so it is not included here.

Features

• 3.0 Factory Race Series front coil-over reservoir shock pair
• Patented internal bypass damping technology
• Dual Speed Compression (DSC) adjusters for high- and low-speed tuning
• Recirculating finned remote reservoirs for improved heat dissipation
• Large 3.0in hard-anodized aluminum shock body
• Designed to improve off-road control and suspension consistency
• Adjustable ride height for leveled stance and added tire clearance
• Vehicle-specific front coilover configuration for Gen 2 Raptor
• Race-proven monotube performance design
• Pair configuration for left/right front installation

Specifications

• Position: Front
• Side: Left/Right
• Shock body size: 3.0in
• Reservoir type: Recirculating finned remote reservoir
• Adjustment: Dual Speed Compression (DSC)
• Lift range: 0-2in front
• Collapsed length: 21.180in
• Extended length: 29.080in
• Stroke: 7.900in
• Application: Ford F-150 Raptor front suspension

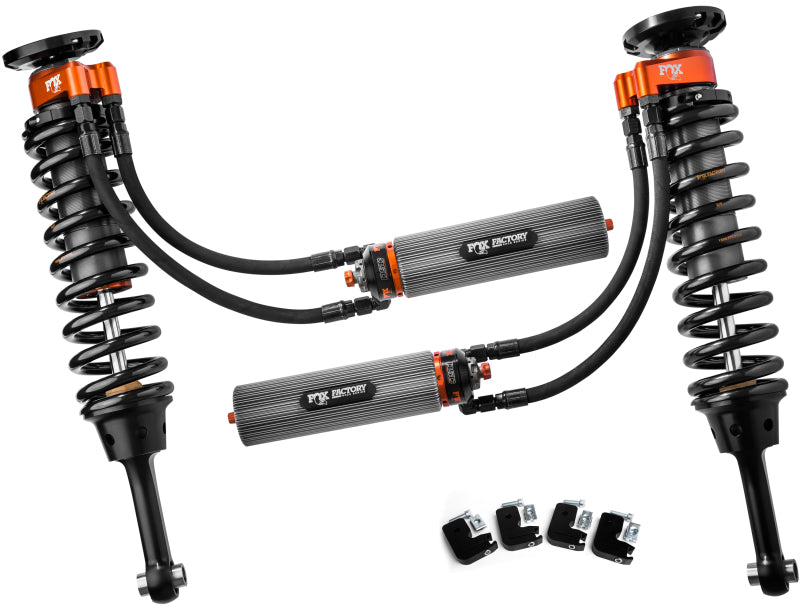

Included Components

• 2x Front coil-over reservoir shocks
• 2x Remote reservoir assemblies

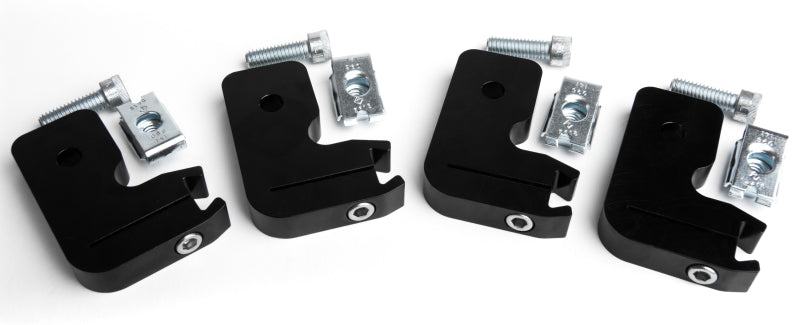

• 1x Installation hardware pack

Product Description

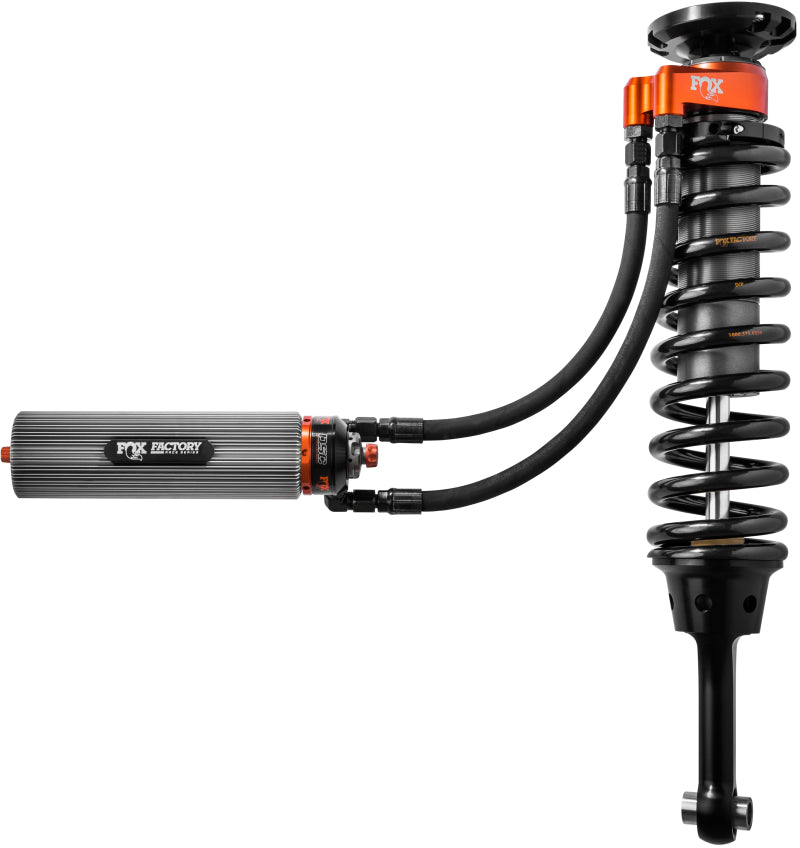

The FOX 883-06-140 is a 3.0 Factory Race Series internal bypass front coilover pair for the 2017-2018 Ford F-150 Raptor. It is built for drivers who want significantly improved damping control, better heat management, and more tuning capability than stock front suspension components provide. FOX's internal bypass design helps deliver a more controlled ride across rough terrain, while the recirculating finned remote reservoirs help maintain damping consistency during repeated hard impacts and high-speed off-road use.

This kit includes Dual Speed Compression adjusters, allowing separate tuning of compression behavior for different driving conditions, and it supports 0-2 inches of front lift. The lift figure applies to the front only; rear lift is not provided by this part number. Verified dimensional specs include a 21.180-inch collapsed length, 29.080-inch extended length, and 7.900-inch stroke. Trusted current sources consistently support 2017-2018 Ford F-150 Raptor fitment, while later-year coverage was not consistently confirmed across two trusted sources, so this listing is intentionally limited to 2017-2018.

This front coilover set is best suited for Raptor owners building a high-performance desert, trail, or overland setup and wanting more adjustability and control from the front suspension. It should not be assigned to non-Raptor F-150 models, because the application, suspension geometry, and tuning are vehicle-specific.
